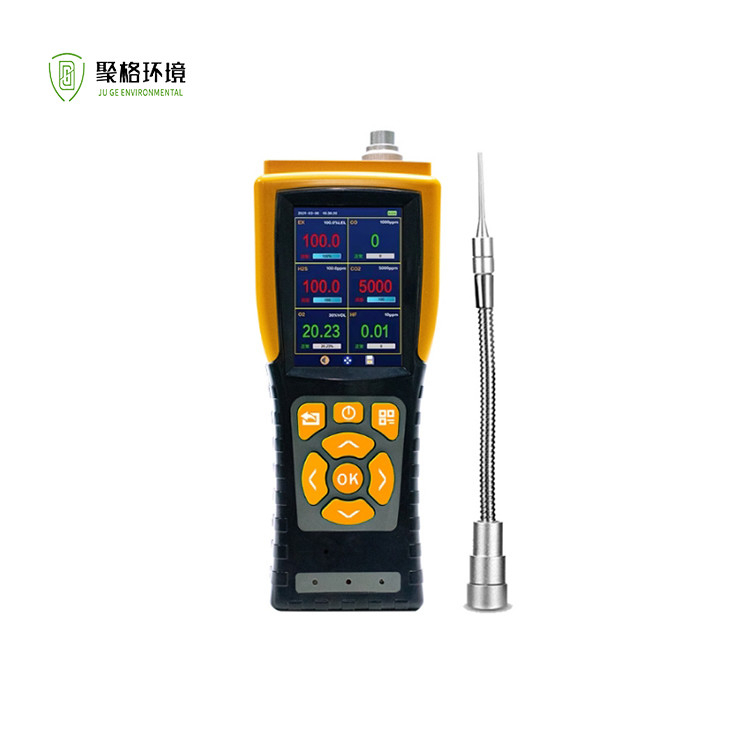

Splash Proof Portable Gas Detector with 5400mAh Battery and IP68 Protection for Multi Gas Detection
Splash Proof Portable Gas Detector with 5400mAh Battery and IP68 Protection for Multi Gas Detection
Specifications
Range :
0-100%LEL/PPM/%VOL
Payment Terms :
T/T,Online Order
Model Number :
AG600-BX
Certification :
IOS9001, CE
Place of Origin :
Nanjing, China
Detect Gas :
Ex O2 H2S CO, OEM
Supply Ability :
100 Unit/Week
Packaging Details :
Neutral carton
MOQ :
1 Unit
Brand Name :
JUGE
Price :
USD500-1000
Delivery Time :
10-15 working days
Name :
Portable Multi Gas Detector
Unit :
PPM, %LEL, %VOL, mg/m³
‌Detection Principle‌ :
Electrochemical, Infrared, PID etc..
Description
Pumping Portable Gas Detector Device OEM Multi Gas Ammonia CO2 Ex O2 H2S CO Splash Proof
Product Overview

The portable gas detector enables mobile detection of oxygen, combustible gases, and toxic/hazardous gases in the atmosphere. It can be flexibly configured with up to 6 different sensor types as needed, utilizing core detection technologies including electrochemical, infrared, catalytic combustion, thermal conductivity, PID (photoionization detection), and other principles. The device integrates imported sensors with high-speed, high-precision processing circuits, offering excellent signal stability, high detection accuracy, and superior data repeatability.

Widely applicable across industries including petroleum and petrochemicals, metallurgy, environmental monitoring, gas safety, fire rescue, municipal engineering, chemical production, marine operations, power systems, process control, wastewater treatment, and emergency response monitoring.

Key Features
  • Splash-proof, dust-proof, explosion-proof, shock-resistant, anti-static, and electromagnetic interference-resistant
  • Protection Class IP68 with built-in moisture and dust filters
  • Built-in pump suction measurement for rapid response without affecting results
  • 3.8-inch high-definition color screen display
  • Large-capacity data storage
  • Upload data to computer via USB for analysis, storage, and printing
  • USB charging port compatible with computers, power banks, and phone chargers
  • Short-circuit and overheating protection, 5-level precise battery indicator, supports USB hot-swapping
  • Equipped with 5400mAh high-capacity rechargeable polymer battery
  • Simultaneous detection of 1-6 gases with freely switchable units
  • Three display modes switchable
  • Data recovery function (selective or full restoration)
  • Three-level target point calibration ensures linearity and accuracy
  • Automatic recognition and blocking of calibration errors
  • Real-time or timed detection modes
  • Records calibration logs, maintenance logs, and troubleshooting solutions
Technical Specifications
Parameter Specification
Detection Gases Ammonia, Carbon Dioxide, Combustible Gas, Oxygen, Hydrogen Sulfide, Carbon Monoxide
Detection Range 0-10, 0-100, 0-1000 (PPM/%LEL/%VOL, selectable)
Resolution 0.001, 0.01, 0.1, 1
Detection Method Built-in pump suction type, flow rate 500 mL/min
Display 3.8-inch HD color screen with 8-button operation
Detection Accuracy ≤±2% (F.S)
Linearity ≤±2%
Repeatability ≤±2%
Alarm Methods Audible & visual alarm, vibration alarm, or combined modes
Response Time T90 ≤ 20 seconds
Recovery Time ≤30 seconds
Power Supply DC 3.6V
Battery Capacity 3.6VDC, 5400mAh high-capacity rechargeable polymer battery
Operating Environment -40℃ to +70℃ (upgradable to -40℃~+120℃ with optional high-temperature sampling cooling filter handle)
Gas Temperature -40℃ to +70℃
Temperature Measurement -40℃~+120℃ (optional), accuracy ±0.5℃
Humidity Measurement 0-100% RH (optional), accuracy ±3% RH
Data Storage Standard 100,000 entries, supports on-device viewing, deletion, or data export
Communication Interface USB (charging & data transfer)
Language Chinese/English
Explosion-proof Rating Intrinsically safe type
Protection Level IP68 (dustproof & waterproof)
Dimensions 225*88*58mm (L*W*H)
Weight 475g
Standard Accessories User manual, certificate, warranty card, USB charger (with cable), high-grade aluminum alloy instrument case
Commonly Detected Gas Types
NO Detection Range Accuracy T90 Response Time Resolution Alarm Set Point (Low/High)
1 PH3 0 - 5 ppm ±5% (F.S) ≤ 25 s 0.01 ppm 0.3 ppm/5 ppm
2 O2 0-30%Vol ±5% (F.S) ≤ 15 s 0.10% Vol 18.0%Vol/23.0%Vol
3 EX 0-100% LEL ±5% (F.S) ≤ 15 s 1% LEL 25.0%/50.0% LEL
4 CO 0 - 2000 ppm ±5% (F.S) ≤ 25 s 1 ppm 50 ppm/100 ppm
5 H2S 0 -100 ppm ±5% (F.S) ≤ 30 s 1 ppm 10 ppm/20 ppm
6 SO2 0 - 100 ppm ±5% (F.S) ≤ 30 s 0.1 ppm 2 ppm /10 ppm
7 CI2 0 - 20 ppm ±5% (F.S) ≤ 30 s 0.1 ppm 1 ppm /10 ppm
8 NH3 0 - 200 ppm ±5% (F.S) ≤ 50 s 1 ppm 25 ppm /50 ppm
9 NO2 0 - 20 ppm ±5% (F.S) ≤ 25 s 0.1 ppm 3 ppm/10 ppm
10 NO 0 - 250 ppm ±5% (F.S) ≤ 60 s 1 ppm 25 ppm/50 ppm
11 H2 0 - 1000 ppm ±5% (F.S) ≤ 60 s 1 ppm 50 ppm /100 ppm
12 HCN 0 - 50 ppm ±5% (F.S) ≤ 200 s 0.1 ppm 10 ppm /20 ppm
13 HCL 0 - 20 ppm ±5% (F.S) ≤ 60 s 0.1 ppm 5 ppm /10 ppm
14 CH4 0 - 5% Vol ±5% (F.S) ≤ 60 s 0.1% Vol customized
15 CO2 0 - 5% Vol (0-5000ppm) ±5% (F.S) ≤ 60 s 0.01% Vol (1 ppm) customized
16 PID(VOCs) 1-1999 ppm ±5% (F.S) ≤ 20 s 0.1 ppm customized
17 C3H8 0 - 5%Vol ±5% (F.S) ≤ 60s 0.01% Vol customize
18 O3 0 - 5 ppm ±5% (F.S) ≤ 30s 0.02 ppm 1ppm/2 ppm
19 SF6 0 - 1000 ppm ±5% (F.S) ≤ 60s 0.2ppm 25ppm/50 ppm
20 HF 0 - 10 ppm ±5% (F.S) ≤ 60s 0.1ppm 3ppm/10 ppm
Customized alarm setting points and detection ranges are also available.
