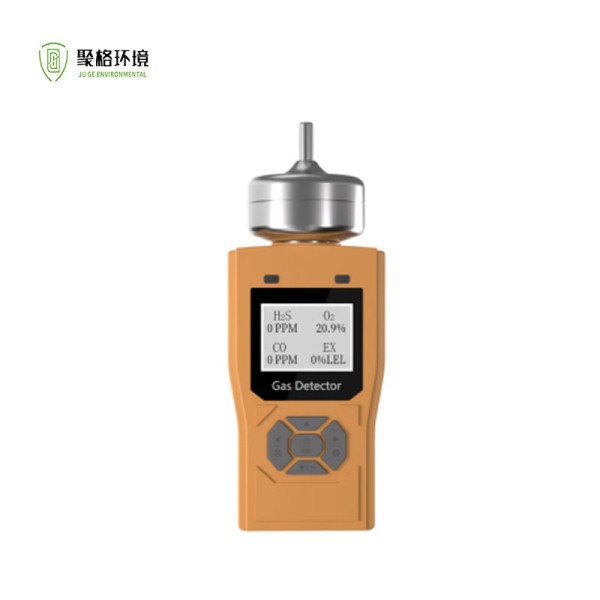

Pump Suction Portable Gas Detector with LCD Dot-Matrix Display and 3000mAh Lithium Battery for Multi Gas Detection
Pump Suction Portable Gas Detector with LCD Dot-Matrix Display and 3000mAh Lithium Battery for Multi Gas Detection
Specifications
Place of Origin :
Nanjing, China
CO range :
0-1000PPM
Price :
USD250
Display Error :
≤ ±5%F.S
MOQ :
1 Unit
Supply Ability :
10000 Unit/Week
Certification :
IOS9001, CE
EX range :
0-100%LEL
Display Method :
LCD dot-matrix liquid crystal display
Model Number :
AG600-BX-400
Delivery Time :
1-5 working days
Packaging Details :
Neutral carton
Payment Terms :
T/T,Online Order
Brand Name :
JUGE
O2 range :
0-30%VOL
H2S range :
0-100PPM
Name :
Portable Multi Gas Detector
Description
Pump Suction 4-in-1 Gas Detector Portable Multi EX/O2/CO/H2S Gas Detector
Overview

This safety instrument is designed for continuous use in detecting the concentration of leaking gases. Utilizing advanced integrated circuit technology, embedded microprocessor chip control, and a built-in high-resolution ADC dedicated chip, this detector provides faster calculation speeds for more accurate and stable test data.

The detector features an LCD dot-matrix screen with Chinese/English interface and voice prompts for easy user familiarization. Operation and maintenance are simple, with Type-C charging interface, built-in 3000mAh high-capacity lithium battery, micro vacuum pump, and high-quality imported gas sensors that deliver excellent sensitivity and outstanding repeatability.

With fast response speed, strong anti-interference ability, and stable, reliable performance at the leading domestic level, this detector is widely applicable in locations requiring detection of flammable, explosive, toxic, and hazardous gases across various industries including metallurgy, petroleum, chemical engineering, mining, coking, municipal services, environmental protection, electric power, shipping, and wastewater treatment.

Standard Gas Parameters
Type Range Low Alarm High Alarm Resolution
EX 0-100%LEL 20%LEL 50%LEL 1%LEL
O2 0-30%VOL 19.5%VOL 23.5%VOL 0.1%VOL
H2S 0-100PPM 10PPM 35PPM 1PPM
CO 0-1000PPM 50PPM 150PPM 1PPM
Note: The default configuration is a 4-in-1 gas combination. Please contact the company for other gas combinations.
Detector Parameters
Detection Principle Catalytic combustion, Electrochemical, Infrared, PID (Determined by instrument's sensor configuration)
Display Error ≤±5%F.S
Response Time ≤30S
Display Method LCD dot-matrix liquid crystal display
Detection Method Pump suction / Diffusion type
Alarm Method Voice alarm, vibration alarm, light alarm
Product Material ABS
Operating Temperature -10℃ ~ +55℃ (Optional high-temperature sampling cooling filter handle available)
Operating Humidity 10~95% RH (Non-condensing)
Operating Voltage DC 3.7V
Operating Pressure 86~106KPa
Weight 250g
Size 185mm×75mm×35mm
Applicable Standards GB 15322.3-2019, GB 12358-2006, GB 3836.1-2010, GB 3836.2-2010, GB 3836.4-2010, JJG 693-2011, JJG 695-2003, JJG 915-2008 (Applicable standards vary depending on the instrument model)
