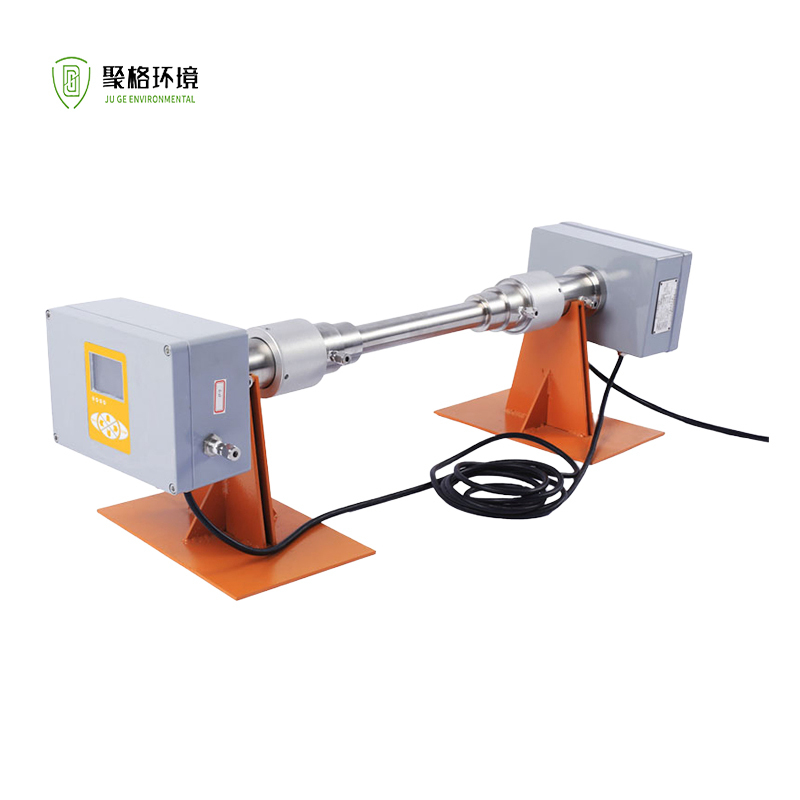

Fast Response TDLAS Gas Analyzer with Tunable Laser Absorption Spectroscopy and Ex d IIC T6 Explosion-proof for O2 CO NH3 CO2 Monitoring
Fast Response TDLAS Gas Analyzer with Tunable Laser Absorption Spectroscopy and Ex d IIC T6 Explosion-proof for O2 CO NH3 CO2 Monitoring
Specifications
Price :
USD2000-10000
Product name :
Laser Gas Analyzer
MOQ :
1 Unit
Warming-up time :
≤15 min
Delivery Time :
10-15 working days
Explosion-proof Grade :
Ex d IIC T6
Certification :
IOS9001, CE
Brand Name :
JUGE
Model Number :
AG-TDL07
linearity error :
≤±1%F.S.
Place of Origin :
Nanjing, China
Span drift :
≤±1%F.S./6 months
Payment Terms :
T/T,Online Order
Supply Ability :
100 Unit/Week
Repeatability :
≤1%F.S.
Packaging Details :
Neutral carton
Principle :
Tunable Laser Absorption Spectroscopy(TDLAS)
Description
Fast Response Laser Gas Analyzer for O2 Co Nh3 CO2 Gas Monitoring and Analysis
Overview

The AG-TDL07 Laser Gas Analyzer is developed for industrial on-line analyzing and online environmental monitoring. Based on semiconductor laser absorption spectroscopy (DLAS) technology, it features an integrated design with high level of integration.

Available in various configurations including in-situ probing type, by-pass type, multi-channel and disc-mounted type, the analyzer can measure gases such as O2, CO, NH3, CO2, CH4, H2O, HC, HF, and others. It supports both macro-analysis and micro-analysis concentration measurements of target gases.

Features
  • Utilizes DLAS technology for in-situ online gas analysis
  • Double proof probe design without positive pressure purge, no additional data processing unit, simple compact structure with high reliability
  • Uses high-power lasers without fiber coupling, suitable for harsh working conditions (such as excessive dust environments)
  • Incorporates patented spot light path adjustment technology for easy on-site installation
Main Process Line
Fast Response TDLAS Gas Analyzer with Tunable Laser Absorption Spectroscopy and Ex d IIC T6 Explosion-proof for O2 CO NH3 CO2 Monitoring
Technical Parameters
Measurement Principle Tunable Laser Absorption Spectroscopy (TDLAS)
Linearity Error ≤±1% F.S.
Span Drift ≤±1% F.S./6 months
Repeatability ≤1% F.S.
Calibration Period ≤1 time/6 month
Explosion-proof Grade Ex d IIC T6
Protection Levels IP65
Warming-up Time ≤15 min
Response Time (T90) ≤1s
Analog Outputs 2-wire 4-20mA signal output (Isolated, maximum load 750Ω)
Analog Inputs 2-way 4-20mA input (temperature-pressure compensation)
Digital Outputs RS485/RS232/GPRS/Bluetooth
Relay Output 3-wire relay (24V, 1A)
Ambient Temperature -30ºC to +60ºC
Gas Jet 0.3-0.8MPa Industrial nitrogen inlet and purification instrument gases etc.
Power 220VAC, power based on specific configuration
Installation Method Sampling probe mounted in the flue/pipe, system installed nearby
Gas Detection Limits
Detection Gas Type Detection Limit Detection Range
O2 0.01% Vol. (0-1)% Vol., (0-100)% Vol.
CO2 10 ppm (0-1000) ppm, (0-100)% Vol.
H2S 20 ppm (0-2000) ppm, (0-100)% Vol.
HCl 0.1 ppm (0-50) ppm, (0-100)% Vol.
NH3 0.1 ppm (0-10) ppm, (0-100)% Vol.
C2H2 0.1 ppm (0-10) ppm, (0-100)% Vol.
CO 10 ppm (0-1000) ppm, (0-100)% Vol.
H2O 0.3 ppm (0-50) ppm, (0-100)% Vol.
HF 0.02 ppm (0-5) ppm, (0-10000) ppm
HCN 0.3 ppm (0-30) ppm, (0-1)% Vol.
CH4 0.4 ppm (0-40) ppm, (0-100)% Vol.
C2H4 0.6 ppm (0-60) ppm, (0-100)% Vol.
Remark 1: The test conditions for 1m optical path, gas pressure 1bar, gas temperature 300K
Remark 2: By increasing the optical path, proportionally lower detection limit
