Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Specifications
Place of Origin :
China
MOQ :
5
Price :
$7.90-21.90
Material :
100% pure tungsten carbide powder
Shape :
Cylindrical
Surface :
Glossy
Color :
Black
Grade :
YG8/YG9C/YG11C
Density :
14.90 g/cm³
Hardness :
93.0 HRA
TRS :
2700 Mpa
Porosity :
A02/B00/C00
Grain size :
0.6-0.8 μm
Outer Diameter :
16.41 mm
Inner Diameter :
14.05 mm
Pore Diameter :
12.70 mm
Length :
25.40 mm
Step Length :
1.00 mm
Description
Products Description
Product Paramenters


Grade

Composition(% in weight)
Physical Properties

Grain size(μm)
Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity
WC
Ni
Ti
TaC
A/B/C
KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
13.0
-
-
14.10
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.00
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.50
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.10
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
12.60
92.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.70
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
13.25
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
12.33
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Specification
OD(D:mm)
ID(D1:mm)
Pore(d:mm)
Length(L;mm)
Step length(L1:mm)
01
16.41
14.05
12.70
25.40
1.00
02
16.41
14.05
12.70
31.75
1.00
03
22.04
18.86
15.75
31.75
3.18
04
22.04
18.86
15.75
50.80
3.18
05
16.00
13.90
10.31
76.20
3.18
06
22.00
18.88
14.30
25.40
3.18
07
24.00
21.00
16.00
75.00
3.00
08
22.90
21.00
15.00
75.00
3.00
09
19.50
16.90
12.70
50.00
4.00
10
36.80
32.80
26.00
55.00
4.00

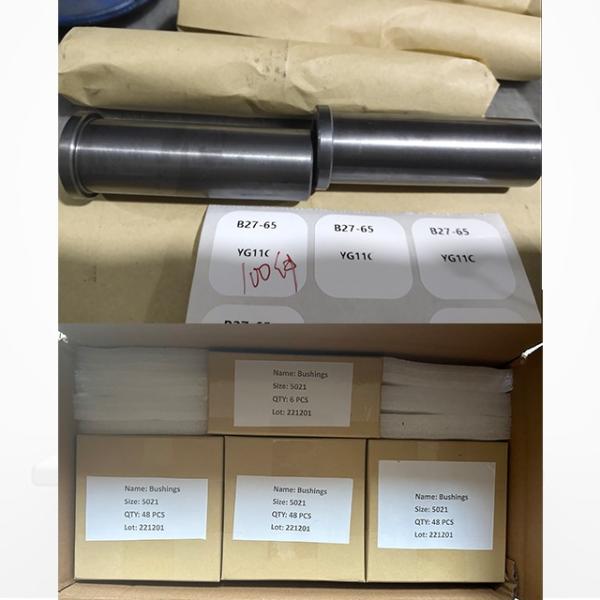

Details Images
Why Choose Us
Company Profile
Exhibition
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
