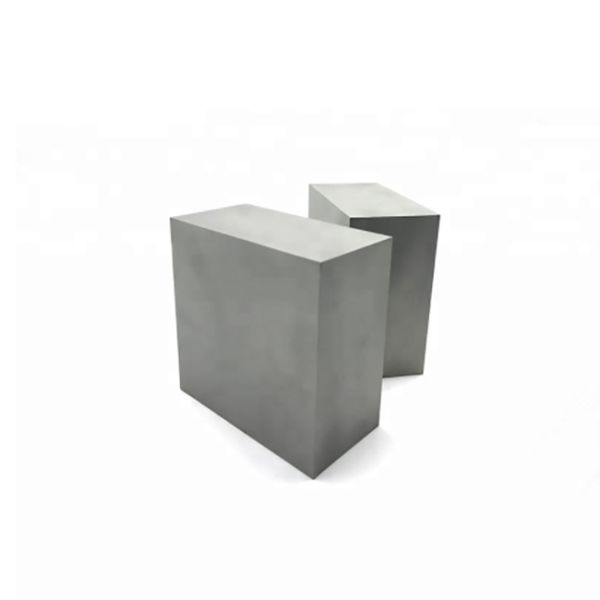

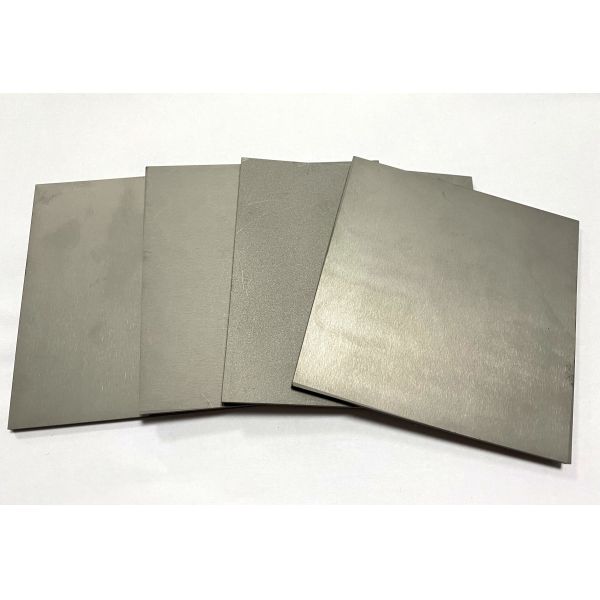

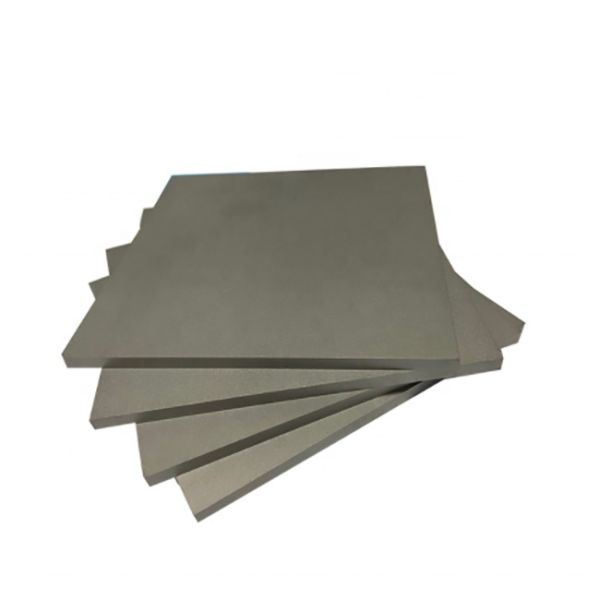

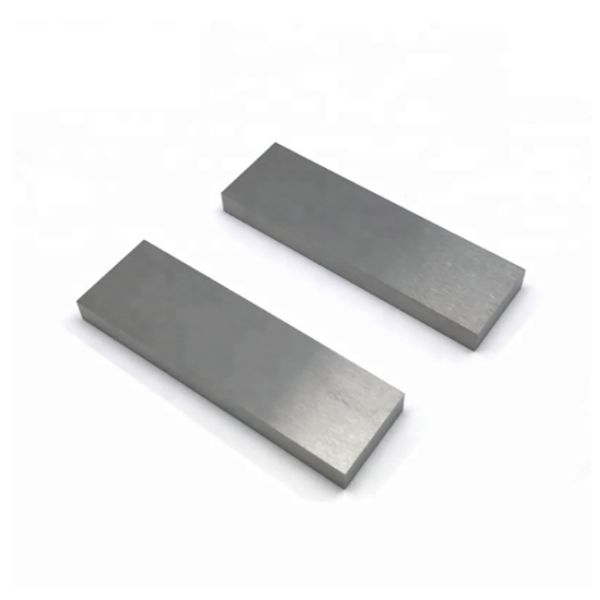

Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Specifications
Place of Origin :
China
MOQ :
5
Price :
$20-25
Material Composition :
Tungsten carbide and cobalt
Surface Finish :
Glossy
Alloy Specification :
YG8, YG6, YG6X, YG9C, YG11C, YG13C
Density Range :
12.10-14.90 g/cm³
Hardness Range :
86.5-93.6 HRA
TRS Range :
2000-3800 Mpa
Porosity Grade :
A02/B00/C00
Grain Size :
0.4-2.4 μm
WC Content :
69.2-94.0%
Ni Content :
6.0-15.0%
Ti Content :
0-7.4%
TaC Content :
0-13.8%
Shape :
Plates
Customizable Size :
Yes
Minimum Order :
5 pieces
Description
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Products Description
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Product Paramenters
Customized Size Tungsten Carbide Plate with High Temperature Resistance and YG8 YG9C Alloy Specification for Secondary Processing
Grade

Composition(% in weight)
Physical Properties
Grain size(μm)
Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity
WC
Ni
Ti
TaC
A/B/C
KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
13.0
-
-
14.20
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.10
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.00
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.50
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
14.10
420092.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.60
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
12.70
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
13.25
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample
