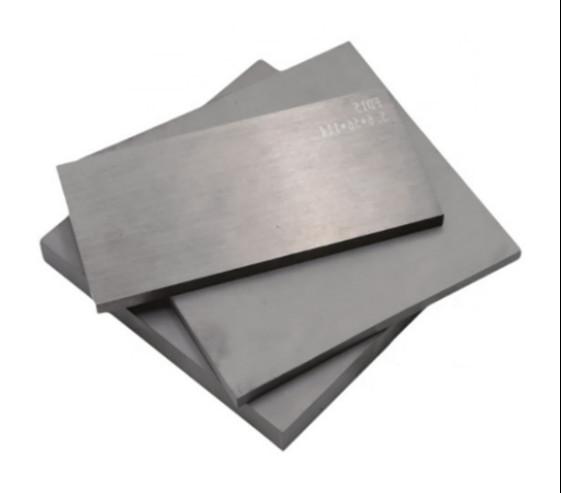

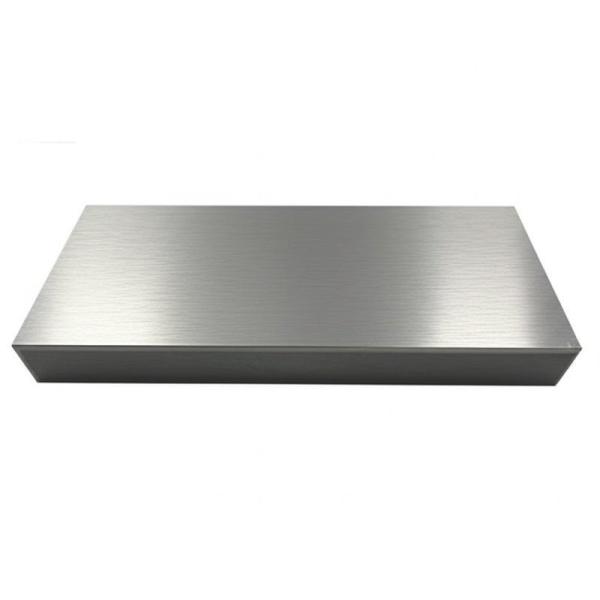

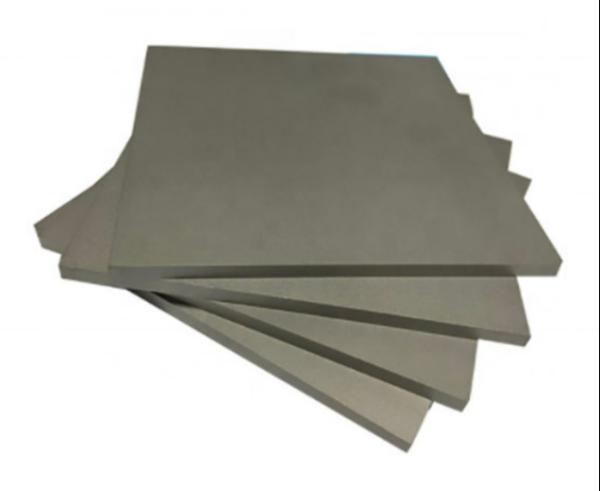

YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
YG8 Tungsten Carbide Plate 50x50x10mm for Metal Cutting
Specifications
Brand Name :
Kedel
Model Number :
KD-1101
Certification :
ISO9001:2015, SGS
Place of Origin :
Sichuan, China
MOQ :
5 piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
50+tons+per month
Delivery Time :
15-20 days
Packaging Details :
Cartons
Material :
100% Virgin Tungsten Carbide
Application :
Planer cutting tool / pliner plates / metal working / stone working,Mining
Name :
Tungsten Carbide Plate
Grade :
YG8 YG6 YG10X YN6 YN8 YN9, etc,
Model :
KD-1101
Description
Customizing Tungsten Carbide Material Cemented Carbide Plates
Information
Product Name OEM&ODM YG8 YG10 YG15 tungsten carbide plate
Status stress release,HIP treated
Product status nickel white,tungsten black
Standard OEM
Grade K10/K20 as per request
Specification customized
Surface treatment blank,ground,polished&as requirement
Feature Hard hardness,wear resistance,corrosion resistance,toughness,shock resistance
Main Features
  • Stable performance: Test pieces before mass production to ensure the stable performance of carbide flat parts.
  • Small subsidy: Small subsidy helps to control our production cost and reduce your import cost.
  • Various grades and sizes: With our CNC machining system, even for rectangular carbide blanks of 1 PC is feasible.
Dimension

These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.

Sr.No Length(mm) Width(mm) Thickness(mm) Sr.No Length(mm) Width(mm) Thickness(mm)
1 50 50 2-40 11 250 250 2-200
2 70 70 2-50 12 300 300 2-200
3 100 100 2-70 13 70 50 2-40
4 102 102 2-70 14 110 80 2-50
5 105 105 2-70 15 125 72 2-50
6 125 125 2-80 16 150 60 2-50
7 120 120 2-80 17 155 60 2-50
8 150 150 2-100 18 150 100 2-80
9 180 180 2-150 19 200 100 2-80
10 200 200 2-150 20 300 200 2-80
Quality Grades

Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information please contact us through email.
