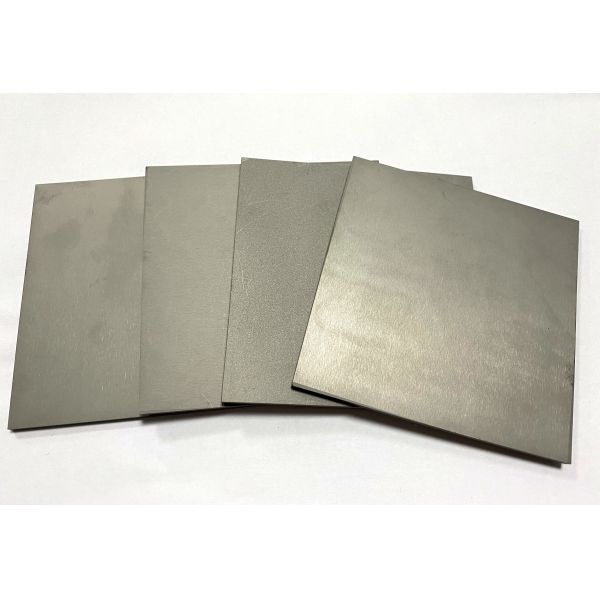

Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Specifications
Place of Origin :
China
MOQ :
5
Price :
$8-12
Material Composition :
Tungsten carbide and cobalt
Alloy Specification :
YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish :
Glossy
Shape :
Plates
Density Range :
12.00-14.90 g/cm³
Hardness Range :
86.5-93.6 HRA
TRS Range :
2000-3800 Mpa
Porosity Grade :
A02/B00/C00
Grain Size :
0.4-2.4 μm
WC Content :
69.2-94.0%
Ni Content :
6.0-15.0%
Ti Content :
0-7.4%
TaC Content :
0-13.8%
Customizable Size :
Yes
Minimum Order :
5 pieces
Description
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Products Description
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Product Paramenters
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Grade

Composition(% in weight)



Physical Properties



Grain size(μm)





Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity


WC
Ni
Ti
TaC



A/B/C

KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
13.0
-
-
14.20
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.10
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.00
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.50
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
14.10
420092.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.60
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
12.70
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
13.25
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Details Images
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Why Choose Us
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds

Company Profile
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Exhibition
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
Customized Tungsten Carbide Plate and Sheet with High Hardness Impact Resistance and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification for Punching Molds
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
