Specifications
Model Number :
VCMT
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$1.50-1.60
Coating :
PVD
Hardness :
HRA90
Material :
Tungsten Carbide
HRC :
45HRC, 55HRC, 60HRC, 65HRC
Model :
VCMT
Angle V :
35°
Angle C :
7°
Tolerance M :
±0.08-±0.18
Chip Breaker :
single-sided groove
Diameter ϕd :
3.18mm, 4.76mm
Radius r :
0.2mm, 0.4mm, 0.8mm
MOQ :
10 Pieces
Coating Type :
PVD and CVD
Workpiece Material :
stainless steel and steel
Usage :
External Turning Tool
Description
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting

Automated processing

CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting

High stability

This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby further enhancing the quality of the machining process.
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting

Wide application fields

CNC tool inserts are suited for industries demanding high precision and efficiency, including machinery manufacturing, aerospace,
electronics, and more.
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting

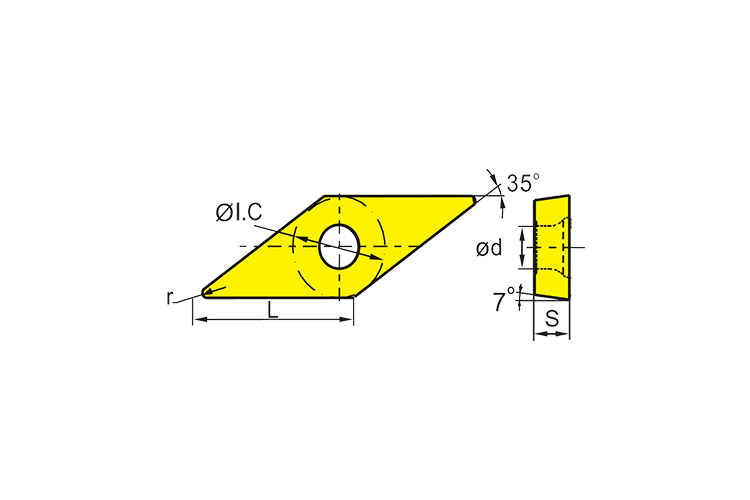

VCMT
Value
V
35°
C
7°
M
±0.08-±0.18
T
holes
single-sided chip breaker groove
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Type
Dimensions(mm)
S
ϕd
r
VCMT110302-OTF
3.18
2.8
0.2
VCMT110304-OTF
3.18
2.8
0.4
VCMT160404-OTF
4.76
4.4
0.4
VCMT160404-OTM
4.76
4.4
0.4
VCMT160408-OTM
4.76
4.4
0.8
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
Precision Designed VCMT CNC Insert with 35° Angle V and 7° Angle C for High Temperature Alloy Cutting
