Specifications
Model Number :
WPGT
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$1.99-3.14
Coating :
PVD
Hardness :
HRA90
Material :
Tungsten Carbide
HRC :
45HRC, 55HRC, 60HRC, 65HRC
Model :
WPGT
Coating color :
PVD and CVD
Angle W :
80°
Angle P :
11°
Tolerance G :
±0.025
Chip breaker :
single-sided groove
Diameter ΦI#C :
9.525mm, 12.85mm
Thickness S :
4.2mm, 6.35mm
Hole diameter Φd :
4.4mm, 5.5mm
Corner radius R :
1.5mm
Angle α° :
11°
Description
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

Automated processing

CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

High stability

This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby further enhancing the quality of the machining process.
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

Wide application fields

CNC tool inserts are suited for industries demanding high precision and efficiency, including machinery manufacturing, aerospace,
electronics, and more.
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining
WPGT
Value
W
80°
P
11°
G
±0.025
T
holes
single-sided chip breaker groove
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

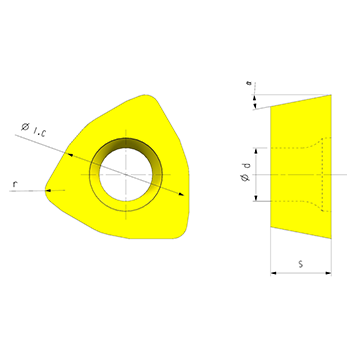

Type
Dimensions(mm)
ΦI#C
S
Φd
R
α°
WPGT060415-ZSR
9.525
4.2
4.4
1.5
11°
WPGT080615-ZSR
12.85
6.35
5.5
1.5
11°
