Specifications
Model Number :
DCMT
Brand Name :
Kedel
Place of Origin :
Sichuan, China
MOQ :
10
Price :
$1.22-1.93
Coating :
PVD
Hardness :
HRA90
Material :
Tungsten Carbide
Model :
DCMT
Angle D :
55°
Angle C :
7°
Tolerance M :
±0.08-±0.18
Chip Breaker :
Single-sided groove
Dimension S :
2.38mm, 3.97mm
Diameter ϕd :
2.8mm, 4.4mm
Radius r :
0.2mm, 0.4mm, 0.8mm
HRC Range :
45HRC, 55HRC, 60HRC, 65HRC
Workpiece Material :
Stainless steel, steel
Minimum Order :
10 Pieces
Coating Types :
PVD, CVD
Description
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining

Automated processing

CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining

High stability

This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby further enhancing the quality of the machining process.
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining

Wide application fields

CNC tool inserts are suited for industries demanding high precision and efficiency, including machinery manufacturing, aerospace,
electronics, and more.
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining

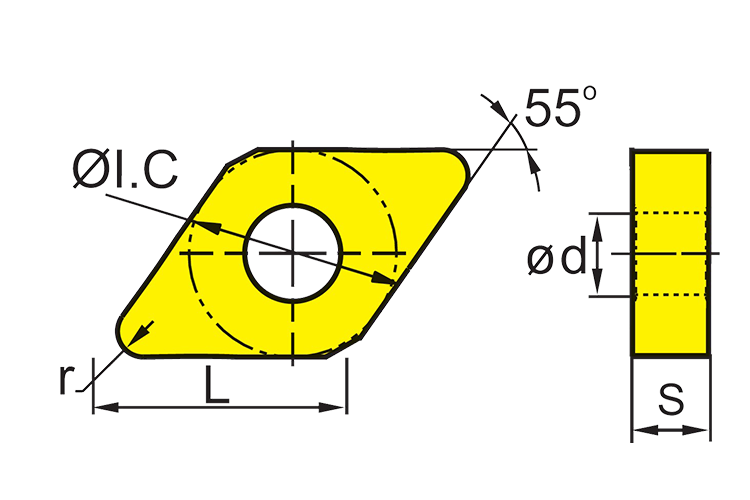

DCMT
Value
D
55°
C
7°
M
±0.08-±0.18
T
holes
single-sided chip breaker groove
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining
High Performance Precision Ground DCMT CNC Insert with 55° Angle D and 7° Angle C for Metal & Non-Metal Machining

Type
Dimensions(mm)
S
ϕd
r
DCMT070204-OTF
2.38
2.8
0.4
DCMT11T302-OTF
3.97
4.4
0.2
DCMT11T304-OTF
3.97
4.4
0.4
DCMT070204-OTM
2.38
2.8
0.4
DCMT070208-OTM
2.38
2.8
0.8
DCMT11T304-OTM
3.97
4.4
0.4
DCMT11T308-OTM
3.97
4.4
0.8
DCMT11T304-OTR
3.97
4.4
0.4
DCMT11T308-OTR
3.97
4.4
0.8
