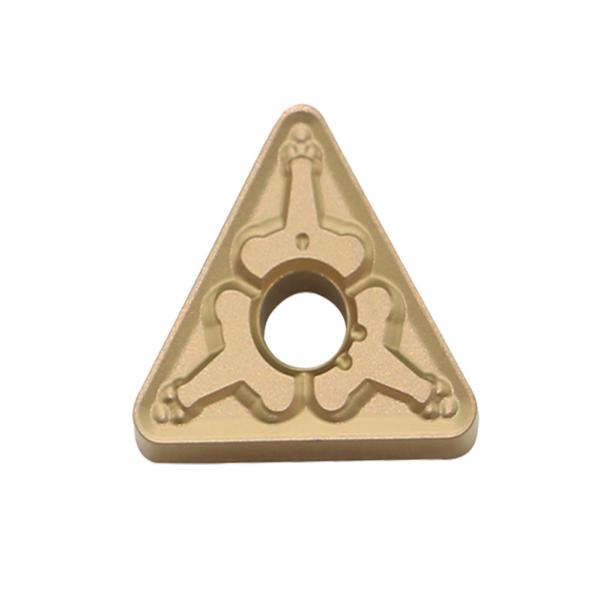

TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Specifications
Brand Name :
Kedel
Model Number :
TNMG160404
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
10 Pieces/ box
Price :
$1.2-3.5/PCS
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
10000 pcs per months
Delivery Time :
5-7 days
Packaging Details :
box +carton
Product name :
Carbide Turning Inserts
Coating :
CVD/PVD/TIAN /TLIAN /TIN etc,
Usage :
External Turning Tool
Material :
100% Virgin Raw Material
Hardness :
92HRC
Color :
Gray/golden/black
Grade :
K10-K30
Package :
10pcs/plastic Box
Workpiece :
Steel\ Stainless\ Cast Iron
Feature :
good wear resistance
Description
Metal TNMG 160404 Turning Tool And Tungsten Carbide Inserts For Lathe

Cemented carbide CNC T-series turning inserts are commonly used in mechanical lathe processing. They have the characteristics of sharp blade, smooth chip breaking, wear resistance and durability. They can be used for the processing of steel parts, stainless steel, cast iron, aluminum alloy and other materials. They are not easy to stick the knife,and have a long service life.

Good Features:
  1. High wear-resistant, good smoothness;
  2. Fine coating, easy to slotted;
  3. Excellent performance, nanometer coating;
  4. Sharp blade, smooth cutting;
  5. Steel material, easy handle.
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Model TNMG160404/08/12 TNMG2204/08/12 TNMG270612
Grade KD2115,KD2125,KD3215
Wordpiece steel/harded steel/stainless steel/cast iron
Coating CVD/PVD coating
MOQ 10 PCS
Package 10 pcs in one box
Service OEM/ODM
Recommended material as below:
Grade ISO Code Density
g/cm³		 Hardness
HRA		 T.R.S
MPa		 Applications recommended
YG3 K05 15.10 92.0 1400 Suitable for finishing of cast iron and nonferrous metal.
YG6X K10 14.95 91.5 1800 The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.
YG6 K15 14.95 90.5 1900 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG8 K20 14.80 89.5 2200
YW1 M10 13.10 91.6 1600 Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel.
YW2 M20 13.00 90.6 1800 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.
YT15 P10 11.4 91.5 1600 Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed.
YT14 P20 11.6 90.8 1700 Suitable for the finishing and semi-finishing of steel and cast steel.
YT5 P30 12.9 90.5 2200 Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Sizes for your reference:
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Production Facility
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Quality Control
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Product Exhibition
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
TNMG160404 Carbide Turning Inserts 10pcs Box 92HRC Hardness
Frequently Asked Questions
Are you trading company or manufacturer?

We are manufacturer.

Do you make customized products?

Yes, we often make customized products.

Do you provide free samples?

We can provide free samples, but do not pay freight cost.

How long is your delivery time?

Generally 1-5 days if we have stock, 30 days if the product is customized.
