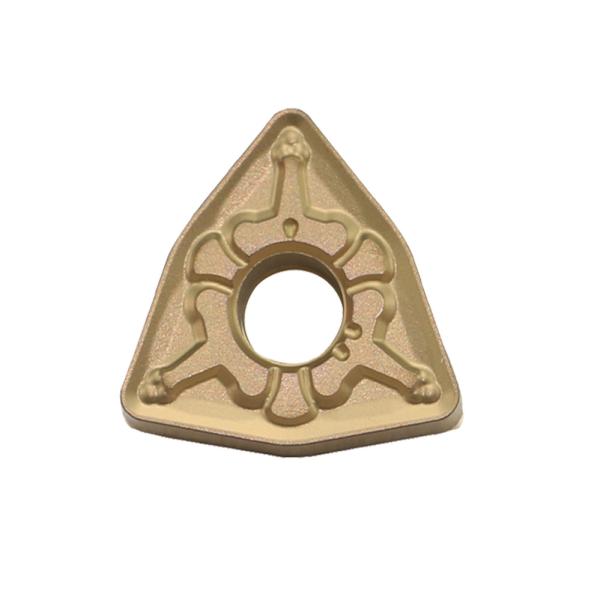

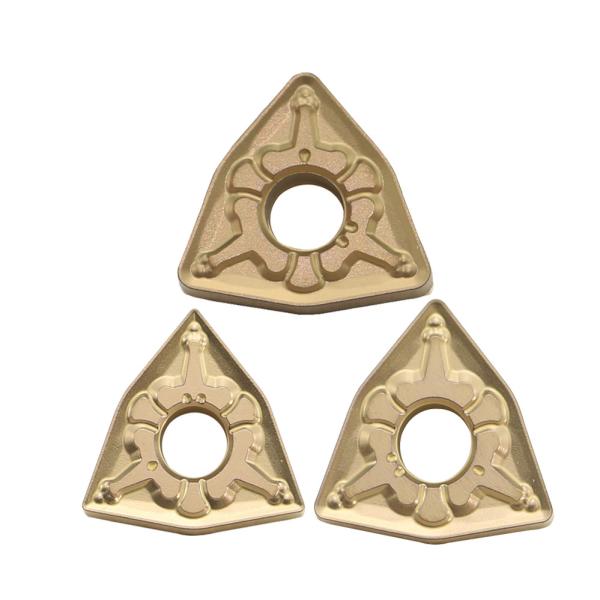

WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
Specifications
Brand Name :
Kedel
Model Number :
WNMG080404
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$0.60 - $18.00 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product name :
WNMG 080404 MS Lathe Cutter External Turning Tools Carbide CNC Inserts
Material :
100% Virgin Raw Material
Usage :
External Turning Tool
Coating :
CVD/PVD/TIAN /TLIAN /TIN etc
Hardness :
92HRC
Color :
Gray/golden/black
Grade :
K10-K30
Workpiece :
Steel\ Stainless\ Cast Iron
Description

Steel Semi-Finishing WNMG080404 Carbide Turning Inserts Indexable Cutting Tool Cutter

Kedel tungsten carbide indexable inserts with sharp cutting edge can reduce the vibration of machining process, which is beneficial to the insert surface with low roughness.
Optimized chipbreaker structure improve the cutting performance and chipping control, contributing to easy and fast cutting. The combination of specific substrate and coating, well balanced the different wear patterns of center inserts and surrounding inserts.

WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning

Specifications:

Type
Dimension
L
ΦI.C
S
Φd
r
WNMG060404
6.5
9.525
4.76
3.81
0.4
WNMG060408
6.5
9.525
4.76
3.81
0.8
WNMG080404
8.7
12.7
4.76
5.16
0.4
WNMG080408
8.7
12.7
4.76
5.16
0.8
WNMG080412
8.7
12.7
4.76
5.16
1.2
WNMG080416
8.7
12.7
4.76
5.16
1.6

WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning

WNMG080404 Carbide CNC Insert 12.7mm IC for Steel Turning
