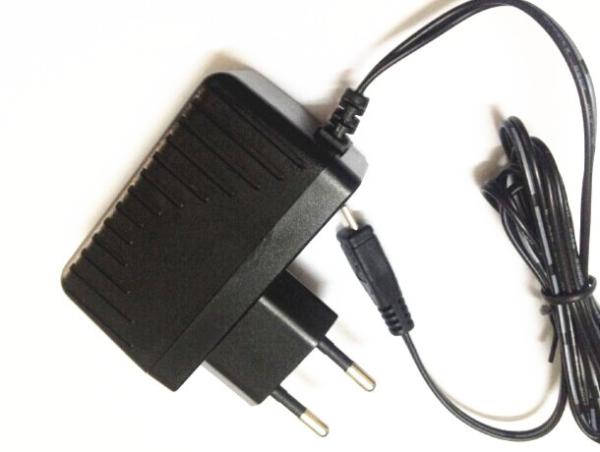

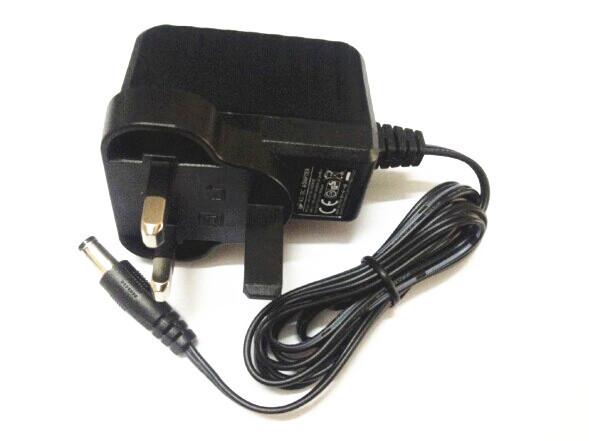

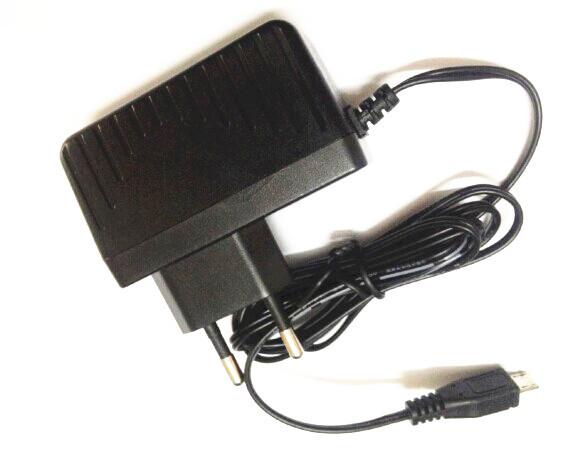

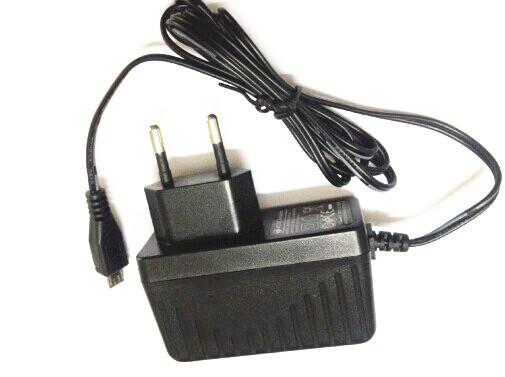

5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
Specifications
Brand Name :
BTB
Model Number :
BTB-S12-24
Certification :
CE FCC UL GS SAA PSE Rohs CCC
Place of Origin :
Shenzhen China
MOQ :
500PCS
Price :
0.00
Payment Terms :
T/T L/C WESTER UNIN PAYPAL
Supply Ability :
10000000pcs
Delivery Time :
5-7days
Packaging Details :
Paper box
level :
vi
output :
12v 2a 5V 2A
warranty :
3years
Description

5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles


Features of power adapter
Universal Input 100~240V AC 50~60Hz
Built-in Class B EMI FilterHigh Efficiency
Short Circuit protection Lightweight Compact

Electrical Specifications of the switching power adapter
(AC Input)Rated Input Voltage: 100~240V AC
Input Current: 0.45A(RMS) @ 115V AC0.20A(RMS) @ 230V AC
Input Frequency: 50~60Hz
Inrush Current: Max. 50A @ 230V Cold Start
Low Standby Power 0.3W Max
Output: 3~24VDC 15W Max.

Environmental Specifications of power adapter
Operating Temperature: 0~40C @ Max. LoadNon-operating Temperature: -40 C 85 C
Humidity: 5% to 95% Non-condensing
Safety Specifications of power adapter:
Standards Reference Class 11 SELV for the following agency Requirements:
CCC, UL, CSA950(cUL), TUV-GS, EMC, CB, FCC. NEMKO. RoHS

Mechanical Specifications of power adaptor
Weight Approx. 110g
Dimension L71.5mm(2.81'')W42.5mm(1.67') H48.5mm(1.90'')
Connectors DC Output: 1.8m wire, "H"shaped head or according to customers' choice.

Add to Basket

5v 4A 6V 3.8A 9V 2.6A 10V 2.4A 12V 2A 15V 1.6A 24V 1A Power adapters
UL / CUL / FCC / GS(LVD) CE / EMC / PSE
3C / C-TICK CEC

5v 4A 6V 3.8A 9V 2.6A 10V 2.4A 12V 2A 15V 1.6A 24V 1A Power adapters

Model name INPUT V A
BTB241DA-0540 5 4 20
BTB241DA-0638 6 3.8 22.8
BTB241DA-0926 9 2.6 23.4
BTB241DA-1024 10 2.4 24
BTB241DA-1220 12 2 24
BTB241DA-1516 15 1.6 24
BTB241DA-2410 24 1 24

Meet RoHs CEC Electrical:
Features: Dielectric: 3000VAC
Universal Input 100-240VAC Burn-In Test: 100% Full Load
Modified and Custom Design Available Leakage Current: 0.25mA @ 2pin
Output with Low Ripple Noise Efficiency: Meet CEC
1 Year Warranty MTBF: 50000 Hours
AC Input DC output
Voltage Range: 90-264 VAC Voltage Range: 5.0 - 24.0V
Input Frequency: 47-65 Hz Current Range: 0.8A -4A
Input Current : 550mA max
Inrush Current : 30A max
Efficiency : 76% min
Safety Approval: Case Dimension: (L*W*Hmm)
UL / CUL / FCC / GS(LVD) CE / EMC / PSE 97*45*35
3C / C-TICK CEC / Energy Star
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles5.1V 2.5A 12v 2a power adapter micro usb plug level VI UL CE FCC ROUS SAA PSE GS BIS unmanned aerial vehicles
