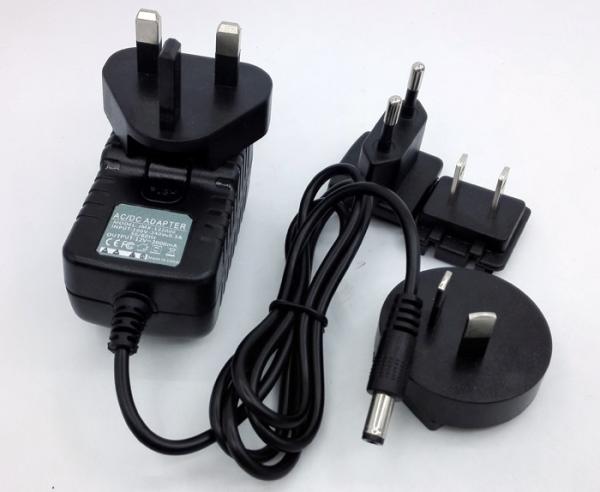

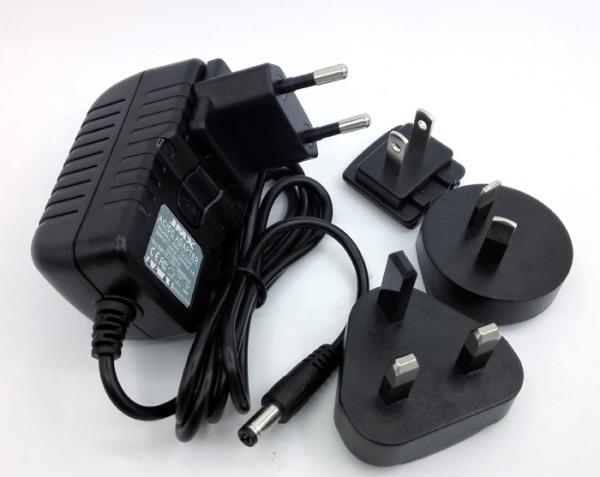

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box
Specifications
Place of Origin :
China
Brand Name :
BTB
Certification :
CE CB UL FCC SAA GS ROHS CCC KC
Model Number :
B-001500200
MOQ :
500PCS
Price :
$1.0-$2.0

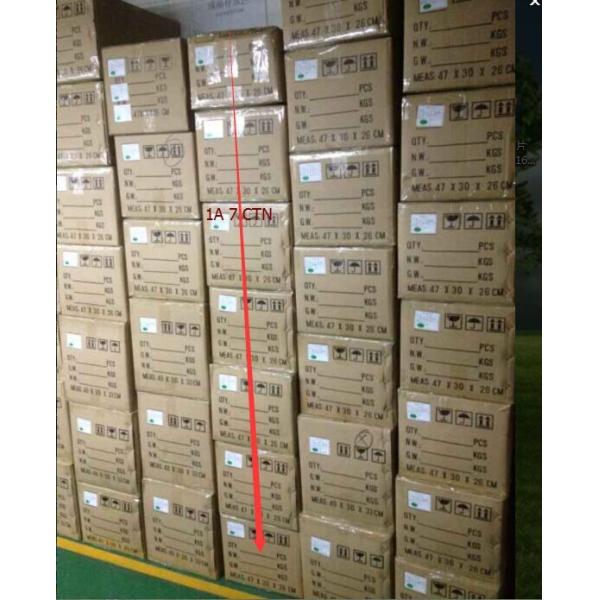

Packaging Details :
PE bags + paper box
Delivery Time :
7-10days
Payment Terms :
T/T,L/C,Western union,Cash,Paypal
Supply Ability :
200000pcs/week
Description

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable UL SAA PSE GS CE FCC ROHS Cert for set top box led light

1.INPUT REQUIREMENT
ITEM SPECIFCATION MIN TYP. MAX
NORMAL AC INPUT VOLTAGE SINGLE PHASE 100Vac 110Vac/220Vac 240Vac
AC INPUT VOLTAGE RANGE SINGLE PHASE 90Vac 110Vac/220Vac 264Vac
AC INPUT FREQUENCY SINGLE PHASE 47Hz 50/60Hz 63Hz
AC INPUT CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD. 550mA
AC INRUSH CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25℃. 30A
EFFICIENCY TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD 78%
2.OUTPUT SPECIFICATION
ITEM SPECIFCATION MIN TYP. MAX
NORMAL DC OUTPUT VOLTAGE 12Vdc
DC OUTPUT VOLTAGE RANGE TYPICAL OUTPUT VOLTAGE 11.4V 12.6V
LOAD CURRENT RANGE 2.0A
PEAK LOAD CURRENT TIME<60S
RIPPLE TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25℃ 120mV
HOLD-UP TIME AT TYPICAL INPUT VOLTAGE AND FULL LOAD 10mS
TURN-ON DELAY TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT 3S
OVER CURRENT PROTECTION AUTO RECOVERY
SHORT CIRCUIT PROTECTRON THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND
OVER VOLTAGE PROTECTION

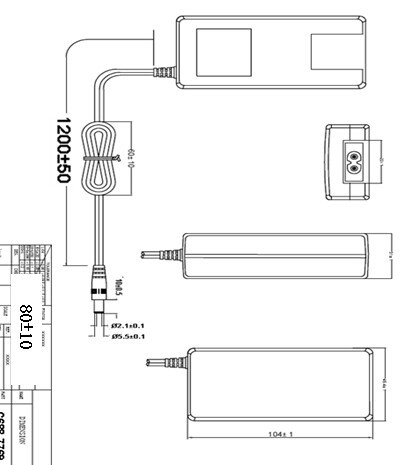

3.MECHANICAL
ITEM SPECIFICATION OR TEST CONDITION ACCEPTANCE CRITERIA
BENDING TEST NORMAL TEMPERATURE NO SHORT CIRCUIT
THE CORD SHALL WITHSTAND WEIGHT OF 200g, SWINGING FROM NO BREAKAGE OF THE CORD
LEFT TO RIGHT AT AN ANGLE OF 60 DEG. 1000CYCLE TIMES MIN.
S/R SHALL WITHSTAND WEIGHT OF 1N. SWINGING FROM LEFT TO
RIGHT AT AN ANGLE OF 60DEG. 1000CYCLE TIMES MIN.
BENDING SPEED 40CYCLE/MINUTE
VIBRATION FREQUENCY RANGE:10~55Hz THERE SHALL BENO
AMPLITUDE:1.5mm ABNORMALITY ON THE
ACCELERATION: 1G APPEARNCE STRUCTURE
SWEEP 1 MINUTE FOR X,Y,Z,AXIS EACH AND OPERATING
4.RELIABILITY
ITEM TEST CONDITION ACCEPTANCE CRITERIA
TEMPERATURE UP WITH TEST AT SURFACE OF THE CASE WITH TYPICAL TEMPERATURE UP UNDER
TYPICAL LOAD AC INPUT AND TYPICAL LOAD IN OUTPUT 35 DEGREES
50/60Hz
HI-POT TEST INPUT TO OUTPUT NO DAMAGE
GRADUALLY RAISED FROM 0 TO THE 3000Vac AND HELD AT THAT VALUE FOR 3S,10mA
MTBF TYPICAL INPUT&FULL LOAD , 25℃ 5000 HOURS
BURN-IN AT 30℃(±10℃),NORMAL INPUT VOLTAGE 2~4 HOURS
5.ENVIRONMENT
ITEM SPECIFICATION OR TEST CONDITION min. typ. max.
OPERATING TEMPERATURE 0℃ 40℃
STORAGE TEMPERATURE -20℃ 85℃
OPERATING HUMILITY NON-CONDENSING 5%RH 90%RH
STORAGE HUMILITY NON-CONDENSING 5%RH 90%RH

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box

12V 2A exchangeable UK AUS USA EU AC plug 2M cable 18AWG cable LED light box

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Skype:beryl--qin

What's app: 86 13412619588

QQ:1767294269

Wechat: beryl18

www.btbadapter.com
