DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera
DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera
Specifications
Brand Name :
KAIDUNEX
Model Number :
KDQ-EX-PTZ4012IR04
Certification :
DNV TA/ATEX/CE/FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Material :
Stainless Steel 316L
Protection Class :
IP68
Resolution :
4MP
Focal Length :
5-60mm
Power :
POE/DC12V
Net Weight :
3.5kg
Ex Mark :
Ex II 2G Ex db op is IIC T6 Gb II 2DEx tb op is IIIC T80°C Db IP68 IP66
Description
DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera
Standard KDQ-EX-PTZ4012IR04 4MP ,12X optical zoom ,5-60mm Focal length ,With IR,PoE Power

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Specification
Type KDQ-EX-PTZ4012IR04
Order No. KD004
Material Stainless Steel 316L
Protection Class IP68
Temp.range min -30℃
Temp.range max +60℃
Vibration(0-100Hz) 0.7g
Video IP
Operational Areas Outdoor
Mounting Wall mounted,Ceiling Mounted
Wiper N/A
Pan/Tilt Remote operated
Rotation Vertical 0-90°
Rotation Horizontal 0-355°
Surface powder coating
Resolution 2MP,4MP,8MPetc
Zoom 5x,12x
Image Sensor 1/2.8"Progressive Scan CMOS
Min.illumination Color:0.05lux @(F1.2,AGC ON),O lux with IR
CCTV add-on Anti-Flicker,heartbeat,mirror,privacy mask etc
Voltage PoE/DC12V
Net Weight 3.5kg
Certificates DNV TA/ATEX/CE/FCC
EX Mark ExI 2G Ex db op is IIC T6 Gbl 2DEx tb op is IIIC T80℃ Db IP68 IP66
Viewing angle 5X Focal Length:2.7~13.5mm;Field of View(H)106.3°~32.5°;Field of View (V)53.5°~18.0°;Field of View(D)126.0°~38.5°
12X Focal Length:5～60 mm;Field of View(H)59°-5°;Field of View(V)33°-3°;Field of View(D)66°-6°

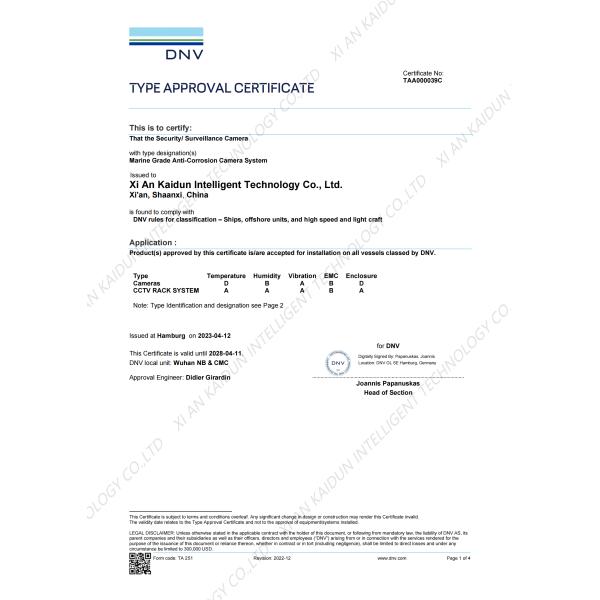

Certificate

DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome CameraDNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome CameraDNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome CameraDNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

Dimensions

DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome CameraDNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

Accessories

DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera DNV Approval Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

Anti-Shake Bracket 316L Exe Type Juction Box Ex-Proof Hose
