Marine Grade Anti-Corrosion Fixed Mini IR Camera
Marine Grade Anti-Corrosion Fixed Mini IR Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDM-EX-FL404IR03
Certification :
DNV TA/ATEX/CE/FCC
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Material :
Stainless Steel 316L
Resolution :
2MP,4MP etc
Lens :
2.8mm,4mm etc
CCTV add-on :
Motion Detection,Mask Alarm,IP address conflict etc
Ex Mark :
Ex II 2G Ex db op is IIC T6 Gb II 2D Ex tb op is IIIC T80℃ Db IP68 IP66
Dimensions(L*W*H) :
158*98*113mm
Net Weight :
1.65kg
Description

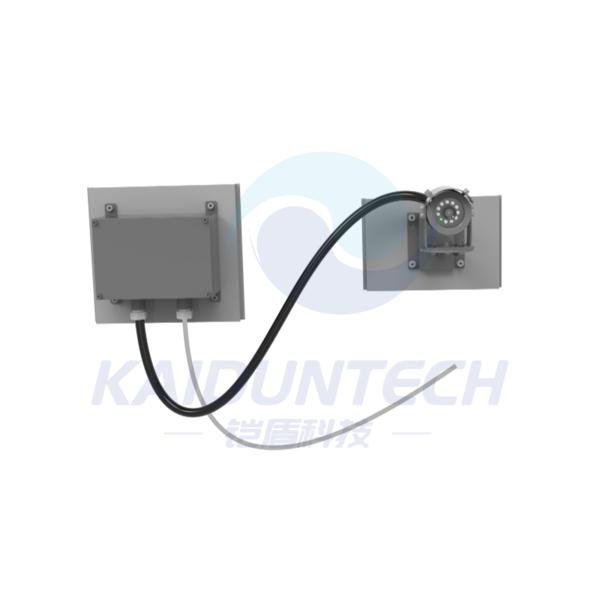

Marine Grade Anti-Corrosion Fixed Mini IR Camera

Key Features

  • Marine-grade Mini IP Camera system including:
    -Stainless steel 316L Enclosure with Powder Coating
    -4MP, 2.8mm fixed lens,
    -IR range 15meters
    -DC12V /PoE Power,
    -IP68
  • Accessories including :
    -1x KDJ008 ATEx Exe Corrosion Proof JB with powder coating
    -1x KDB001T Anti-shake SS316L Wall Mounting Bracket
    -1x 1.5meters Explosion Proof Hose with 316L connectors

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Specification

Type KDM-EX-FLXXXIR03
Material Stainless Steel 316L
Protection Class IP68
Temp.range min -40℃
Temp.range max +60℃
Vibration(0-100Hz) 0.7g
Video IP
Operational Areas Outdoor
Mounting Wall mounted
IR IR
Surface powder coating
Resolution 2MP,4MP etc
Lens 2.8mm,4mm etc
FOV H:78°,V:42°,D:93°
Image Sensor 1/2.8"Progressive Scan CMOS
Min.illumination Color:0.02Lux@(F2.0,AGC ON),B/W:OLux with IR
CCTV add-on Motion Detection,Mask Alarm ,IP address conflict etc
Voltage PoE/DC12V
Net Weight 1.65kg
Certificates DNV TA/ATEX/CE/FCC
EX Mark ExII2G Ex db op is IIC T6Gb Ⅱ 2DExtb op i IIIC T80℃ Db IP68 IP66
Intelligent Detection(AI) Motion Detection/Human Detection

Certificate

Marine Grade Anti-Corrosion Fixed Mini IR CameraMarine Grade Anti-Corrosion Fixed Mini IR CameraMarine Grade Anti-Corrosion Fixed Mini IR CameraMarine Grade Anti-Corrosion Fixed Mini IR Camera
