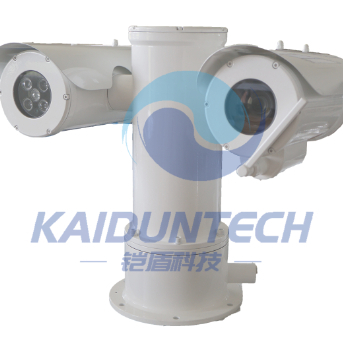

2MP 36X Anti-Corrosion IR PTZ Starlight WDR Analogue Marine CCTV Camera With Wiper
2MP 36X Anti-Corrosion IR PTZ Starlight WDR Analogue Marine CCTV Camera With Wiper
Specifications
Brand Name :
KAIDUN
Model Number :
MC901(A)
Certification :
BS EN 62676-1-1-2014
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Lens Parameter :
Lens Zoom:36X 3.9~140.4mm;FNo:1.6~3.5
Resolution :
1920(H)*1080(V)/1200TV Line/1920*1080p(AHD/CVI/TVI)
Power :
AC30V/AC100-240V/DC24V-36V
Dimensions(L*W*H) :
445*290*405mm
Material :
Stainless Steel 316L
Net Weight :
≤27kg
Ingress Protection :
IP68
Infrared Distance :
100-150m
Description

2MP 36X Anti-Corrosion IR PTZ Starlight WDR Analogue Marine CCTV Camera with wiper

2MP 36X Anti-Corrosion IR PTZ Starlight WDR Analogue Marine CCTV Camera With Wiper

Key Features

  • Stainless steel 316L Enclosure
  • Ingress protection lP68
  • Resolution 2MP Starlight Level
  • 3.9-140.4mm Vari-focal lens
  • Pan 0-360° ,Tilt -90° ~+90°
  • IR Range up to 150meters (300meters is optional)
  • AC110V -240V Standard(AC30V,DC24V Optional)
  • Verification to:BS EN62676-1-1-2014-Video surveillance systems for use in security applications

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Parameters
Mage Sensor 1/2.5" 2MP CMOS NVP2441H+SONY322
Lens Parameter Lens Zoom:36X,3.9~140.4mm;FNo:1.6~3.5
Max.Resolution 1920(H)*1080(V)/1200TV ,Line/1920*1080p(AHD/CVI/TVI)
Frames per second 25/30 fps
Min.Illumination Color:0.01Lux@(F1.2,AGC ON),OLux with IR
Black &White:0.001Lux@(F1.2,AGC ON),OLux with IR
Output Format PAL/NTSC:1920(H)*1080(V)
Video output: 1.0Vp-p,75Ω
Focus Mode Bus control focus/Button control focus
Control connector Bys contol DC±3V~±12V
Denoise 2D/3D
Backlight compensation On/Off
Auto IRIS YES
AF mode Normal/Zoom Trigger/Interval
AWB mode Auto/Manual/outdoor/indoor
AE mode Auto/shutter priority/IRIS priority/manual
Electronic shutter 1/25s~1/10000s
IR cut mode Auto/day/night
Privacy Zone 24 Mask
OSD Title/Display
Protocol Sony,Pelco-D
General
Power AC30V/AC110V-240V/DC24V-36V etc optional,≤85W
Dimensions(L*W*H) 445*290*405mm
Net Weight ≤27kg
Material Stainless Steel 316L
Working Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Strorage Environment -40℃~60℃,Humidity:s100%RH(non-condensing)
Surge Protection 2KV
Ingress Protection
Inlet Hole		 IP68
1 Entry hole G3/4
Installation Method Wall or column platform installation
PTZ
Rotation Angel Horizontal:0°-360°;Vertical:-90°-+90°
