2MP 316L Anti-Corrosion Thermal Bullet Marine CCTV Camera
2MP 316L Anti-Corrosion Thermal Bullet Marine CCTV Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MC802(T)
Place of Origin :
China
Certification :
EN62676-1-1:2014
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Material :
Stainless Steel 316L or 304
Athermal Array Format :
1280*1024
Athermal Focal Length :
8.7mm
Spectral Range :
8～14μm
Power :
DC12V,≤15W
Dimensions(L*W*H) :
280*185*223mm
Net Weight :
≤6.9kg
Description

2MP 316L Anti-Corrosion Thermal Bullet Marine CCTV Camera

Key Features

  • Stainless steel 316L Enclosure
  • Ingress protection IP68
  • Resolution 1280*1024
  • 8.7mm focal lens
  • DC12V Standard
  • Verification to:BS EN 62676-1-1-2014-Video surveillance systems for use in security applicationsCE-EN60945(EMC+LVD)

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Parameters

Athermal Lens
Array Format 1280*1024
Focal Length/F# 8.7mm F1.2
Lens type Athermal
FOV(H*V) 90.45°*75.1°
IFOV 1.379mrad
Performance metrics
Detector type VOx uncooled IRFPA
Pixel Pitch 12μm
Pixel Resolution 1280*1024
Frame rate 50Hz
Spectral Range 8～14μm
NETD ≤35MK@25C,F#1.0
Image Adjustments
Polarity Black hot/White hot
Color Palettes Support (18 types)
Digital Zoom 1.0~8.0× Continuous Zoom (in 0.1×increment),magnify in any area
Image Processing NUC,Brightness and contrast adjustment,Temporal Filter,Spatial Filter,DDE
Image mirroring Horizontal/Vertical/Horizontal&Vertical
Network
Network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols
Interoperability ONVIF,SDK
Simultaneous Live View Support at least 20 channels
User management 20 users at most, there levels:administrator, operator and user
Browser Support IE8+, Chrome, and other browsers, with multi language support.
Smart features
Fire Detection Supprot
Smart Video Recording Supprot
Smart alarms Support linkage alarm of network disconnection, IP address conflict, memory full, memory error, illegal access and exception detection
VCA Cross line detection, intrusion detection
Alarm Linkage Video/snapshot/E-mail/ PTZ linkage /alarm output
Lens controls
Lens type Motorized fixed focus/continuous zoom
Autofocus Support (Auto focusing time near clear spot≤1s)
Motorized Focus Support
Motorized Zoom Support
Interface
Serial Communication Interface 1-ch RS-485, 1-ch UART (PTZ control)
PELCO Support standard PELCO-D, PELCO-P protocols
Network Communication Interface 10M/100M/1000M adaptive Ethernet port
Output interface 1-ch MIPI output interface (expandable to MIPI input interface)
Audio Support 1-channel input, 1-channel output
Alarm Support 1-channel DC 5V alarm level input, 1-channel switch alarm output
General
Power DC12V,≤10W
Dimensions(L*W*H) 280*185*223mm
Net Weight ≤6.9kg
Material Stainless Steel 316L
Working Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Strorage Environment -40℃~60℃,Humidity:s100%RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP68
Inlet Hole Specification 1 Entry hole G3/4
Installation Method Wall or column platform installation

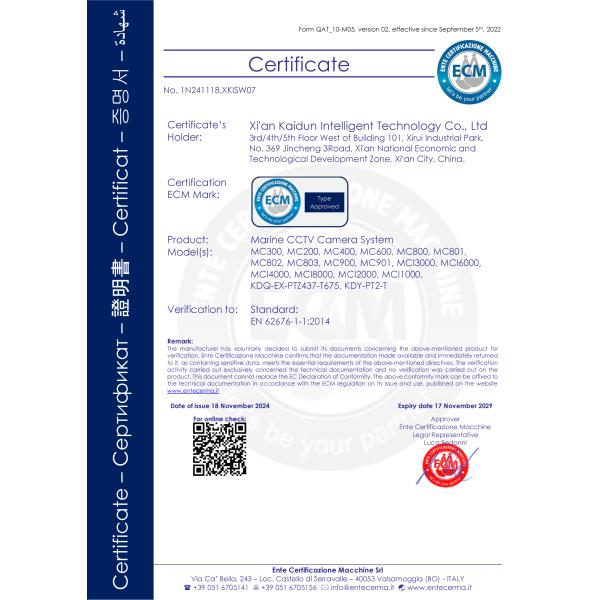

Certificate
