Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
Specifications
Brand Name :
Casun
Model Number :
42SHD8909-24
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$5~$7
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
125 mN.m
Voltage :
2.26V
Current :
1.2A
Body Length :
23mm
Weight :
0.2 kg
Phase Resistance :
1.88 ohm ±10% （At 20℃）
Shaft Length :
24 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Nema 17 1.8° Degree 125mN.m 23mm Body with CE RoHS Certification Stepper Motor for Beauty Equipment

The Casun Nema17 Hybrid Stepper Motor delivers industrial-grade precision and high-torque performance (500mN.m) for demanding CNC and automation applications. Featuring a compact 42×48mm frame, this motor integrates advanced hybrid technology for smooth, reliable motion control while maintaining exceptional energy efficiency.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

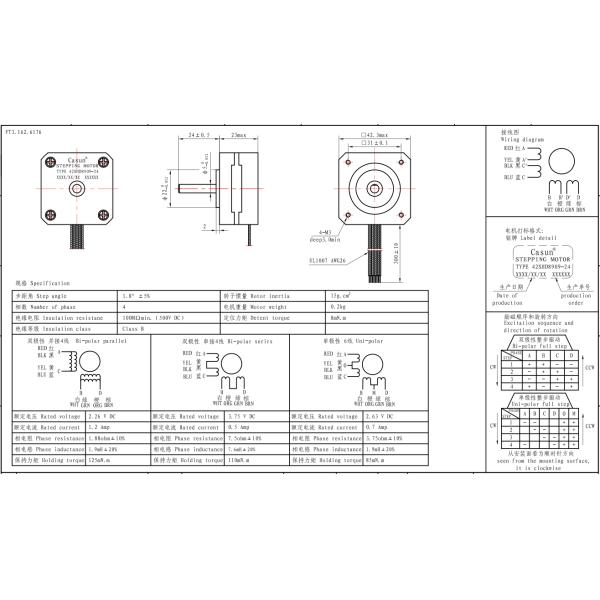

Dimensions

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Motor Specifications

Step Angel

 1.8°

Frame Size

 23 mm

Number of Phase

 2 Phase

Rated Current

 1.2 Amp

Holding Torque

 125 mN.m

Resistance

 1.88 ohm

Inductance

 1.9 mH

Rotor Inertia

 15 g.cm²

Motor weight

 0.2 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

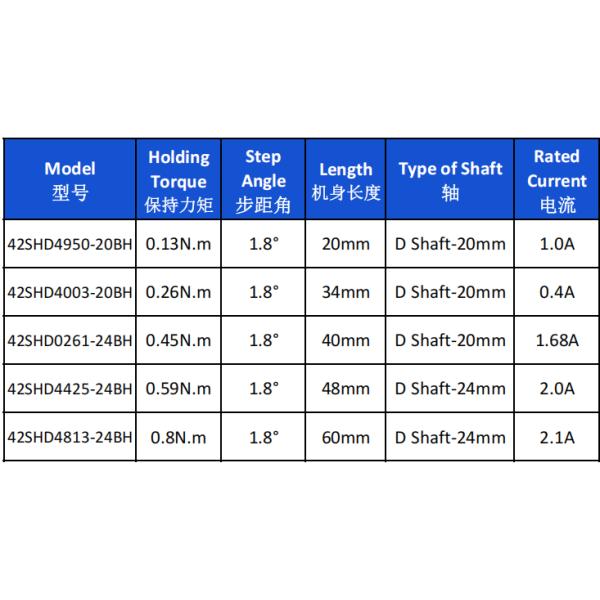

Submodels

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment Nema 17 1.8° Degree 125mN.m 23mm Body With CE RoHS Certification Stepper Motor For Beauty Equipment
