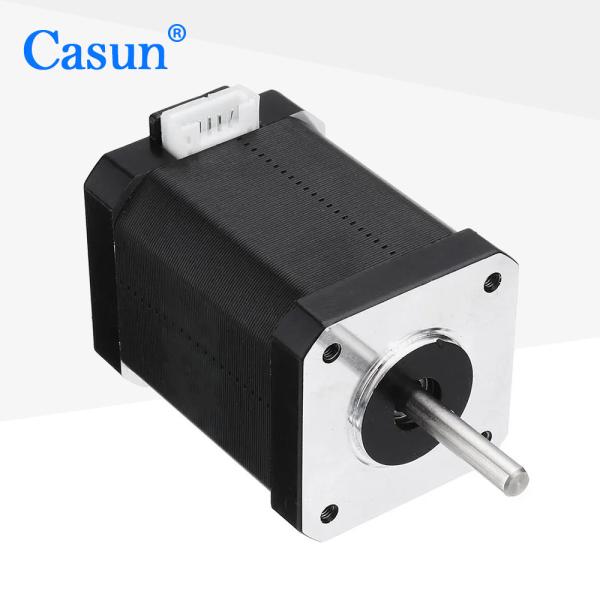

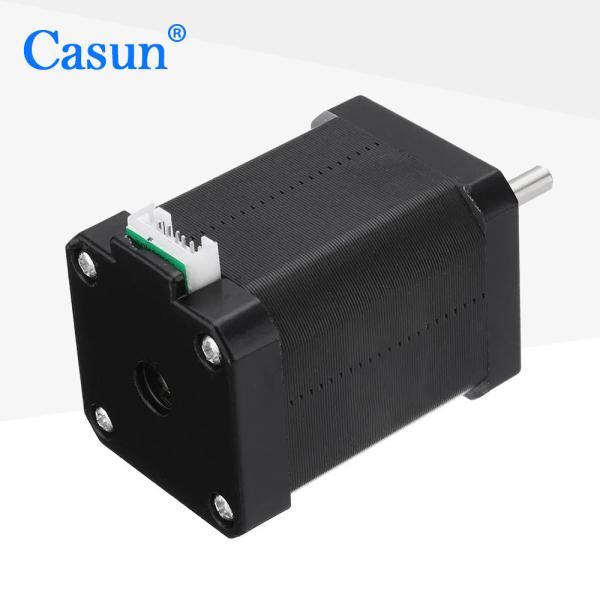

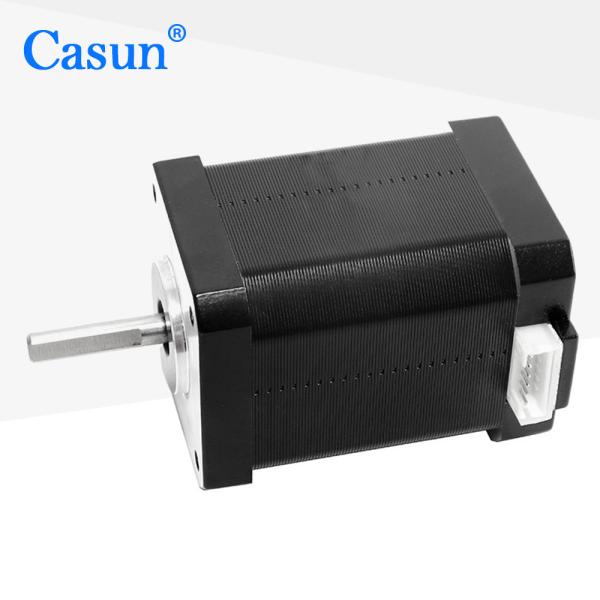

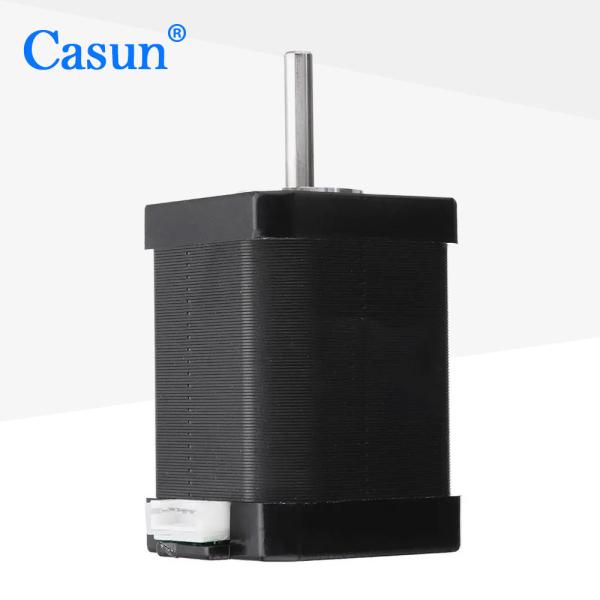

3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Specifications
Brand Name :
Casun
Model Number :
42SHD0802-25BH
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
780mN.m
Current :
0.5A
Motor Length :
60mm
Shaft :
Milling Flat Shaft 25mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
NEMA 17 stepper motors are compatible with various controllers and drivers, providing a high degree of flexibility. NEMA 17 stepper motor is suitable for various small mechanical devices.
Key Features
  • High torque and high precision
  • For high-tech industry and electronic industry equipment
  • Available in single or double shaft versions
  • We provide tailored services and welcome contract-based production
  • Expert in drivetrain solutions
Appearance
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Dimensions
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 0.5 A
Holding Torque 780 mN.m
Resistance 30 ohm
Inductance 65 mH
Rotor Inertia 102 g-cm²
Motor Weight 0.45 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Available Submodels
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Encoder
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Brake
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Gearbox
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase
Shaft
Please click the "Get a quote" button below to tell us your requirements.
