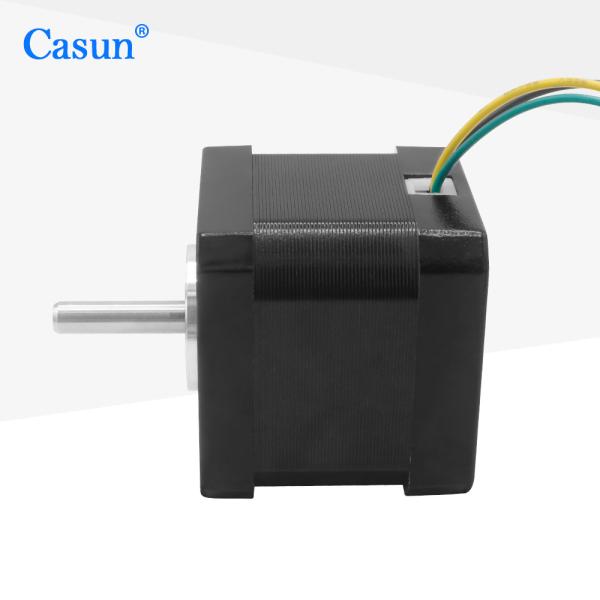

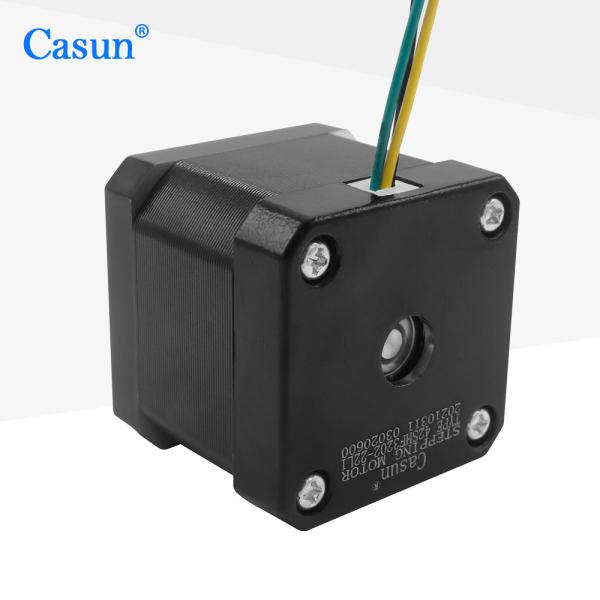

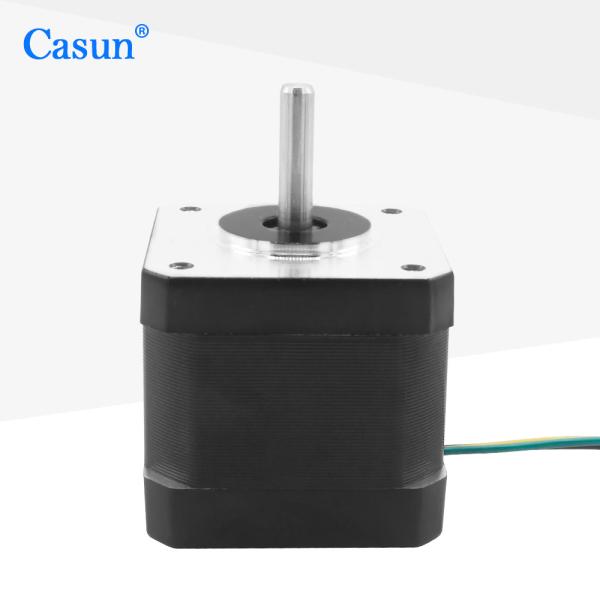

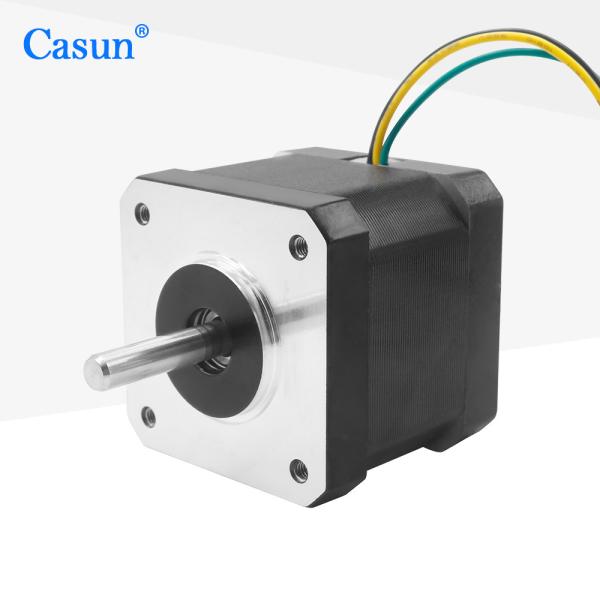

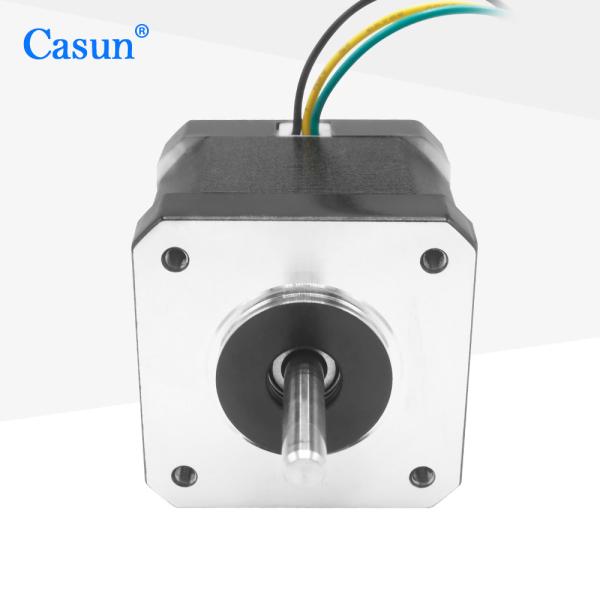

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification
Specifications
Brand Name :
Casun
Model Number :
42SHF3202-22L1
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$5.29~$6.86
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
360 mN.m
Voltage :
10.8V
Current :
1.2A
Body Length :
40mm
Weight :
0.24 kg
Phase Resistance :
10.3 ohm ±10% （At 20℃）
Shaft Length :
22 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V High Quality Stepper Motor with CE RoHS Certification

The Casun Nema17 Stepper Motor delivers exceptional positioning accuracy with its 1.2° step angle, providing 30% finer resolution than standard 1.8° motors. Engineered for high-performance automation, this motor combines 360mN.m torque with 10.8V optimized operation, making it ideal for CNC machines, 3D printers, and precision instrumentation.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Motor Specifications

Step Angel

 1.8°

Frame Size

 40 mm

Number of Phase

 2 Phase

Rated Current

 1.2 Amp

Holding Torque

 360 mN.m

Resistance

 9 ohm

Inductance

 10.3 mH

Rotor Inertia

 57 g.cm²

Motor weight

 0.24 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Motor Nema17 1.2° Degree Stepper Motor 360mN.m 10.8V With CE RoHS Certification

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
