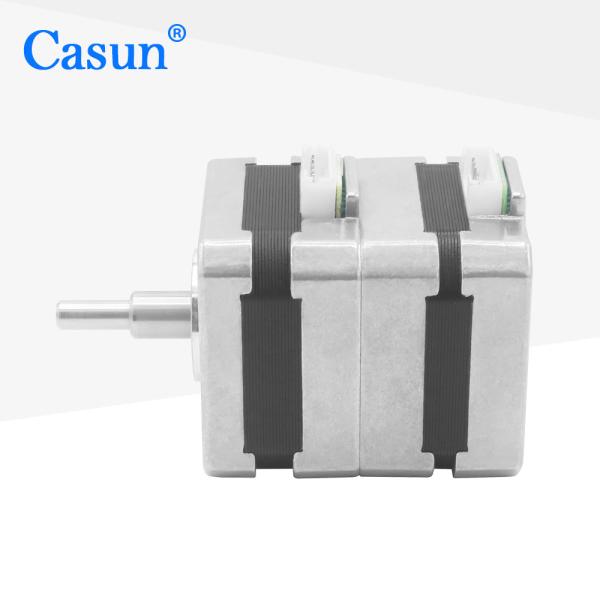

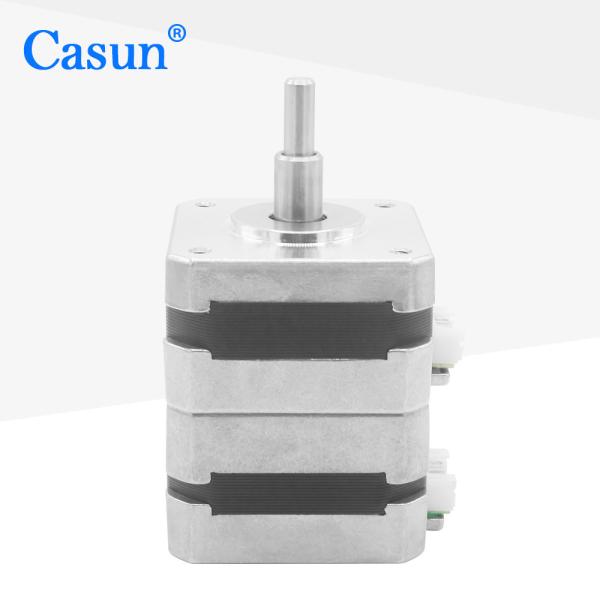

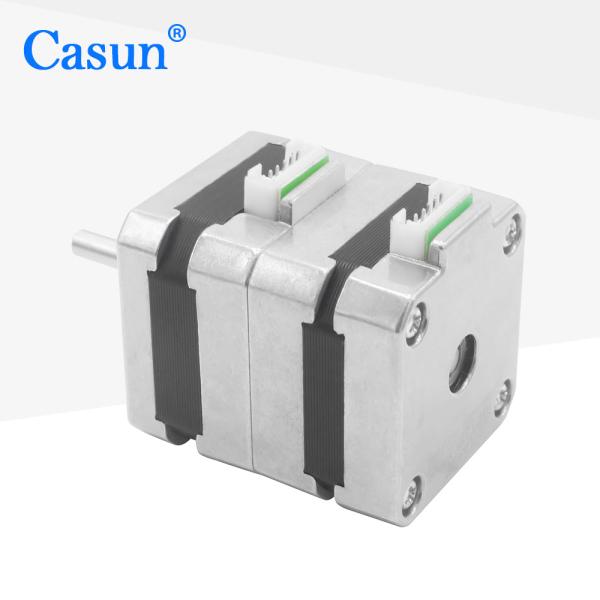

Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment
Specifications
Brand Name :
Casun
Model Number :
E42D-03-1224
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$13.8~$16
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
210 mN.m
Voltage :
12 V
Current :
0.4 A
Body Length :
52mm
Weight :
0.5 kg
Phase Resistance :
30 ohm ±10% （At 20℃）
Shaft Length :
24 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Customized Double-Layer Stepper Motor Factory Prices 1.8° Degree 0.4 AMP for Medical Equipment

The Casun Customized Double-Layer Stepper Motor offers high precision (1.8° step angle) and smooth operation, optimized for medical equipment and other sensitive applications. With a low current (0.4A) design, it ensures energy efficiency while maintaining reliable performance. Available at factory-direct prices, this motor can be tailored to meet specific requirements, making it ideal for custom automation solutions. Built for durability and accuracy, it delivers consistent results in critical medical and industrial systems.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment

Motor Specifications

Step Angel

 1.8°

Frame Size

 52 mm

Number of Phase

 2 Phase

Rated Current

 0.4 Amp

Holding Torque

 210 mN.m

Resistance

 30 ohm

Inductance

 38 mH

Rotor Inertia

 2 g.cm²

Motor weight

 0.5 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Customized Double Layer Stepper Motor 1,8° Degree 0.4AMP For Medical Equipment

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
