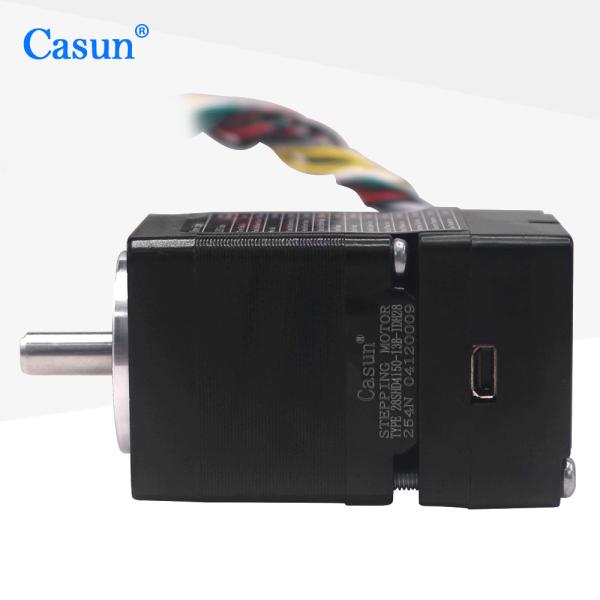

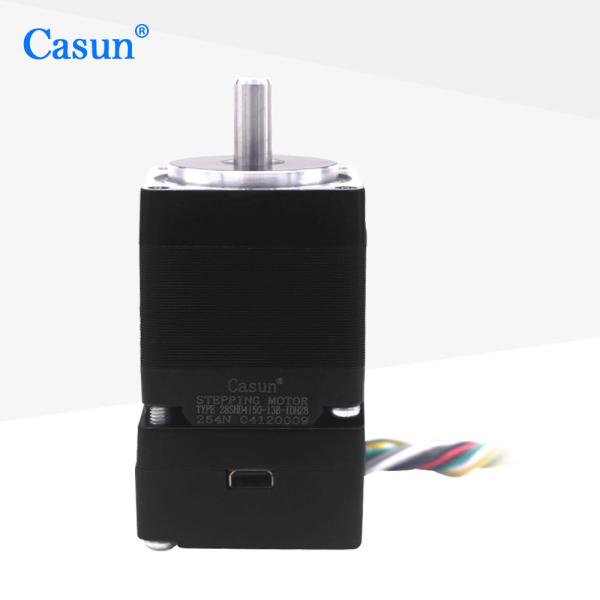

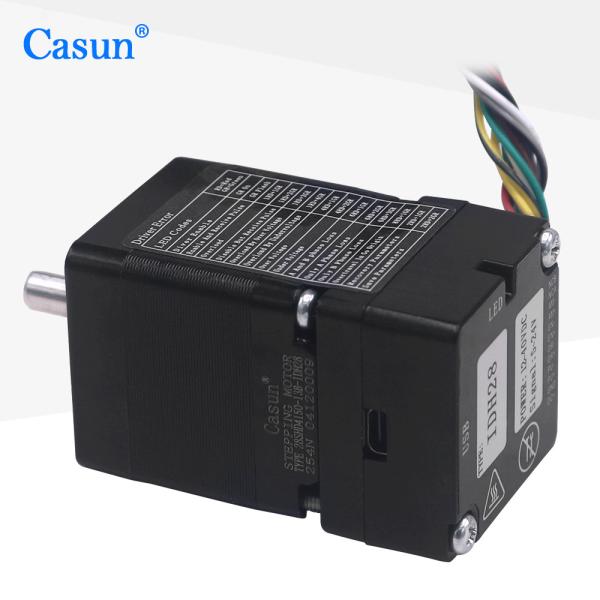

Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision
Specifications
Brand Name :
Casun
Model Number :
28SHD4150-13B-IDH28
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$42~$45
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
50 mN.m
Voltage :
2.5 V
Current :
1 A
Body Length :
35 mm
Weight :
0.14 kg
Phase Resistance :
2.2 ohm ±10% （At 20℃）
Shaft Length :
12.5 mm
Phase :
2
Insulation Class :
Class B
Description

Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor mN.m High Precision

The Casun IDH28 is a high-precision NEMA 11 stepper motor with 50 mN.m holding torque, designed for smooth and reliable performance. Its compact, integrated design ensures easy installation, making it ideal for CNC machines, 3D printers, robotics, and automation systems.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision

Motor Specifications

Step Angel

 1.8°

Frame Size

 35 mm

Number of Phase

 2 Phase

Rated Current

 1 Amp

Holding Torque

 50 mN.m

Resistance

 2.5 ohm

Inductance

 2.2 mH

Rotor Inertia

 8 g.cm²

Motor weight

 0.14 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50mN.m High Precision

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
