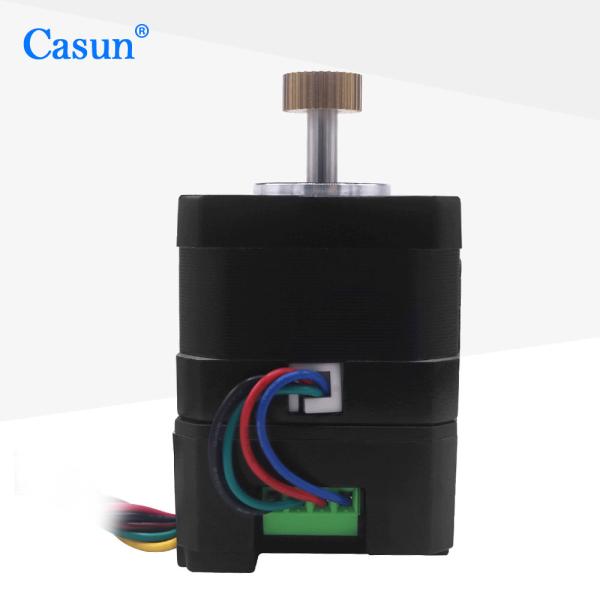

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m
Specifications
Brand Name :
Casun
Model Number :
42SHD4045-19AH-IDH42
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$34~$37
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
300 mN.m
Voltage :
3.2 V
Current :
1.68 A
Body Length :
57 mm
Weight :
0.2 kg
Phase Resistance :
1.9 ohm ±10% （At 20℃）
Shaft Length :
19 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Nema 17 Hybrid Stepper Motor IDH42 High-quality integrated stepper motor 300 mN.m

The Casun NEMA 1 Hybrid Stepper Motor (IDH42) delivers high torque (300 mN.m) and reliable performance for precision motion control. Designed for smooth operation and durability, this integrated stepper motor is ideal for CNC machines, automation, robotics, and 3D printing.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Motor Specifications

Step Angel

 1.8°

Frame Size

 57 mm

Number of Phase

 2 Phase

Rated Current

 1.68 Amp

Holding Torque

 300 mN.m

Resistance

 1.9 ohm

Inductance

 2.6 mH

Rotor Inertia

 38 g.cm²

Motor weight

 0.2 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
