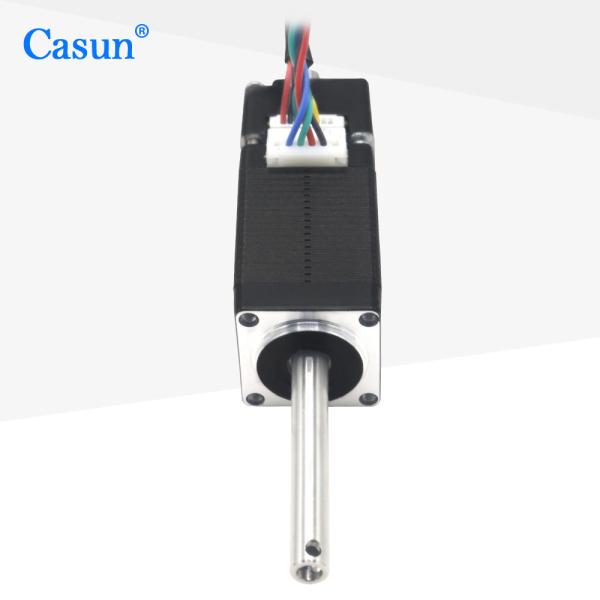

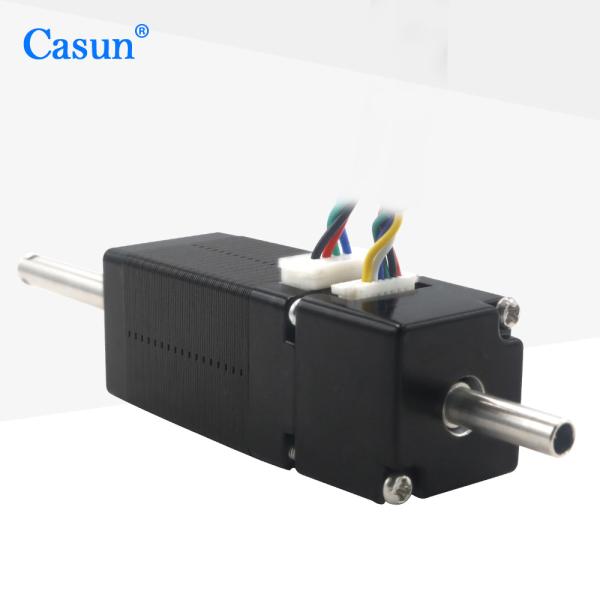

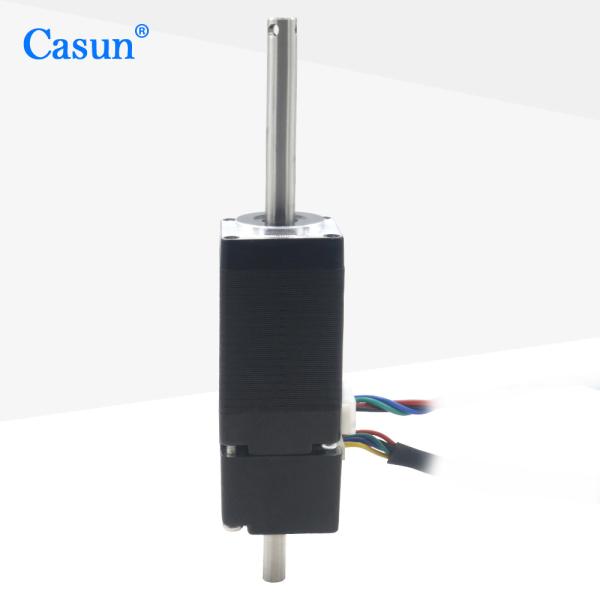

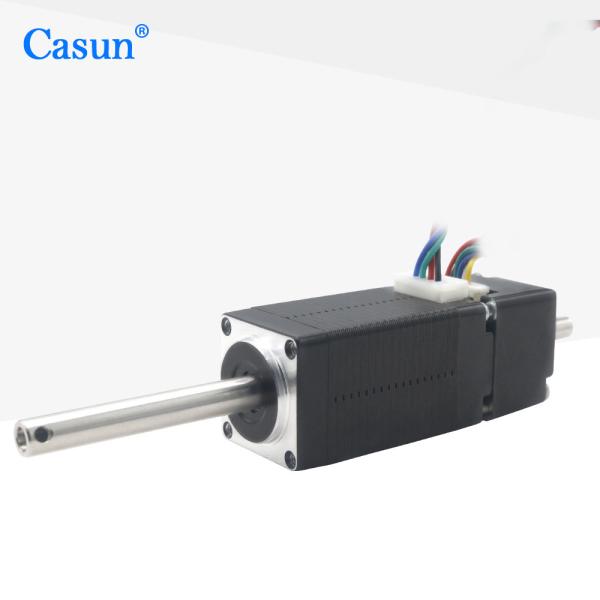

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
Specifications
Brand Name :
Casun
Model Number :
20SHD4255-3SKQ
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$35~$41.77
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
14-21 days
Packaging Details :
Carton:38x29x18cm
Phase :
2
Insulation Class :
Class B
Phase Resistance :
12ohm ± 10%（At 20ssd）
Current :
0.6A
Voltage :
7.5V
Body Length :
38 mm
Holding Torque :
40 mN.m
Weight :
0.08 kg
Shaft Length :
36 mm
Description

Casun Nema 8 Special Shaft Stepper Motor with Encoder mN.m 0.6 Amp Lightweight

The Casun Nema 8 Special Shaft Stepper Motor features a high-torque 40mN.m output with low power consumption (0.6A), integrated encoder for precise control, and a lightweight design for compact applications. Ideal for automation, robotics, and precision motion systems requiring reliable performance in a small form factor.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight

Motor Specifications

Step Angel

 1.8°

Frame Size

 38 mm

Number of Phase

 2 Phase

Rated Current

 0.6 Amp

Holding Torque

 40 mN.m

Resistance

 12.5 ohm

Inductance

 5.5 mH

Rotor Inertia

 3.8 g.cm²

Motor weight

 0.08 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight Casun Nema 8 Special Shaft Stepper Motor With Encoder 40mN.m 0.6Amp Light Weight
