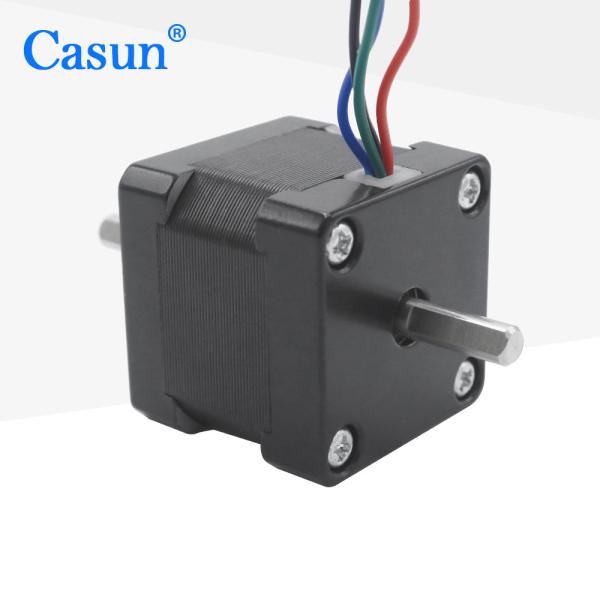

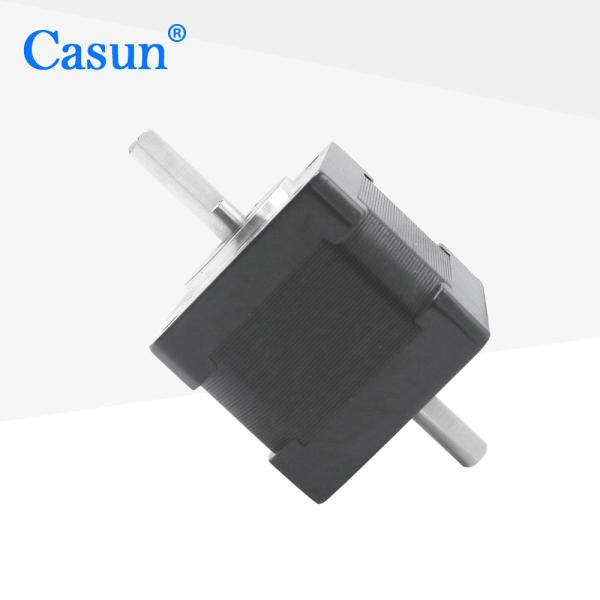

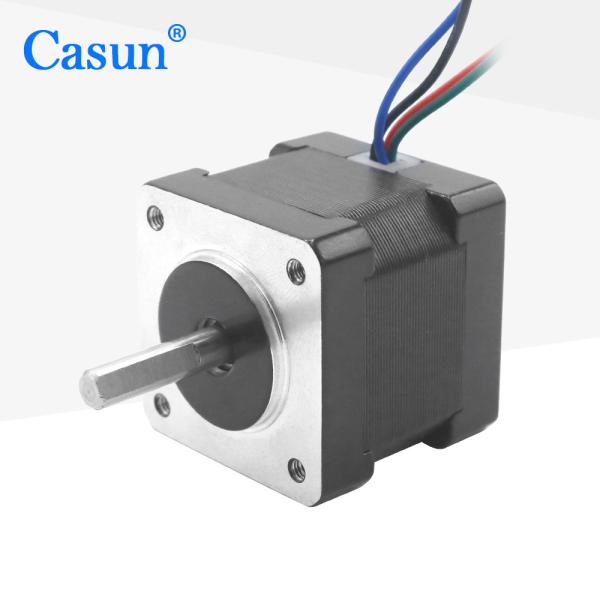

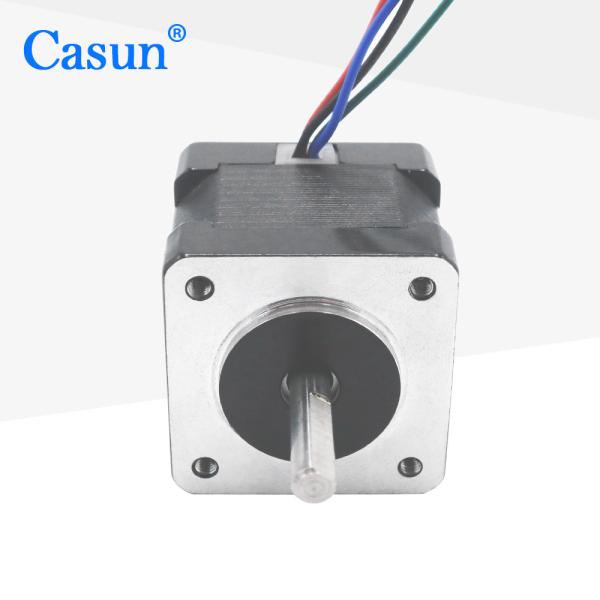

Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Specifications
Brand Name :
Casun
Model Number :
P35SHD4113-21SH
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$4~$4.6
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Phase :
2
Insulation Class :
Class B
Phase Resistance :
2.7ohm
Current :
1.0A
Voltage :
2.7V
Body Length :
34 mm
Holding Torque :
140 mN.m
Weight :
0.2 kg
Shaft Length :
21 mm
Description
Casun Nema 14 Hollow Shaft Stepper Motor
High precision 2.7V DC 1.0A stepper motor designed specifically for CNC machines. The hollow shaft design enables easy cable routing while maintaining accurate motion control and reliability for demanding automation applications.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single- or double-shaft versions
  • CE and RoHS approved
  • Customizations available on request
Dimensions
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Motor Specifications
Step Angle 1.8°
Frame Size 34 mm
Number of Phase 2 Phase
Rated Current 1 Amp
Holding Torque 140 mN.m
Resistance 2.7 ohm
Inductance 4.3 mH
Rotor Inertia 14 g.cm²
Motor Weight 0.2 kg
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder Specifications
Voltage 5V
Output A + A - B + B - Z + Z -
Available Models
Model Holding Torque Step Angle Length Shaft Type Rated Current
35SHD0307 80 mN.m 1.8° 20 mm D Shaft-20mm 0.4A
35SHD0001 100 mN.m 1.8° 26 mm D Shaft-20mm 0.4A
35SHD0102 150 mN.m 1.8° 34 mm D Shaft-20mm 0.75A
35SHD0801 230 mN.m 1.8° 40 mm D Shaft-20mm 0.5A
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
Please click the "Get a quote" button below to tell us your requirements.
