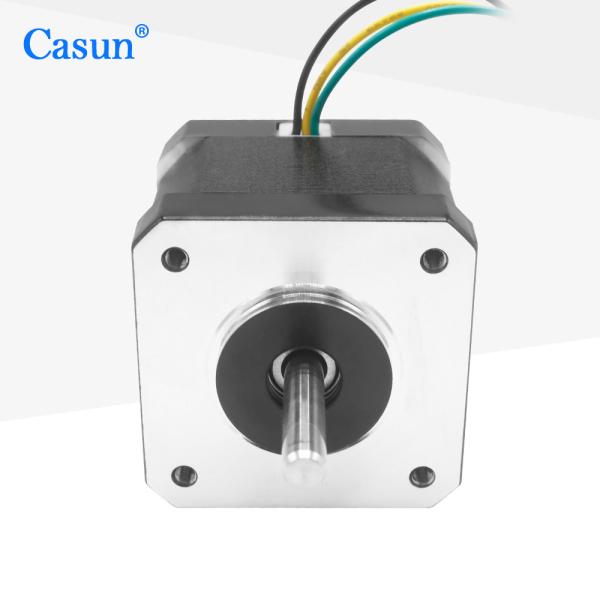

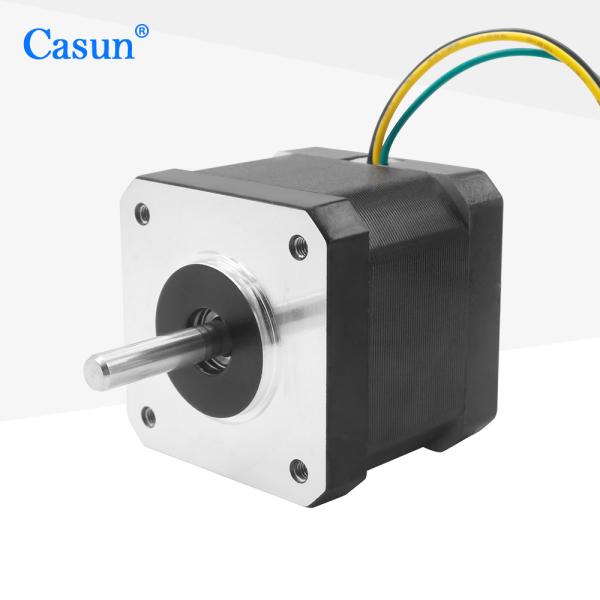

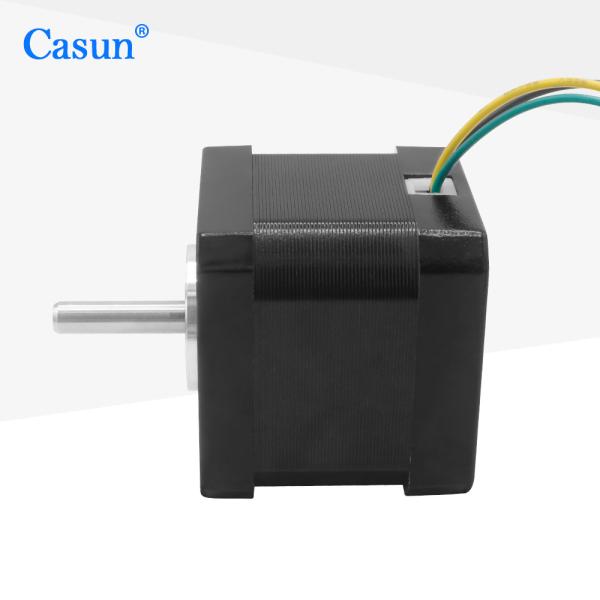

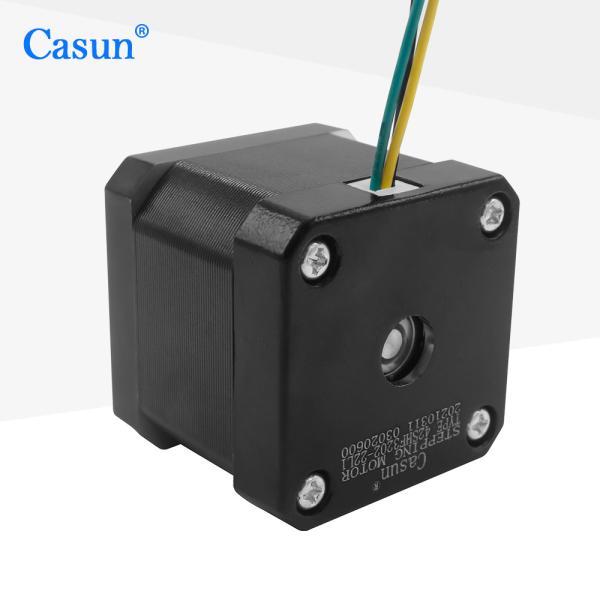

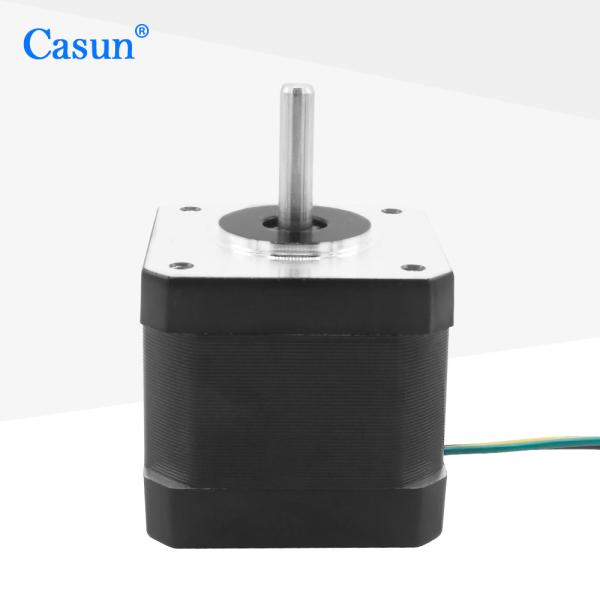

Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
Specifications
Brand Name :
Casun
Model Number :
42SHF3202-22L1
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$3.88-$4.46
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Description

Casun Nema 17 Step angle 1.2° and 1.8° optimized type high-precision hybrid stepper motor.

The Casun Nema 17 Stepper Motor is a high-precision hybrid stepper motor available in two optimized step angles: 1.2° and 1.8°. Designed for superior accuracy and smooth motion control, this motor is ideal for applications requiring precise positioning, such as CNC machines, 3D printers, robotics, and automation systems. Its hybrid technology ensures excellent torque performance, low vibration, and enhanced efficiency, making it a reliable choice for both industrial and hobbyist projects. Whether you need finer resolution (1.2°) or standard stepping (1.8°), this Nema 17 motor delivers consistent performance and durability.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor

Motor Specifications

Step Angel

 1.2°

Frame Size

 40 mm

Number of Phase

 2 Phase

Rated Current

 1.2 Amp

Holding Torque

 360 mN.m

Resistance

 9 ohm

Inductance

 10.3 mH

Rotor Inertia

 9 g.cm²

Motor weight

 0.24 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.2°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13 N.m 1.8° 20 mm D Shaft-20mm 1.0A
42SHD4003 0.26 N.m 1.8° 34 mm D Shaft-20mm 0.4A
42SHD0221 0.27 N.m 1.8° 40 mm D Shaft-24mm 1A
42SHD4425 0.59 N.m 1.8° 48 mm D Shaft-24mm 2A
42SHD4813 0.8 N.m 1.8° 60 mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor
