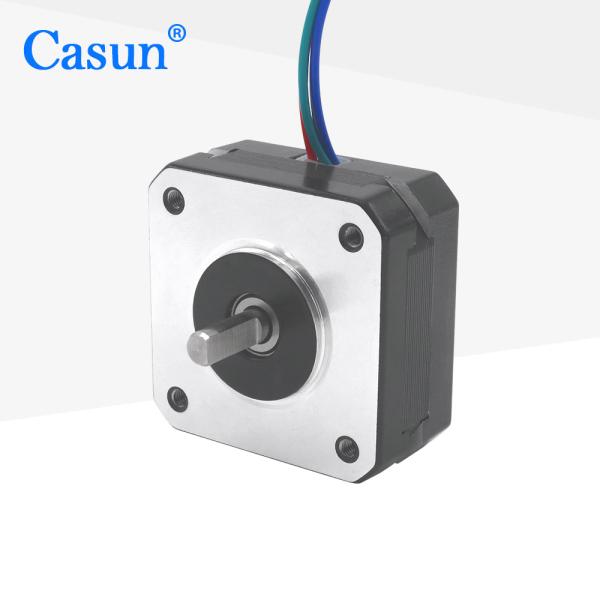

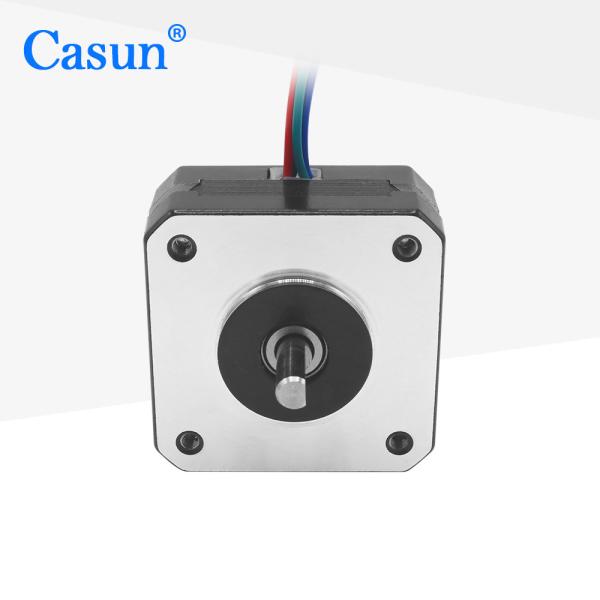

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
Specifications
Brand Name :
Casun
Model Number :
17HS08-1004S1
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8
Holding Torque :
100mN.m
Current :
0.8A
Motor Length :
20mm
Shaft :
Milling Flat Shaft 13.6mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

Stepper motors have strong resistance to power voltage fluctuations and electromagnetic interference, and can operate stably in harsh environments.

It is widely used in many applications such as 3D printers, CNC machine tools, etc.

Features:

  • Provide "multiple international certifications"

  • We have a proven track record of success, serving over 800 customers in China for the past 12 years

  • Our products deliver high torque and precision

  • Professional drivetrain solution specialist

  • Seeking distributors

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

100 mN.m

Resistance

3.3 ohm

Inductance

3.0 mH

Rotor Inertia

15 g-cm²

Motor weight

0.14 kg

Number of leads

4

Connection

Bipolar

Appearance

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment

Dimensions

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment
