Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Specifications
Brand Name :
Casun
Model Number :
42SHD4217-24BH
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$5.0-$6.2
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
500mN.m
Current :
1.5A
Motor Length :
40mm
Shaft :
Round Shaft 20mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi-axis motion control. The dual axis design enables better dual-axis synchronous control and improves system positioning accuracy.

Key Features & Services
  • Our engineers will contact you within two days to offer the most effective solution
  • Customized service offerings
  • Available in single or double shaft versions
  • Contract manufacturing services
  • Professional drivetrain solutions
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.5 A
Holding Torque450 mN.m
Resistance2.3 ohm
Inductance5.0 mH
Rotor Inertia57 g-cm²
Motor Weight0.3 kg
Number of Leads4
ConnectionBipolar

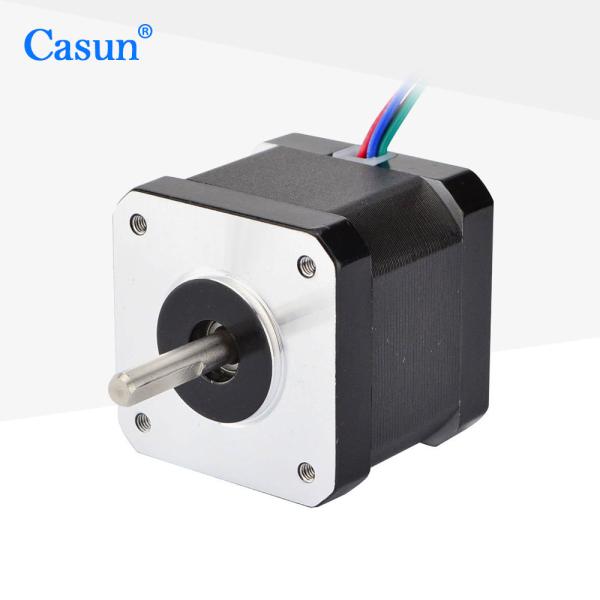

Appearance
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE

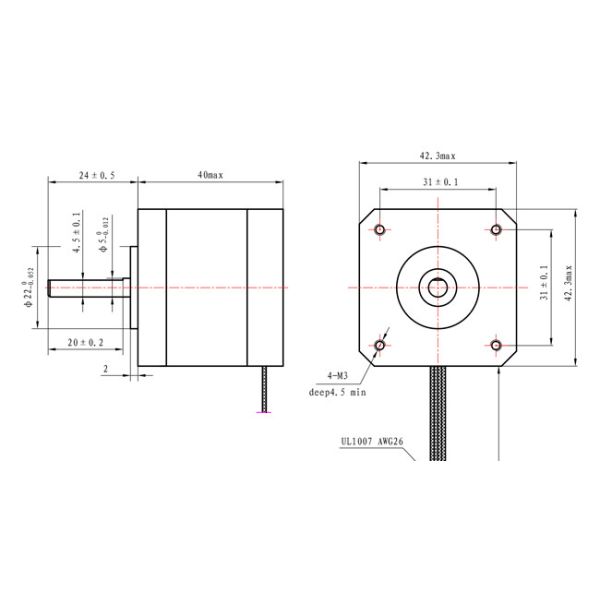

Dimensions
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
Encoder
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Brake
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Gearbox
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Shaft
Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE
Please click the button below to tell us your requirements and get a customized quote.
