Specifications
Brand Name :
Casun
Model Number :
86SHD4502-37B
Certification :
CE, ISO, ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
$100-$390
Payment Terms :
L/C, D/P, D/A, T/T
Supply Ability :
100000/pcs per month
Delivery Time :
15 workdays
Packaging Details :
Carton:36x29x14cm
Phase :
2
Type :
Hybrid
Holding torque :
12Nm
Current / phase :
6A
Step angle(degrees) :
1.8
shaft :
37mm
body :
149mm
Customized :
The motor can be designed &manufactured with customized request.
Description
Casun 2 Phase Nema 34 Hybrid Stepper Motor
High-torque 86x86x149mm stepper motor delivering 13N.m holding torque at 6.0A, ideal for CNC systems and engraving machines. This 4-axis/3-axis compatible motor provides precise positioning control for industrial automation applications.
Product Features
Configuration Options
Available in bipolar or unipolar versions with single- or double-shaft configurations
Custom Solutions
Professional drivetrain specialist offering custom manufacturing and dealer opportunities
Package Contents
Includes 4 motors, 4 drivers, 4 power supplies, and 1 controller

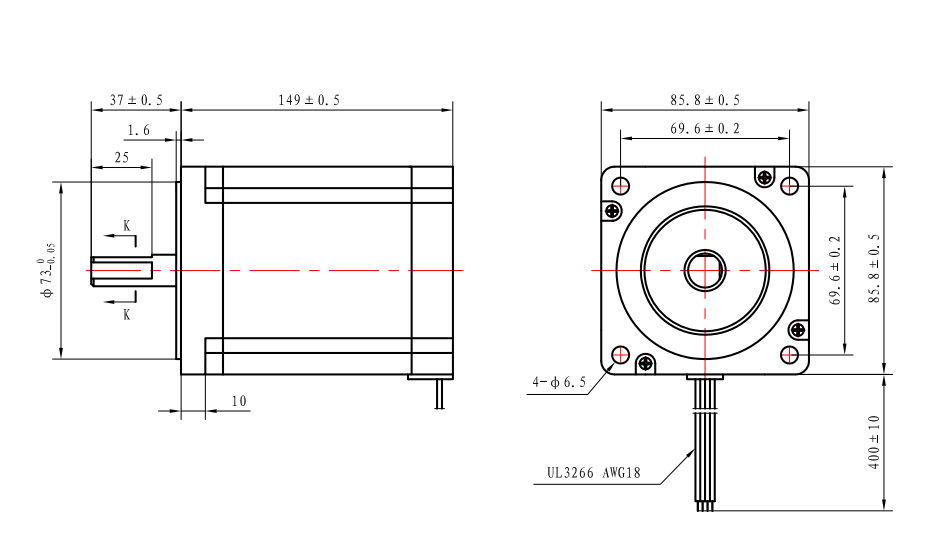

Motor Dimensions
Casun 2 Phase Nema 34 hybrid stepper motor 86x86x149mm 13N.m high torque 6.0A with 4 axis / 3axis for CNC for Engraving machine
Motor Specifications
Parameter Specification
Step Angle 1.8°
Frame Size 86 mm
Number of Phase 2 Phase
Rated Current 6.0 A
Holding Torque 12 N.m
Resistance 1.4 ohm
Inductance 13.5 mH
Rotor Inertia 3600 g-cm²
Motor Weight 5.0 kg
Shaft 37 mm
Connection Bipolar
Operating Specifications
Environmental Ratings:
Maximum Temperature: 80°C
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 minute
Customization Options
If our standard motor cannot meet your requirements, we offer comprehensive customization services including special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and more.
Available Accessories
Options: Encoder | Brake | Gearbox | Shaft
