Specifications
Brand Name :
Casun
Model Number :
42SHD4079-24BH
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
320mN.m
Current :
1.33A
Motor Length :
34mm
Shaft :
Milling Flat Shaft 24mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
1.33A 42×42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

1.33A 42×42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment With ROHS Certification. The 42mm stepper motor is designed for medical equipment applications, including precision medical imaging equipment and surgical robots. Excellent performance in applications requiring quick start/stop and frequent changes in movement direction.

Key Features
  • High torque and accuracy
  • Expertise in professional research and development manufacturing
  • We are looking for dealers!
  • Professional research and development manufacturing
  • Our engineers will respond within 48 hours to provide the best solution

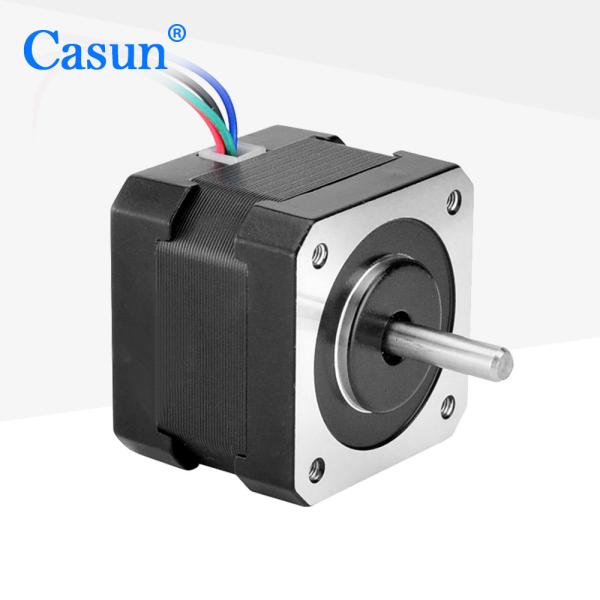

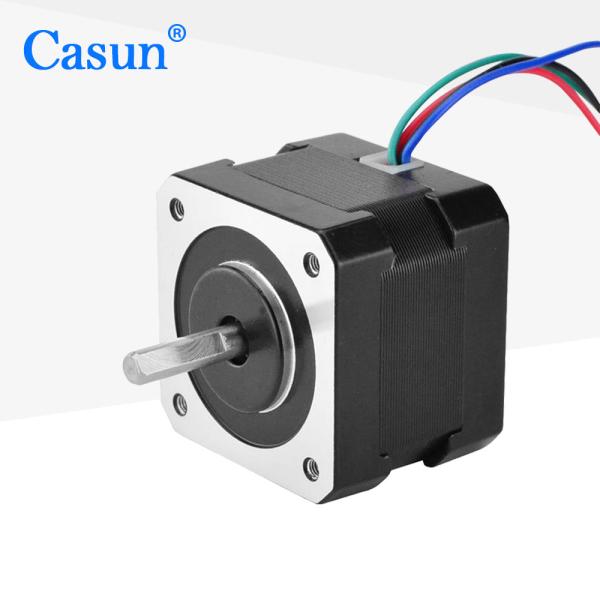

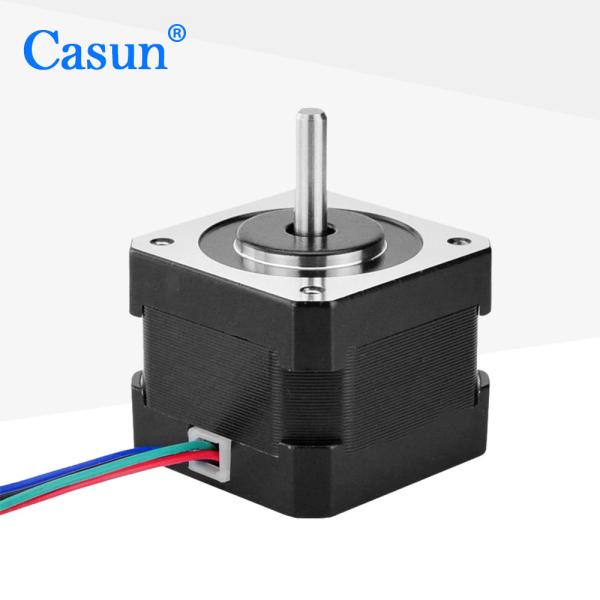

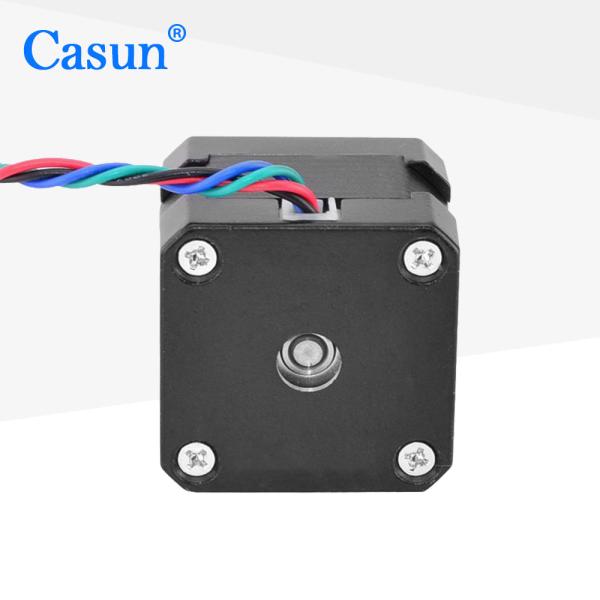

Appearance
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

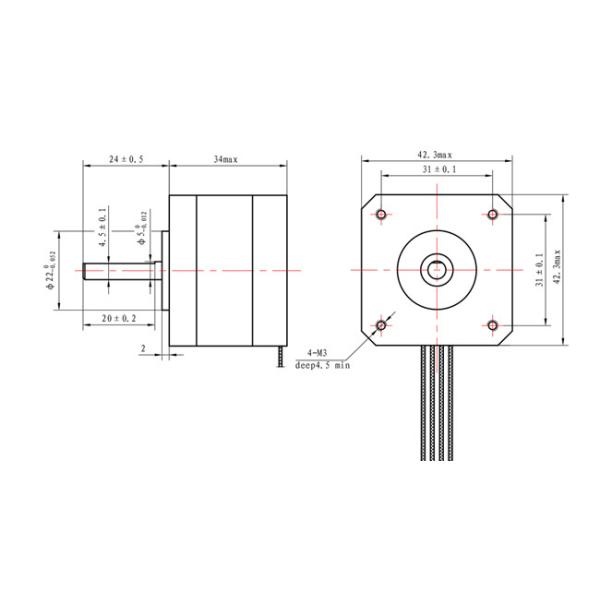

Dimensions
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.33 A
Holding Torque 320 mN.m
Resistance 2.7 ohm
Inductance 4.2 mH
Rotor Inertia 38 g-cm²
Motor Weight 0.2 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Submodels
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m
Brake
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m
Gearbox
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m
Shaft
1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

Please click the "Get a quote" button below to tell us your requirements.
