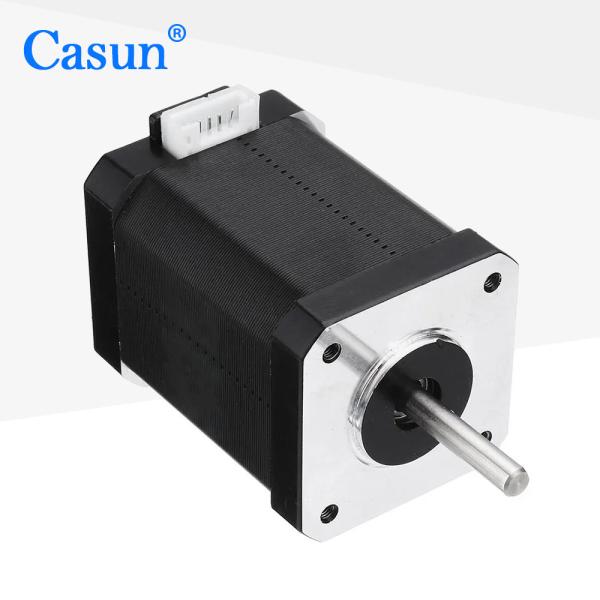

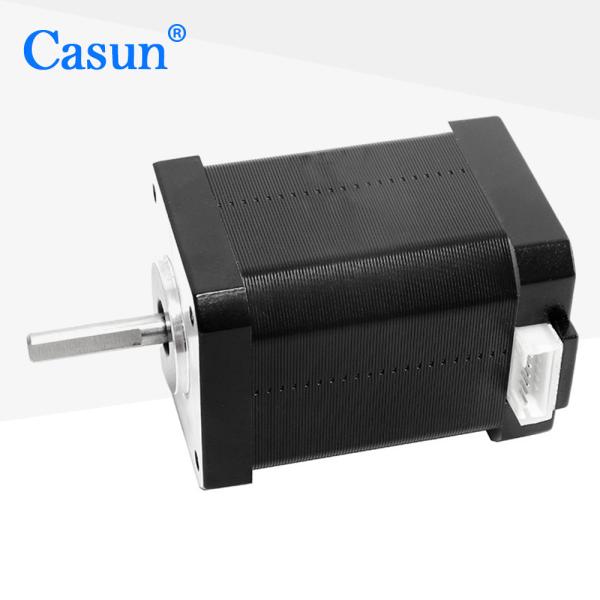

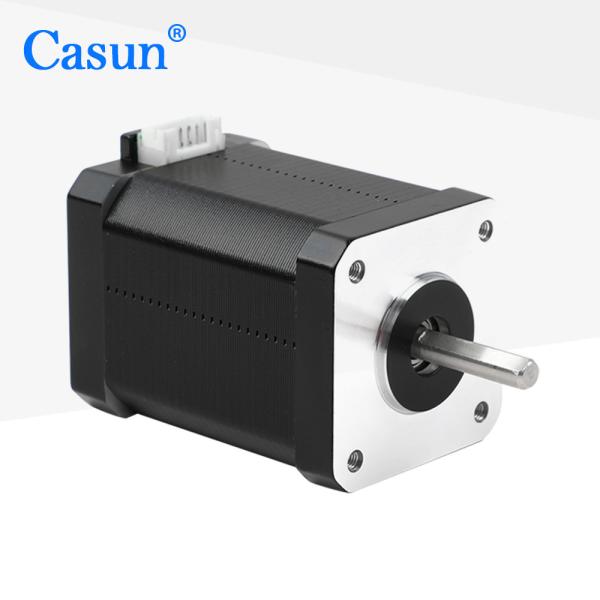

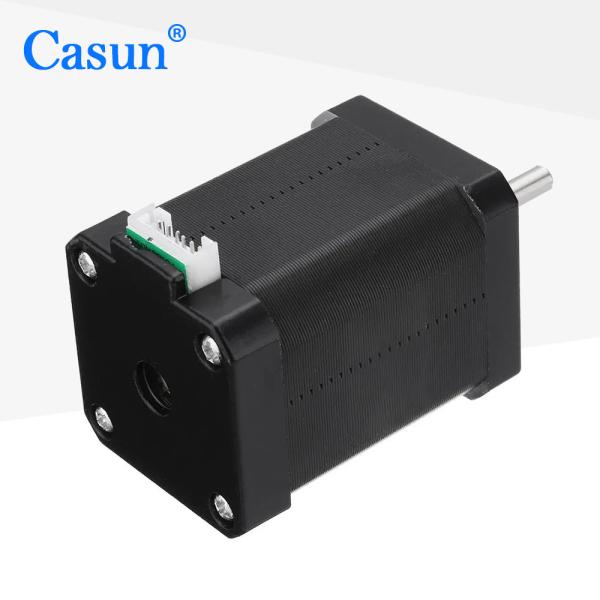

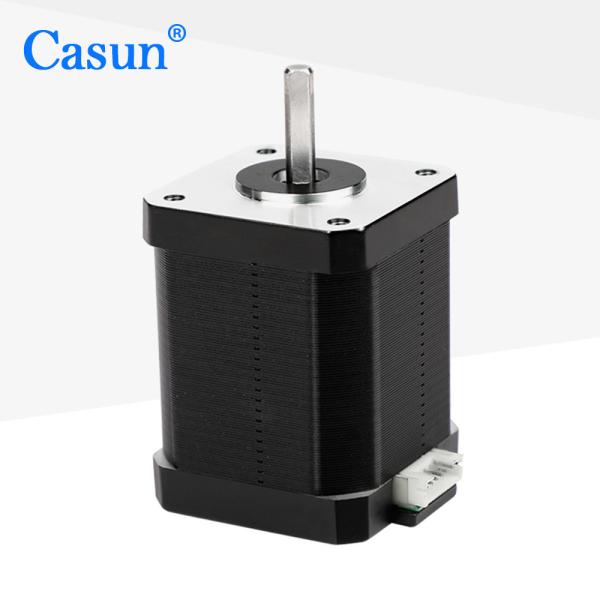

42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Specifications
Brand Name :
Casun
Model Number :
42SHD0801-25BH
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
600mN.m
Current :
1.5A
Motor Length :
60mm
Shaft :
Milling Flat Shaft 25mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot

The external dimensions of the NEMA 17 stepper motor are standardized, the structure is compact, and it is easy to install and integrate into various devices. Suitable for many automation and mechanical applications that require precise control.

Key Features
  • High torque and high precision
  • Ideal for high-tech industry and electronic industry equipment
  • 12 years of manufacturing experience serving over 800 customers
  • Engineering support available within 48 hours
Appearance
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Dimensions
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.5 A
Holding Torque 600 mN.m
Resistance 1.8 ohm
Inductance 3.2 mH
Rotor Inertia 102 g-cm²
Motor Weight 0.45 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Brake
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Gearbox
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
Shaft
42x42x60mm NEMA 17 Stepper Motor 4 Wire 0.6N.M For CNC Robot
