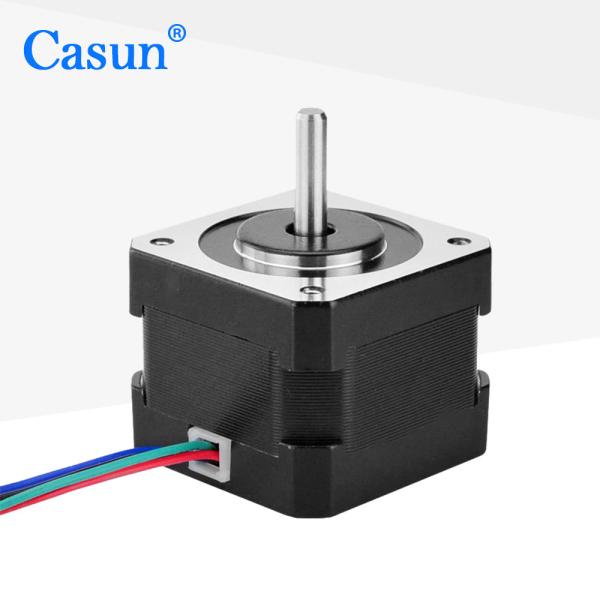

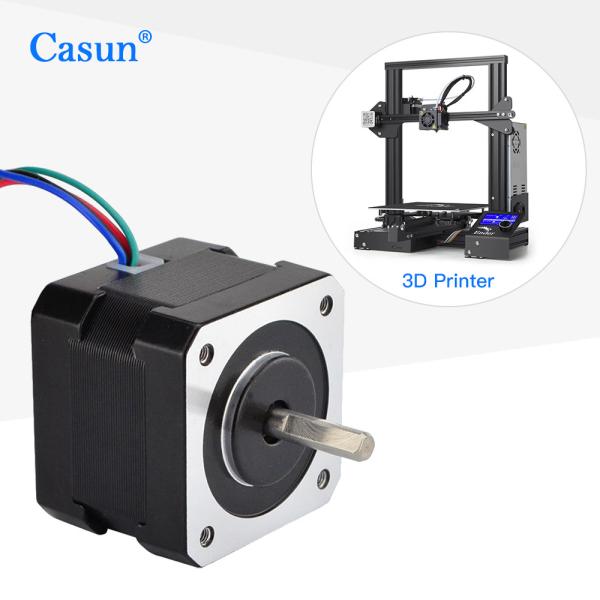

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Specifications
Brand Name :
Casun
Model Number :
42SHD4910-14B
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3-$4
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
90mN.m
Current :
1A
Motor Length :
21mm
Shaft :
Round Shaft 13.6mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Product Overview

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications
Step Angle 1.8°
Frame Size 42mm
Number of Phase 2 Phase
Rated Current 1A
Holding Torque 90mN.m
Resistance 3.3ohm
Inductance 3mH
Rotor Inertia 15g-cm²
Motor Weight 0.2 kg
Number of Leads 4
Connection Bipolar

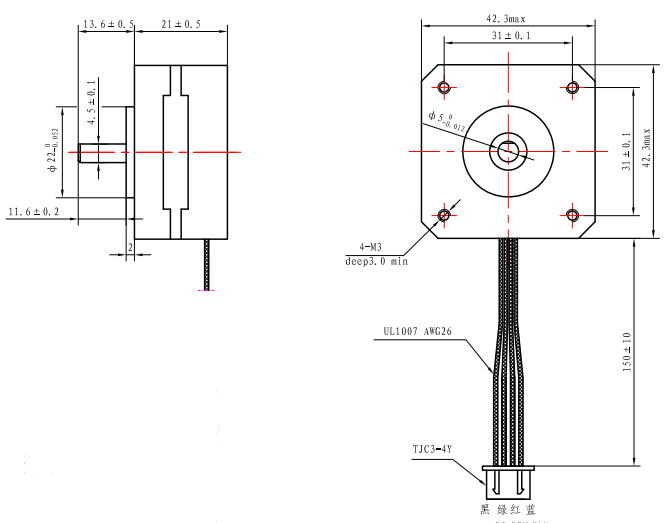

Appearance & Dimensions
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Download Resources

Technical documentation and specifications available for download.

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options
Encoder
Brake
Gearbox
Connector

Please click the button below to tell us your requirements and get a customized quote.
