Specifications
Brand Name :
Casun
Model Number :
42SHD0409-17B
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
420mN.m
Current :
0.5A
Motor Length :
48mm
Shaft :
Milling Flat Shaft 17mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
42SHD0409 High Quality 42×42×48mm Hybrid Stepping Motor
2 Phase Nema 17, 12V, 42N.cm for XYZ Axis Applications
Product Overview
The 42mm Hybrid Stepper Motor Series is a digital motor with very precise step angles. These motors can operate stably for extended periods and are resistant to external interference.
  • Ten-year warranty and secure shopping
  • Ideal for high-tech and electronic industry equipment
  • Available in single or double shaft versions
  • Versatile applications across various situations
  • Established in China for 12 years, serving over 800 customers
Motor Specifications
ParameterValue
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current0.5 A
Holding Torque420 mN.m
Resistance24 ohm
Inductance32 mH
Rotor Inertia72 g-cm²
Motor Weight0.38 kg
Number of Leads4
ConnectionBipolar

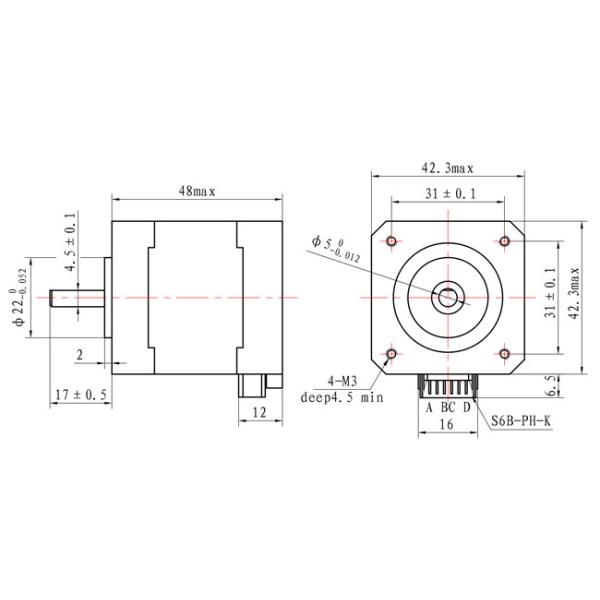

Appearance & Dimensions
【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis 【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 minute
Available Submodels
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A
Customization Options
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Encoder Brake Gearbox Shaft
【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis 【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis 【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis 【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis
