NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Specifications
Brand Name :
Casun
Model Number :
42SHD0411-24B2H
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Current :
1.8A
Rated voltage :
3.24V
Holding Torque :
520mN.m
Motor Length :
48mm
Shaft :
Milling Flat Shaft 24mm Length
Weight :
0.4kg
Customized :
The motor can be designed &manufactured with customized request.
Description
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Product Overview

NEMA 17 42×42×48mm 2 Phase 1.8° Stepper Motor 1.8A 0.52Nm for 3D Printer. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

  • Bipolar or unipolar versions available
  • For high-tech industry and electronic industry equipment
  • Available in single or double shaft versions
  • High torque and high precision
  • Professional research and development manufacturing
Appearance
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque

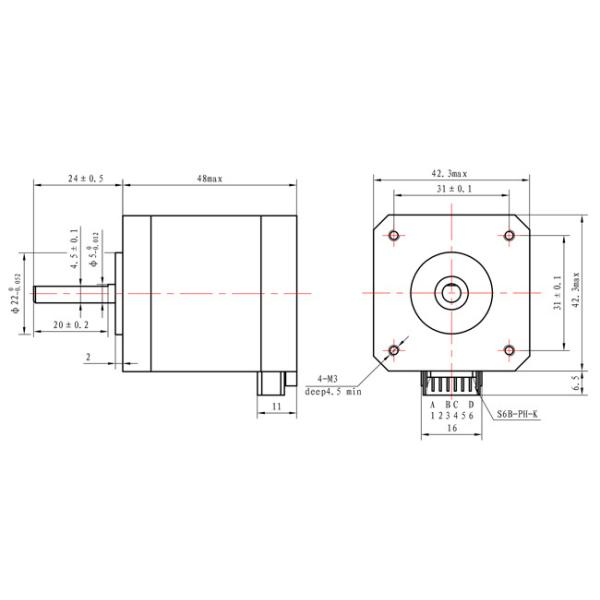

Dimensions
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.8A
Holding Torque 520 mN.m
Resistance 1.8 ohm
Inductance 3.2 mH
Rotor Inertia 72 g-cm²
Motor Weight 0.4 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Available Options
Encoder
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Brake
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Gearbox
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Shaft
NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions
Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A; Language Spoken: English, Chinese, Japanese
