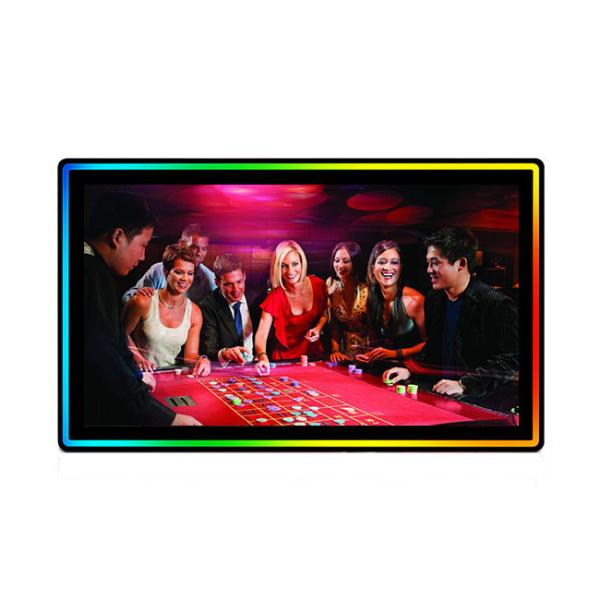

21.5 Inch LED Gaming Monitor Tempered Glass Gradient Anti Glare LCD PCAP

Specification
| Product name | 21.5’’ PCAP Touch Monitor | |
| Model numer | RCS-M215-LED | |
| Anti-glare LCD Panel | ||
| IP rated front panel | IP65 | |
| Screen diagonal (Inch/cm): | 21.5/54.69 | |
| Display active screen size: | 47.70×26.80 | |
| Aspect ratio: | 16:9 | |
| Physical resolution: | 1920×1080 | |
| 1920×1200 | ||
| Colours displayed: | 16.7M | |
| Brightness (cd/m2): | 250 | |
| Contrast: | 1000:1 | |
| Typical reaction time Tr/ Tf : | 1.5/3.5 (ms) | |
| Visual Angle horizontal/vertical : | 170/160(°) | |
| Backlight / Backlight Lifetime (hours): | LED / 40,000 | |

External Connectors

| Video | 1x VGA | |
| 1x HDMI | ||
| Audio | 1x PC-Audio | |
| 1x Earphone-Out | ||
| Touch Connector | 1x USB | |
| Connectors | 1x 12V DC-IN | |

Operation / Mechanical

| Operating Temperature | -10 ~ +65 (°C) |
| Humidity Range (RH) | 10%-90% |
| Net weight (kg) | 7.3 |
| Gross weight (kg) | 9.30 (incl. cartonage) |
| Housing material | Acrylic |
| Housing (cm) LxWxH | 52.64x32.23x4.95 |
| Mounting | VESA 100/ VESA 75  |

Power

| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switch- ing; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 28 |
| Stand-By Consumption (W) | <1 |

Application:
