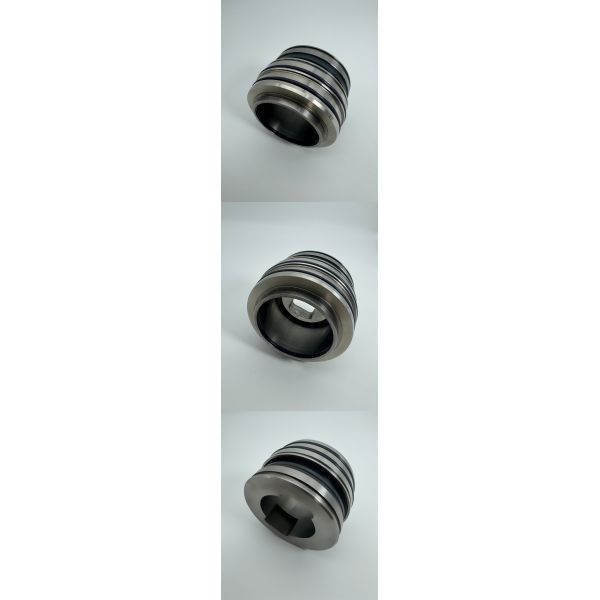

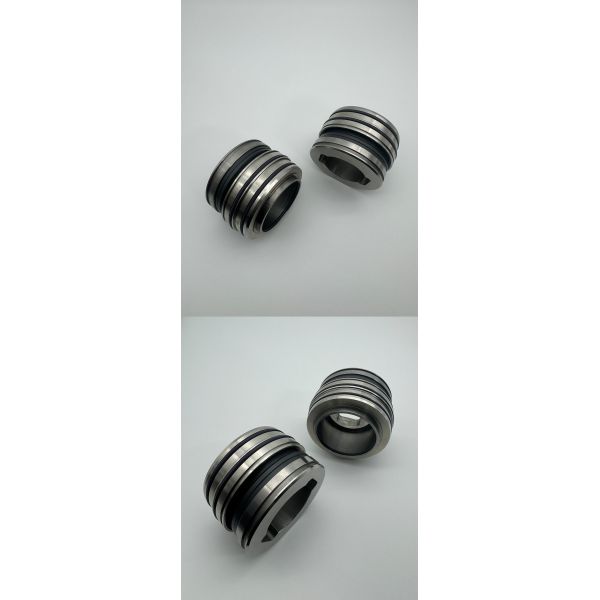

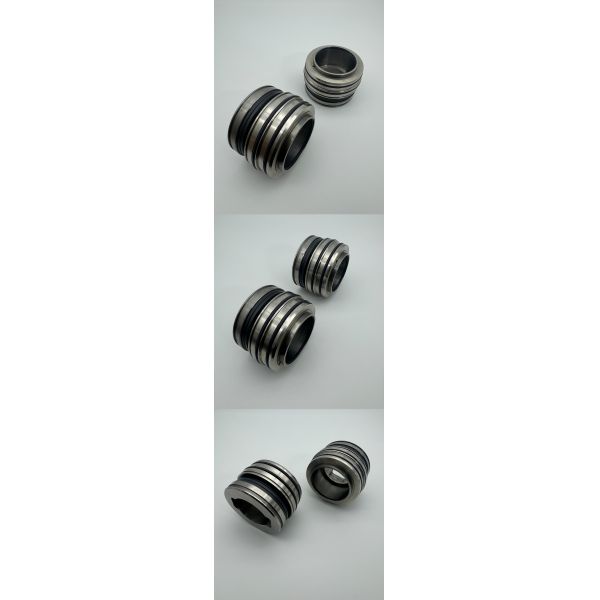

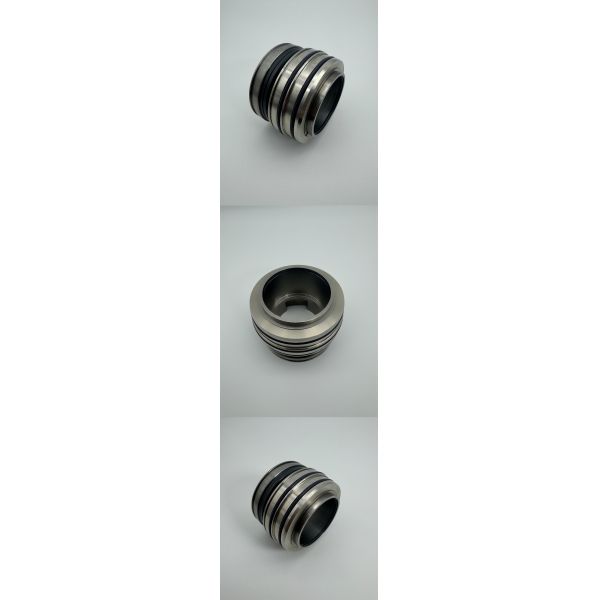

Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump
Specifications
Mtrl mech.seal spring :
1.4571, 2.4610
Mtrl Primary ring inboard :
Q1 [SIC, DRUCKLOS GESINTERT]
Packaging Details :
Carton
Certification :
ISO9001
Design :
Stationary
Maximum allowable dynamic pressure :
25 bar
Maximum allowable sliding velocity :
16 m/s
Maximum allowable fluid temperature :
140 °C
Mtrl Secondary seal inboard :
FKM, EPDM
Minimum allowable fluid temperature :
-40 °C
Mtrl metallic compon.mech.seal :
1.4501, 1.4571
Direction of rotation :
Bi-directional
Maximum allowable static pressure :
37.5 bar
Model Number :
4EB
Brand Name :
BESTSEAL
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Spring design :
Multiple springs
Mtrl Mating ring inboard :
A [CARBON, METAL-IMPREGNATED], B [CARBON, RESIN-IMPREGNATED], Q1 [SIC, DRUCKLOS GESINTERT]
Supply Ability :
1000000/Month
Place of Origin :
CHINA
Balancing :
Balanced mechanical seal
MOQ :
1pc
Sealing type :
Single
Delivery Time :
15 working days
Cartridge seal :
Yes
Description
Ksb 4EB Single Cartridge Mechanical Seal For Etanorm-R Etaline-R Pump

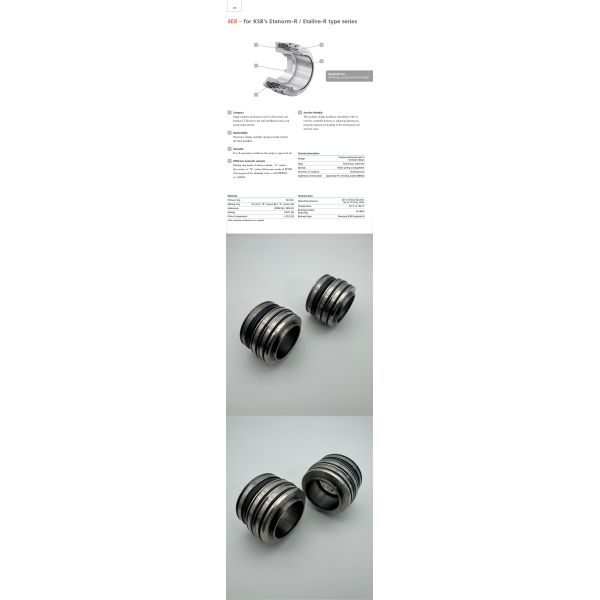

Pump-specific cartridge mechanical seal
4EB

For the Etanorm-R/Etaline-R pump type series. Single balanced cartridge seal in stationary design. Tailored to the pump's seal installation space and requirements. The seal design facilitates installation without adjusting dimensions and ensures optimal pre-loading.

Temperature -40℃ to 200℃, dependent on the elastomer
Pressure Up to 8 bar
Speed Up to 18 m/s
End play/axial float allowance ±0.1mm
Size 65mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Carbon, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Idividual Packing Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
Main Applications
  • Drinking water
  • Service water
  • Hot water
Technical Data
Cartridge seal:Yes
Design:Stationary
Balancing:Balanced mechanical seal
Sealing type:Single
Maximum allowable fluid temperature:140 °C
Benefits
  • Single cartridge mechanical seal, bi-directional and balanced. Tailored to the pump's seal installation space and requirements.
  • The seal design facilitates installation without assembly fixtures or adjusting dimension, ensuring optimal pre-loading of the mechanical seal and low wear.
  • Stationary design; multiple springs located outside the fluid handled
Technical Data
Maximum allowable axial movement:1.5 mm
Minimum allowable axial movement:-1.5 mm
Component type series:KSB Etanorm-R [B], KSB Etaline-R [A]
Cartridge seal:Yes
Maximum allowable dynamic pressure:25 bar
Design:Stationary
Balancing:Balanced mechanical seal
Sealing type:Single
Mtrl metallic compon.mech.seal:1.4501, 1.4571
Mtrl mech.seal spring:1.4571, 2.4610
Mtrl Secondary seal inboard:FKM,EPDM
Mtrl Mating ring inboard:A [CARBON, METAL-IMPREGNATED],
B [CARBON, RESIN-IMPREGNATED],
Q1 [SIC, DRUCKLOS GESINTERT]
Mtrl Primary ring inboard:Q1 [SIC, DRUCKLOS GESINTERT]
Direction of rotation:Bi-directional
Maximum allowable sliding velocity:16 m/s
Spring design:Multiple springs
Maximum allowable static pressure:37.5 bar
Maximum allowable fluid temperature:140 °C
Minimum allowable fluid temperature:-40 °C
