Specifications
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Setting Clips :
Zinc Alloy / Metal
Model Number :
SISS - SISR
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Face :
TC / Ceramic / SiC
MOQ :
1pc
Packaging Details :
Carton
Sleeve :
316L Stainless Steel
Drive Screws :
Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Supply Ability :
1000000/Month
Gland :
316 Stainless Steel
Setting Clip Screws :
Stainless Steel
Clamp Ring :
316L Stainless Steel
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Spacer Ring :
316L Stainless Steel
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Certification :
ISO9001
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Place of Origin :
CHINA
Anti-tamper Screws :
Stainless Steel
Gasket :
AF1 / GFT
Brand Name :
BESTSEAL
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Description

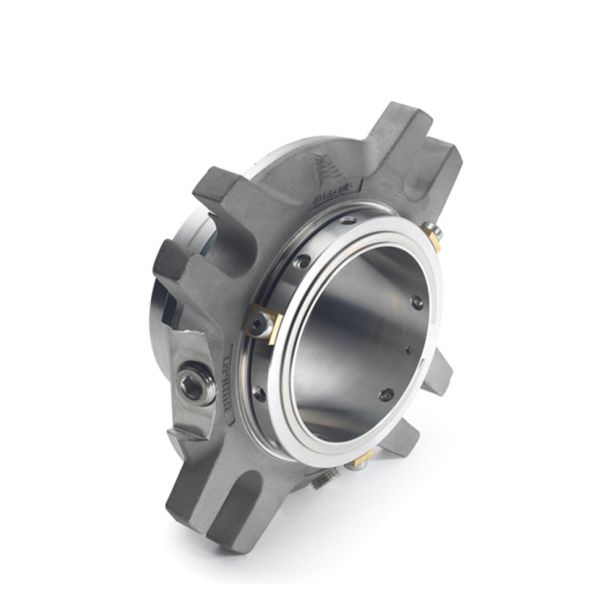

AESSEAL SISS SISR Single Stationary Cartridge Mechanical Seals for KSB CPK Pump


Cartridge Mechanical Seals

Single Seals

SISS - SISR

Single Stationary Mechanical Seals

Modular range of stationary cartridge mechanical seals for general applications in all industry sectors.

Features

  • High-integrity drive design features for improved reliability and seal life
  • Supplied with Quench, Flush and Drain ports as standard
  • Optional modular restriction bush (SISR™) supports Plan 62 allowing control of the seal environment, maximizing seal life
  • Hydraulically balanced seal face technology for reduced power consumption
  • Non-shaft-fretting sleeve elastomer and positive set screw drive
  • Multiple spring seal-face loading
  • Stationary design suitable for high speed applications
  • Sizes available from 1.000” to 3.375” (24mm - 85mm) in standard and ANSI Plus gland formats

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal
Your Fast-Track Alternative to AESSEAL SISS - SISR
Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
