Specifications
Stationary Face :
TC / Ceramic / SiC
Clamp Ring :
316L Stainless Steel
Sleeve O Ring :
FKM / EPR / FFKM / TFE/P
Spacer Ring :
316L Stainless Steel
MOQ :
1pc
Rotary Bellows Face - SAC :
316 SS - AM350 - C42 - Carbon / TC / SiC
Setting Clip Screws :
Stainless Steel
Certification :
ISO9001
Supply Ability :
1000000/Month
Rotary Bellows Face - SHS :
316 SS - Alloy 276 - 316 SS - Carbon / TC / SiC
Stationary Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Gasket :
AF1 / GFT
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Rotary Bellows Face - HHH :
Alloy 276 - Alloy 276 - Alloy 276 - Carbon / TC / SiC
Drive Screws :
Stainless Steel
Anti-tamper Screws :
Stainless Steel
Packaging Details :
Carton
Place of Origin :
CHINA
Setting Clips :
Zinc Alloy / Metal
Sleeve :
316L Stainless Steel
Model Number :
CSM
Delivery Time :
15 working days
Rotary Drive Screws :
Stainless Steel
Brand Name :
BESTSEAL
Gland :
316 Stainless Steel
Rotary Face Sealing Ring :
FKM / EPR / FFKM / TFE/P / Graphite
Description

AESSEAL CSM Single Cartridge Mechanical Seals for Mixers and Agitator


Cartridge Mechanical Seals

Mixer Seals

CSM

Single Mixer Seal

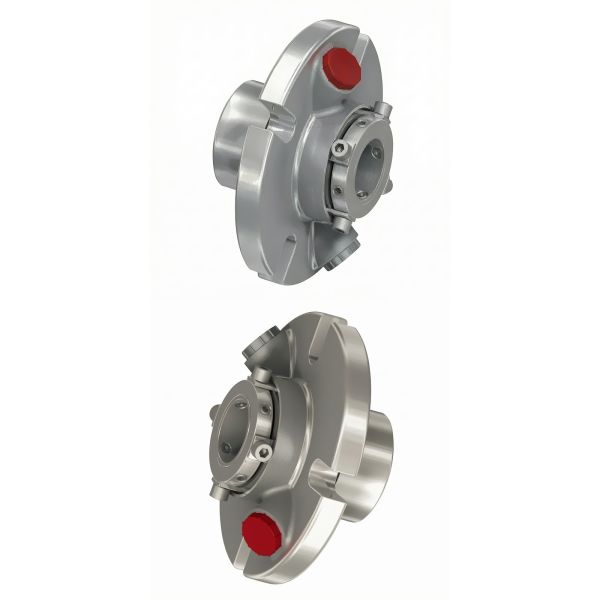

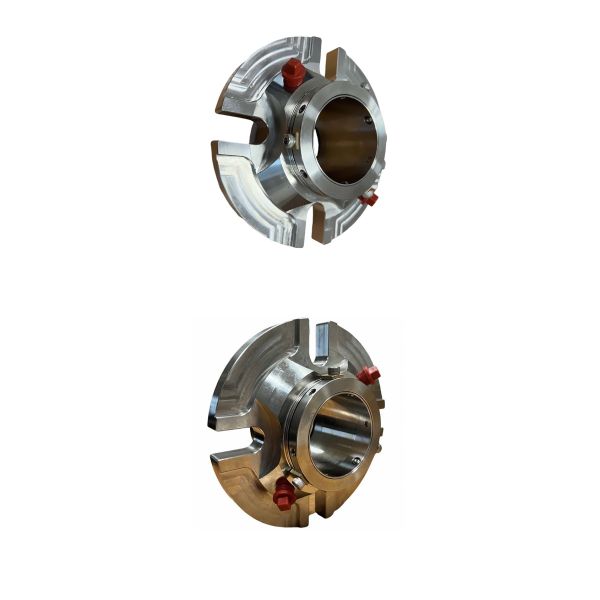

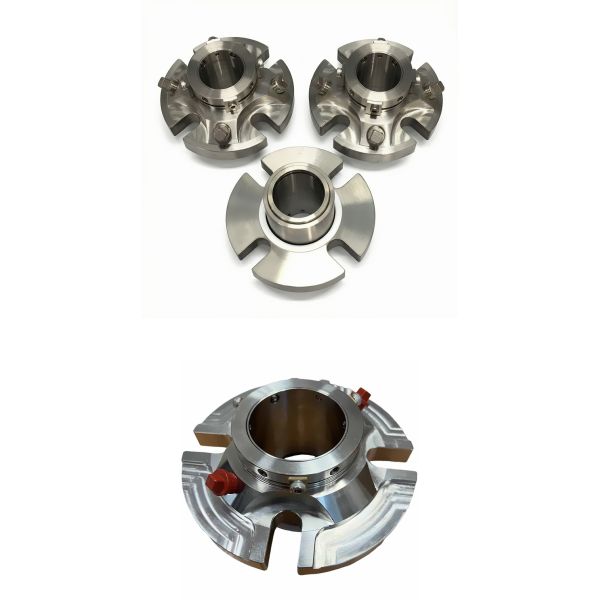

The CSM™ cartridge single seal for mixers is available in a wide range of seal face, elastomer and alloy combinations to suit individual applications.

Features

  • Single cartridge seal
  • Can accept radial movement up to 0.062" (1.5mm)
  • Can be used on mixers with long overhanging shafts
  • Suitable for top entry agitator service and vapour applications
  • Exotic alloy wetted parts available for use with corrosive chemicals

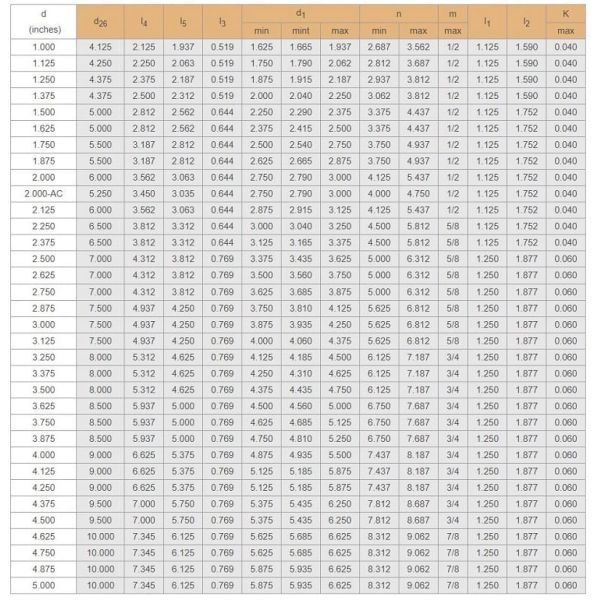

  • Sizes available from 1.000" to 5.000" (24mm - 125mm) in standard and ANSI Plus gland formats larger sizes up to 12.000" (300mm) available on request

Performance Capabilities

Temperature -20℃ to 200℃, dependent on the elastomer
Pressure Up to 2.5MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Brand BESTSEAL
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
