Specifications
Delivery Time :
15 working days
Materials :
TC/TC/Viton/SS316/SS316 - TC/Carbon/Viton
Model Number :
Type HJCK-50
Model NO. :
Type HJCK-50
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Linear Speed :
5 m/s or less
Certification :
ISO9001
Specification :
Inner Diameter: 50 mm, 60 mm and 70 mm
MOQ :
1pc
Packaging Details :
Carton
Temperature :
-10 ~ 180 ºC
Supply Ability :
1000000/Month
Mediums :
Water, oil, food, weak acid and alkali.
Brand Name :
BESTSEAL
Structure :
Double End
Place of Origin :
CHINA
Pressure :
0.6 MPa or less
Description

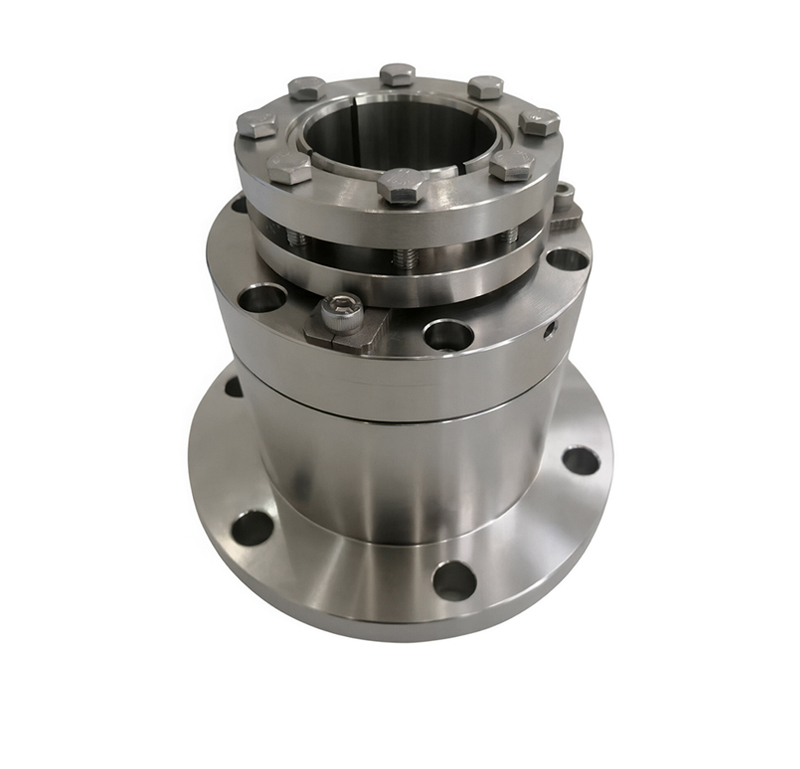

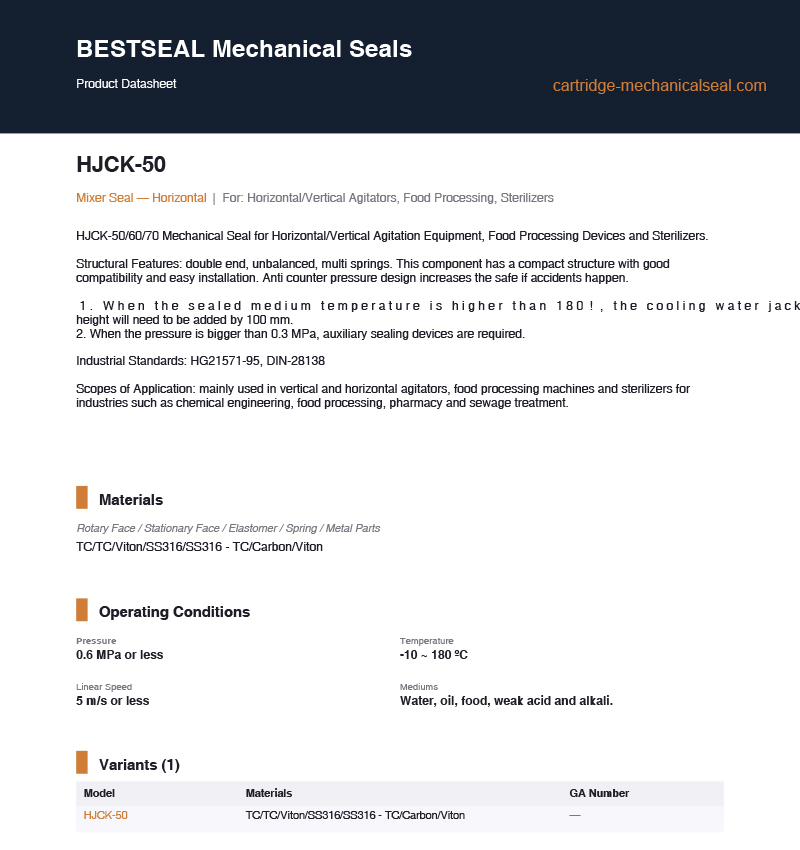

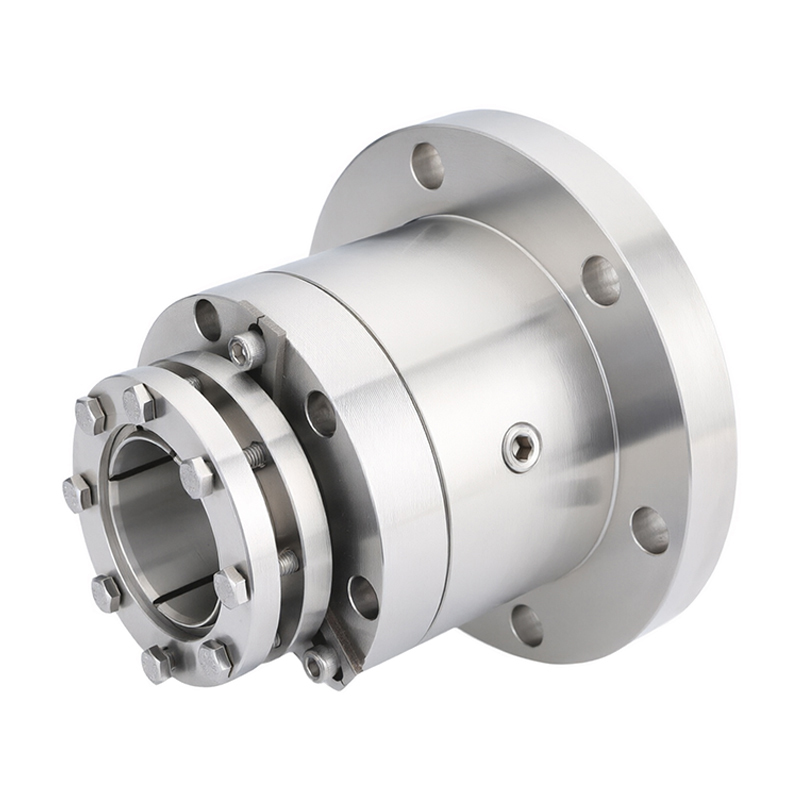

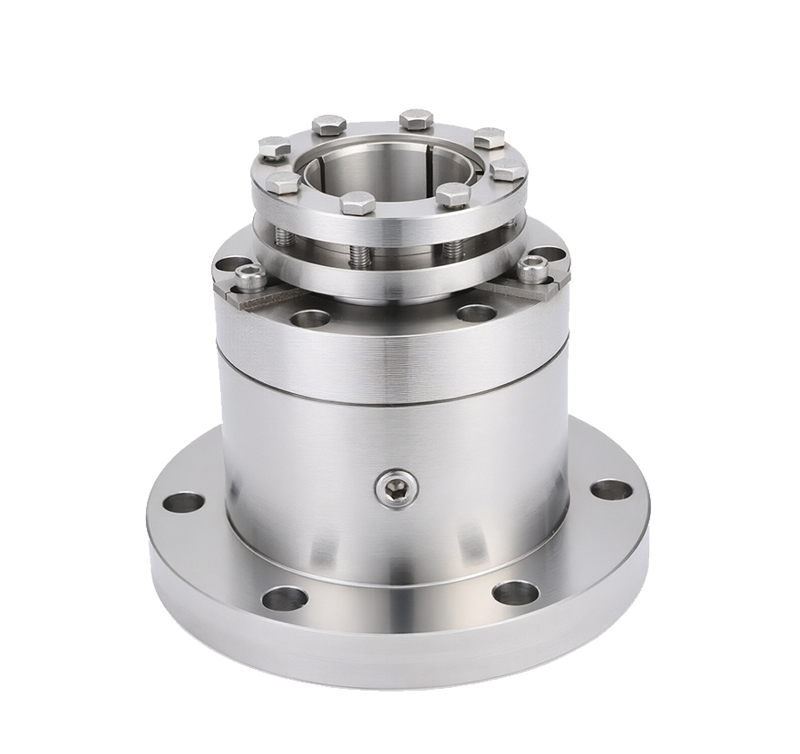

Type HJCK-50 Double Cartridge Mechanical Seal for Horizontal Vertical Agitator Mixer

HJCK-50

For: Horizontal/Vertical Agitators, Food Processing, Sterilizers

HJCK-50/60/70 Mechanical Seal for Horizontal/Vertical Agitation Equipment, Food Processing Devices and Sterilizers.

Structural Features: double end, unbalanced, multi springs. This component has a compact structure with good compatibility and easy installation. Anti counter pressure design increases the safe if accidents happen.

When the sealed medium temperature is higher than 180 ℃, the cooling water jacket is needed and the total installation height will need to be added by 100 mm.

When the pressure is bigger than 0.3 MPa, auxiliary sealing devices are required.

Industrial Standards: HG21571-95, DIN-28138

Application: mainly used in vertical and horizontal agitators, food processing machines and sterilizers for industries such as chemical engineering, food processing, pharmacy and sewage treatment.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

TC/TC/Viton/SS316/SS316 - TC/Carbon/Viton

Model Materials GA
HJCK-50 TC/TC/Viton/SS316/SS316 - TC/Carbon/Viton —

Pressure: 0.6 MPa or less

Temperature: -10 ~ 180 ºC

Linear Speed: 5 m/s or less

Mediums: Water, oil, food, weak acid and alkali.

Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
