Specifications
Model Number :
HSH(L)U-D
Pressure :
p1 = vacuum … 60 bar (870 PSI)
Certification :
ISO9001
Temperature :
t1 = -40 °C ... +200 °C (-40 °F ... +392 °F)
Place of Origin :
CHINA
Sliding velocity :
vg = 0 ... 5 m/s (0 ... 16 ft/s)
MOQ :
1pc
Packaging Details :
Carton
Seal faces :
Carbon graphite
Supply Ability :
1000000/Month
Secondary seals and metallic parts :
application and customer's requirement
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Seats :
Silicon carbide, FDA conform
Delivery Time :
15 working days
Brand Name :
BESTSEAL
Shaft diameter :
d1 = ... 500 mm ( ... 19.69")
Description

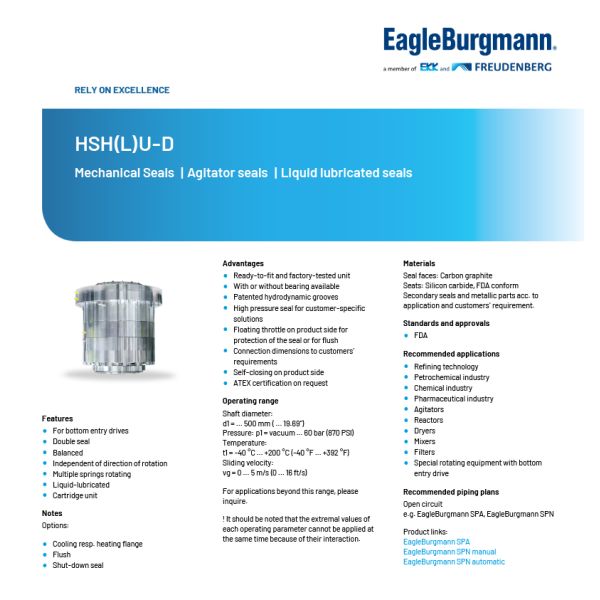

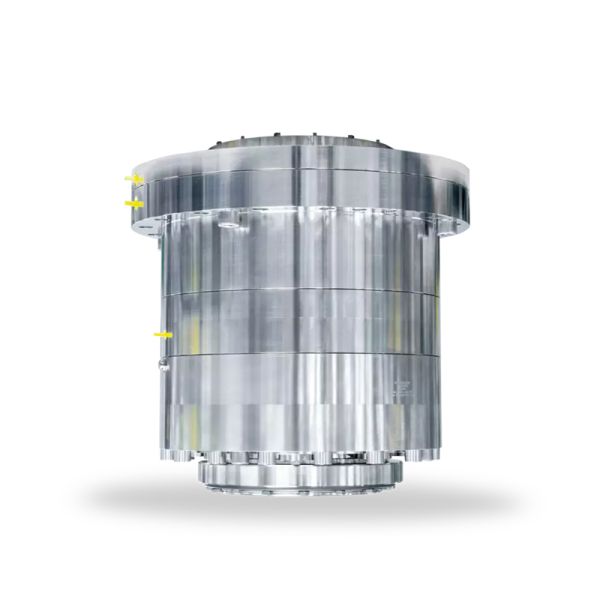

EagleBurgmann HSH(L)U-D Reaction Kettle Cartridge Mechanical Seal for Agitators

Mechanical Seals

Agitator seals

Liquid lubricated seals

HSH(L)U-D

Advantages

  • Ready-to-fit and factory-tested unit
  • With or without bearing available
  • Patented hydrodynamic grooves
  • High pressure seal for customer-specific solutions
  • Floating throttle on product side for protection of the seal or for flush
  • Connection dimensions to customers' requirements
  • Self-closing on product side
  • ATEX certification on request

Features

  • For bottom entry drives
  • Double seal
  • Balanced
  • Independent of direction of rotation
  • Multiple springs rotating
  • Liquid-lubricated
  • Cartridge unit

Standards and approvals

  • FDA

Recommended applications

  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Agitators
  • Reactors
  • Dryers
  • Mixers
  • Filters
  • Special rotating equipment with bottom entry drive

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Agitator seals

Your Fast-Track Alternative to EagleBurgmann HSH(L)U-D

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
