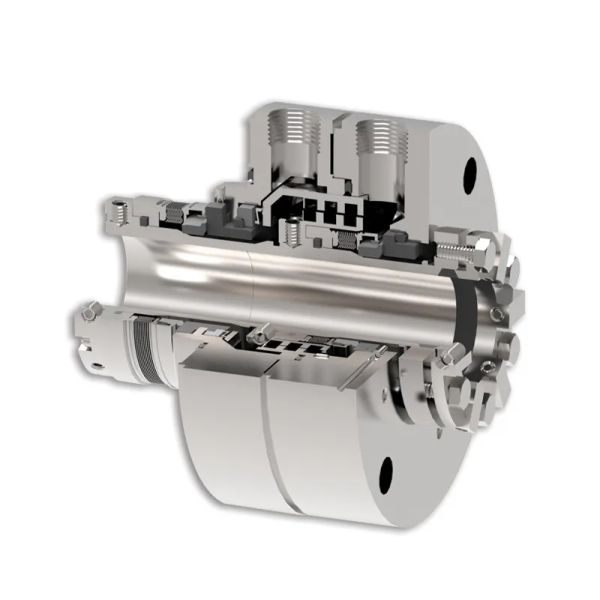

Dependable API 682 Cartridge Seals

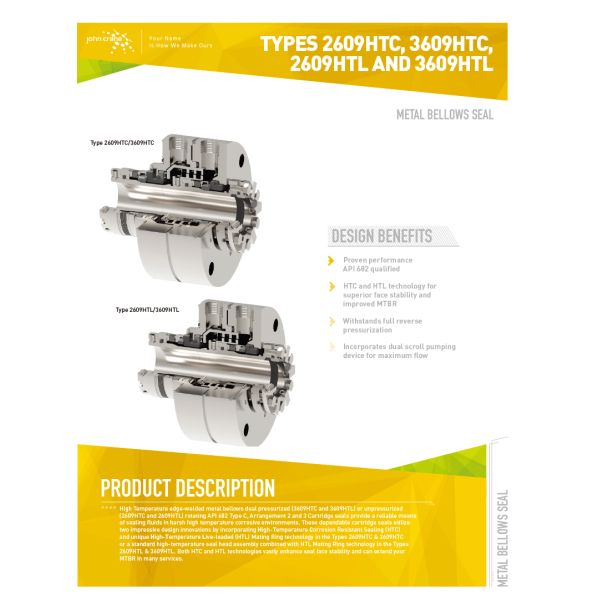

The Type 2609 are dependable API 682 cartridge seals that utilize two impressive design innovations by incorporating high-temperature, corrosion-resistant (HTC) sealing and unique high-temperature, live-loaded (HTL) mating ring technology in dual tandem seal arrangements.

This new design vastly enhances seal face stability over conventional designs and can extend your MTBR in many services.

These seals have ID and OD pressure capability and can withstand reverse pressurization.

The seals come with a pumping ring standard, and the bellows have an all Inconel metallurgy for sealing the harshest high-temperature corrosive fluids.

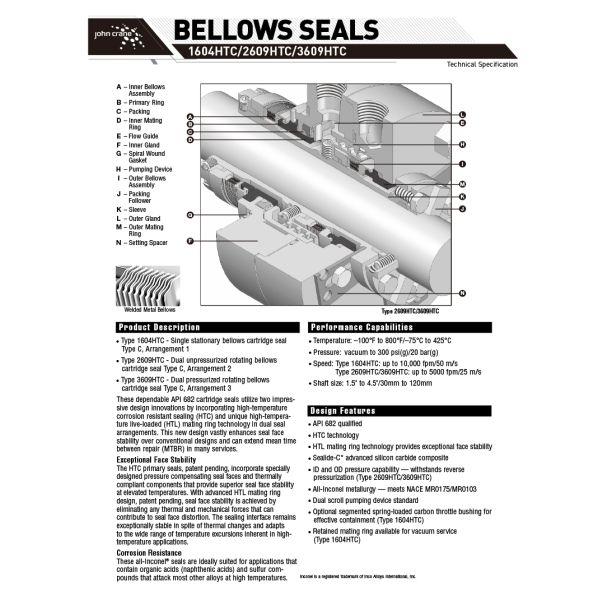

The Type 2609HTC is a dual unpressurized rotating bellows cartridge Type C, Arrangement 2.

• Premium API 682 qualified dual rotating cartridge seals Type C, Arrangement 2 and 3.

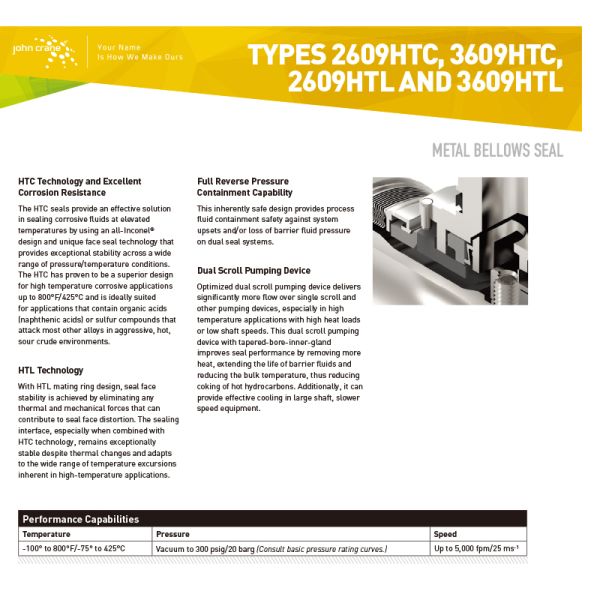

• These dependable cartridge seals utilize two impressive design innovations by incorporating high-temperature, corrosion-resistant sealing (HTC) and unique high-temperature, live-loaded (HTL) mating ring technology.

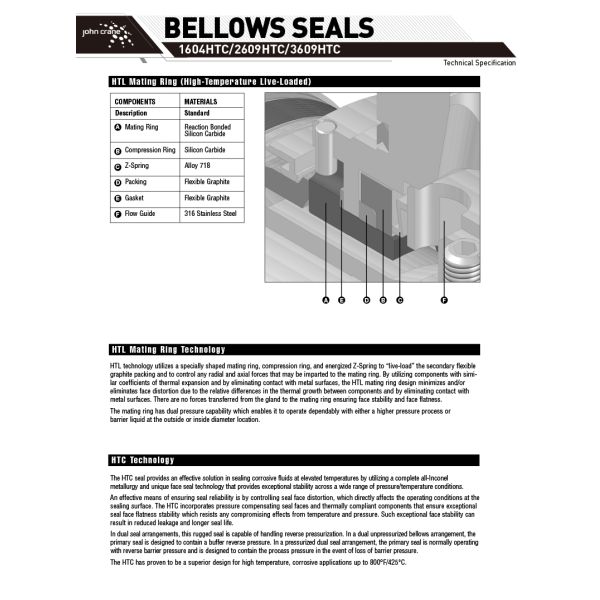

• HTL mating ring technology provides exceptional face stability by eliminating any thermal and mechanical forces that can contribute to seal face distortion.
• HTC primary seals incorporate specially designed pressure compensating seal faces and thermally compliant components that provide superior face stability at elevated temperatures.
• Advanced silicon carbide composite.
• ID and OD pressure capability; withstands reverse pressurization.

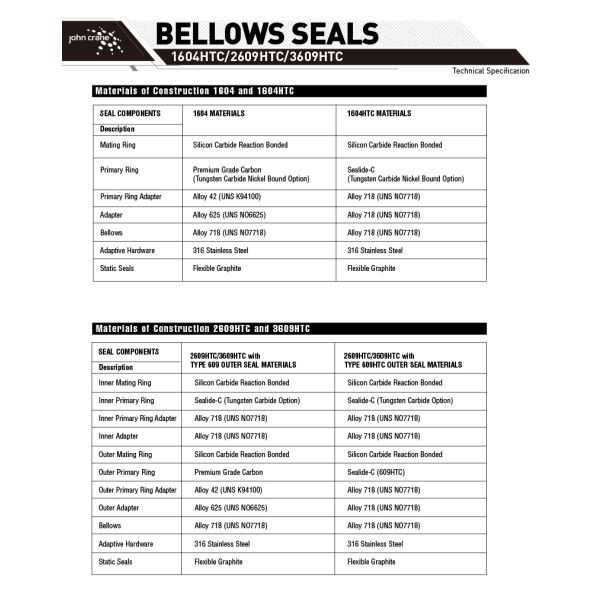

• All-Inconel metallurgy edge-welded metal bellows; meets NACE MR0175/MR0103.
• Pumping ring standard.

Parameters

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL John Crane Cartridge Mechanical Seals

Your Fast-Track Alternative to John Crane Type 2609

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
