HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps
Specifications
Delivery Time :
15 working days
Model Number :
Type HTM
Materials :
SiC (Rotary) / SiC (Stationary) / Viton/EPDM/FFKM (Elastomers) / SS304/SS316/HC-276 (Springs) / SS304/SS316L/2507/2205 (Metal Parts)
MOQ :
1pc
Packaging Details :
Carton
Temperature :
-20 ~ 120 ºC
Supply Ability :
1000000/Month
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Certification :
ISO9001
Pressure :
0 ~ 0.8 MPa
Brand Name :
BESTSEAL
Linear Speed :
3000 r/min or less
Place of Origin :
CHINA
Mediums :
Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid concentration: not higher than 30%.

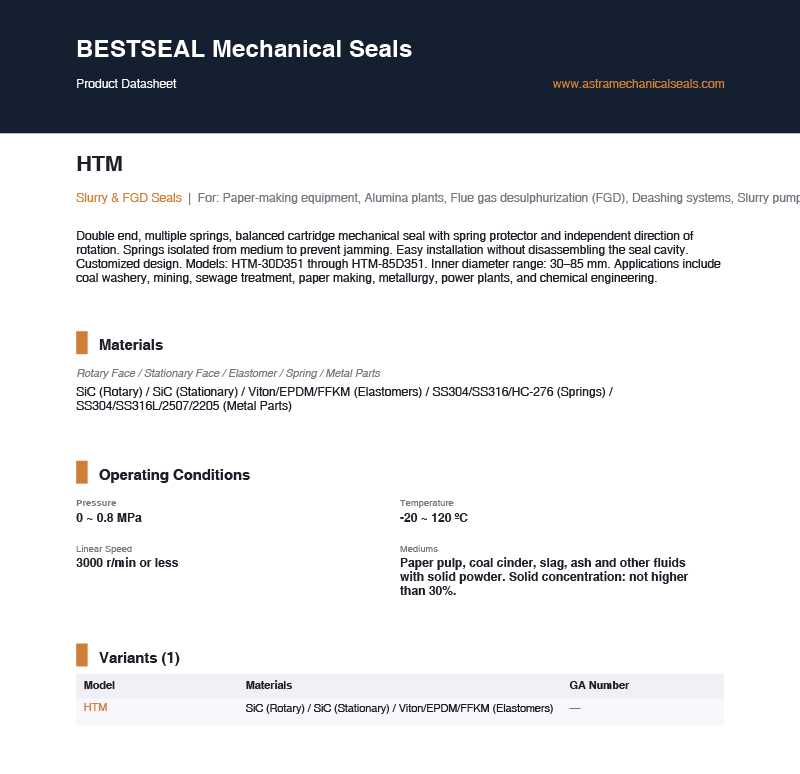

Description

HTM Series Double Cartridge Mechanical Seal for Slurry Circulation Pumps

HTM

For: Paper-making equipment, Alumina plants, Flue gas desulphurization (FGD), Deashing systems, Slurry pumps

Double end, multiple springs, balanced cartridge mechanical seal with spring protector and independent direction of rotation. Springs isolated from medium to prevent jamming. Easy installation without disassembling the seal cavity. Customized design. Models: HTM-30D351 through HTM-85D351. Inner diameter range: 30–85 mm. Applications include coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC (Rotary) / SiC (Stationary) / Viton/EPDM/FFKM (Elastomers) / SS304/SS316/HC-276 (Springs) / SS304/SS316L/2507/2205 (Metal Parts)

Model Materials GA
HTM SiC (Rotary) / SiC (Stationary) / Viton/EPDM/FFKM (Elastomers) / SS304/SS316/HC-276 (Springs) / SS304/SS316L/2507/2205 (Metal Parts) —

Pressure: 0 ~ 0.8 MPa

Temperature: -20 ~ 120 ºC

Linear Speed: 3000 r/min or less

Mediums: Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid concentration: not higher than 30%.

Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
