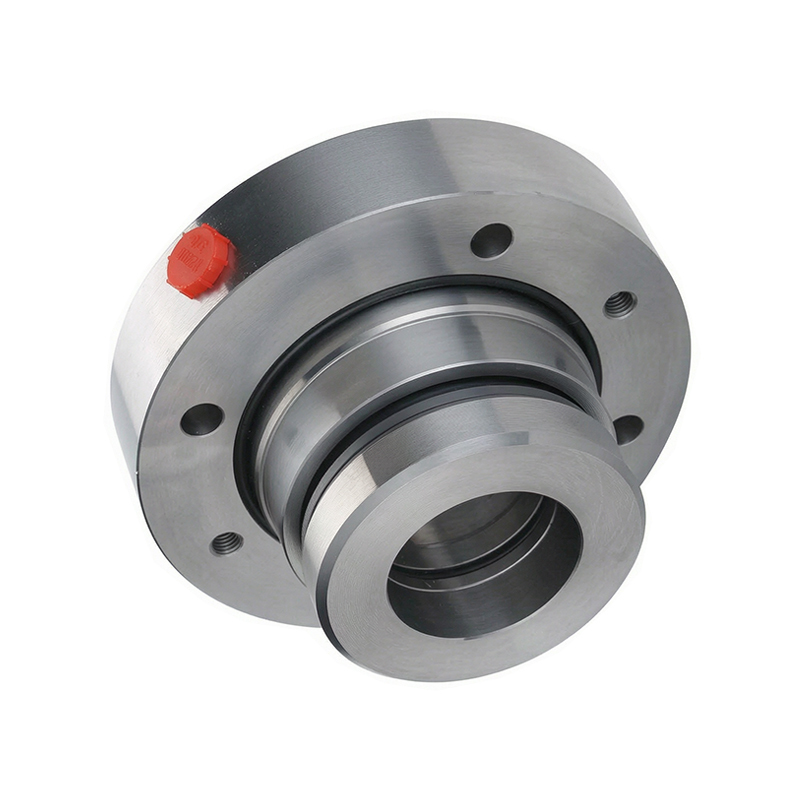

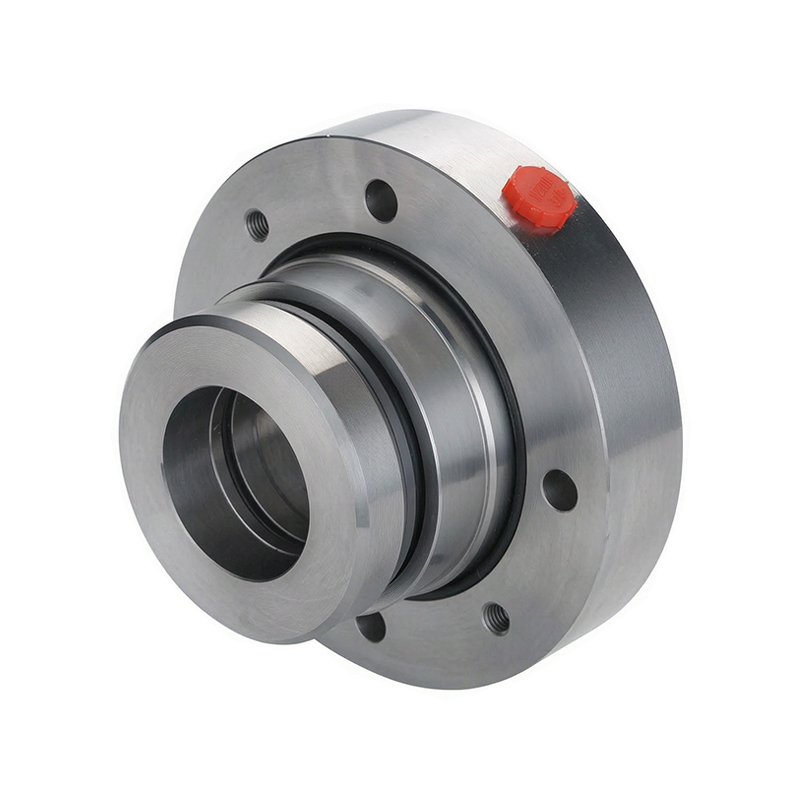

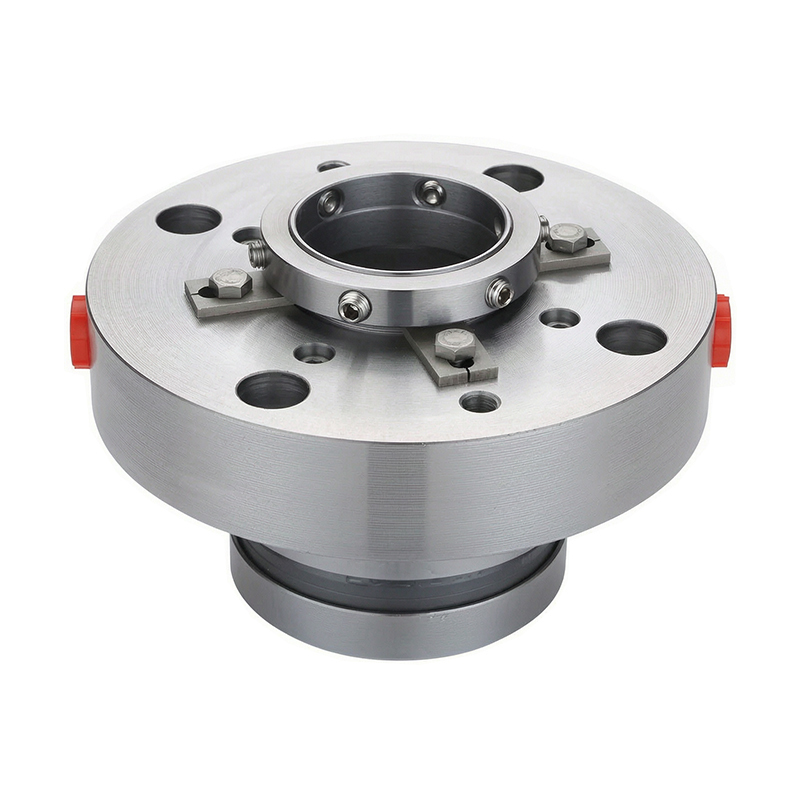

Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps
Specifications
Materials :
SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts)
Delivery Time :
15 working days
Structure :
Single-End
Model Number :
Type KHJ
Temperature :
-20 ~ 130 ºC
MOQ :
1pc
Packaging Details :
Carton
Mediums :
Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid capacity: 30% or less.
Supply Ability :
1000000/Month
Linear Speed :
10 m/s or less
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Specification :
Inner Diameter: 35 mm to 170 mm
Certification :
ISO9001
Model NO. :
KHJ
Brand Name :
BESTSEAL
Pressure :
0 ~ 1.2 MPa
Place of Origin :
CHINA

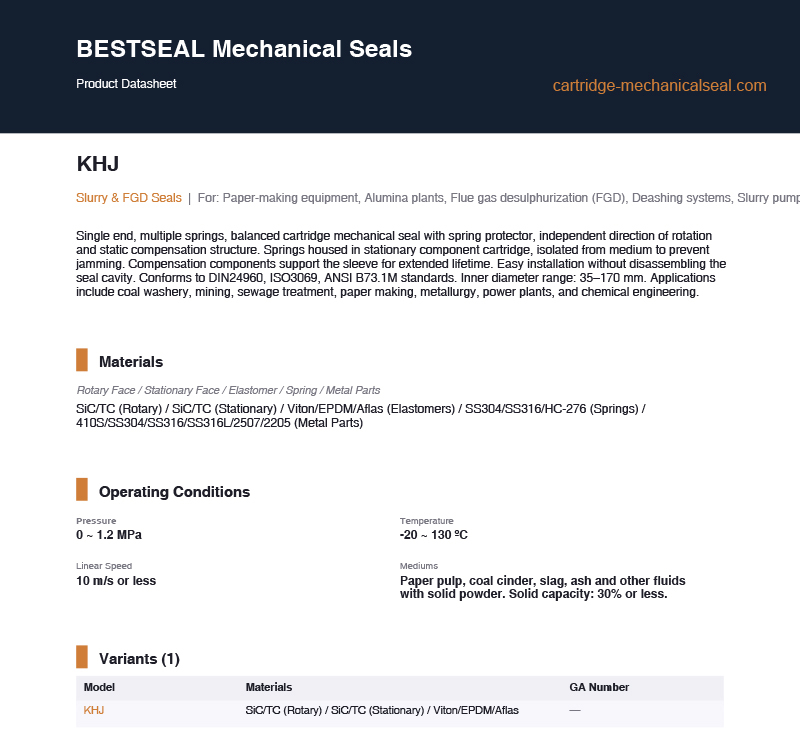

Description

Type KHJ Single Cartridge Mechanical Seal for Kingda Slurry FGD Pumps

KHJ

For: Paper-making equipment, Alumina plants, Flue gas desulphurization (FGD), Deashing systems, Slurry pumps (original seal for Kingda slurry pumps)

Single end, multiple springs, balanced cartridge mechanical seal with spring protector, independent direction of rotation and static compensation structure. Springs housed in stationary component cartridge, isolated from medium to prevent jamming. Compensation components support the sleeve for extended lifetime. Easy installation without disassembling the seal cavity. Conforms to DIN24960, ISO3069, ANSI B73.1M standards. Inner diameter range: 35–170 mm. Applications include coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts)

Model Materials GA
KHJ SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts) —

Pressure: 0 ~ 1.2 MPa

Temperature: -20 ~ 130 ºC

Linear Speed: 10 m/s or less

Mediums: Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid capacity: 30% or less.

Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
