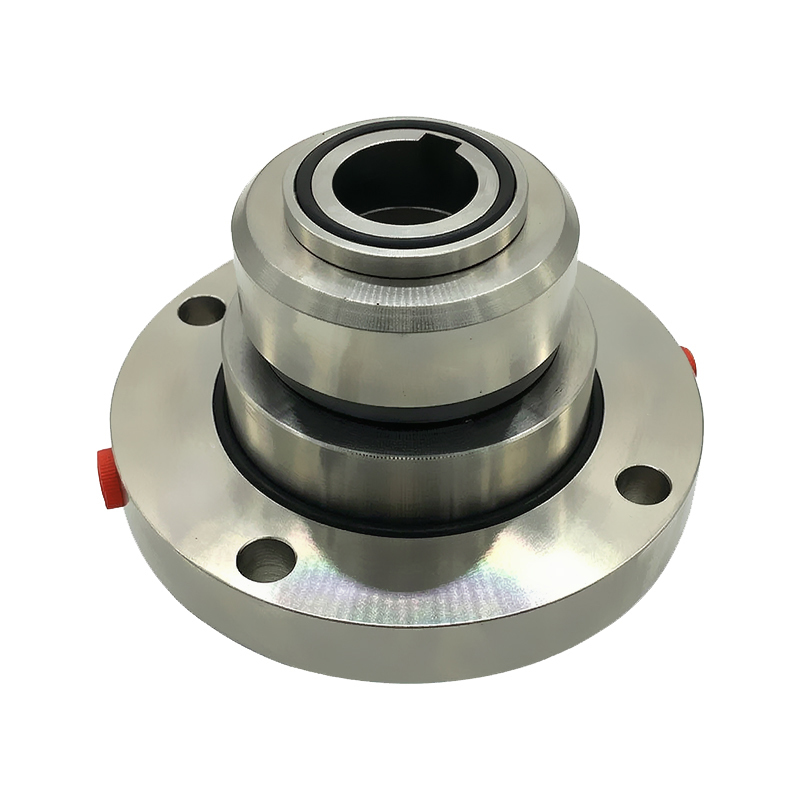

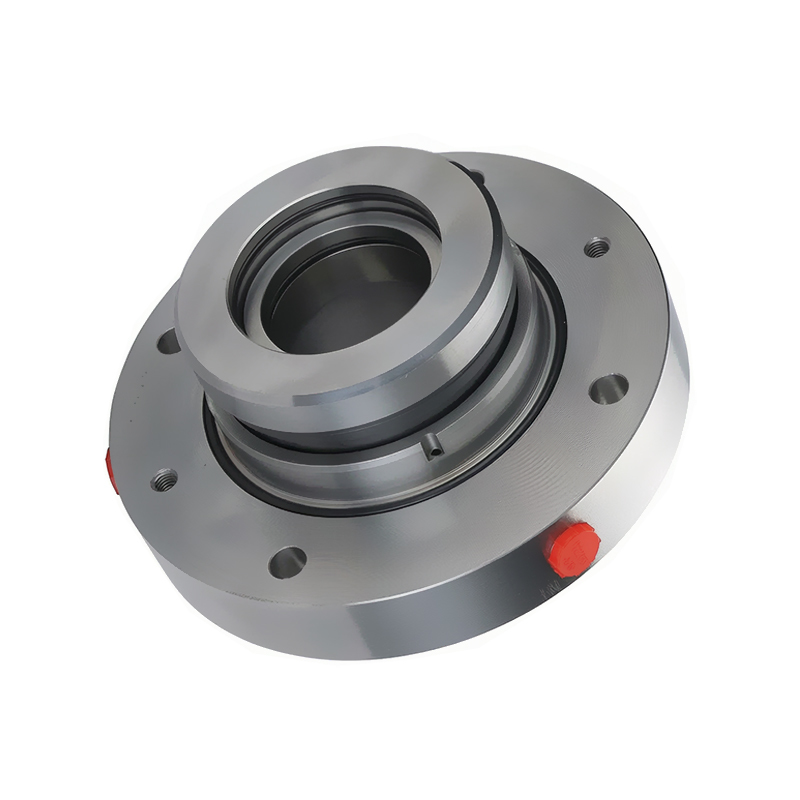

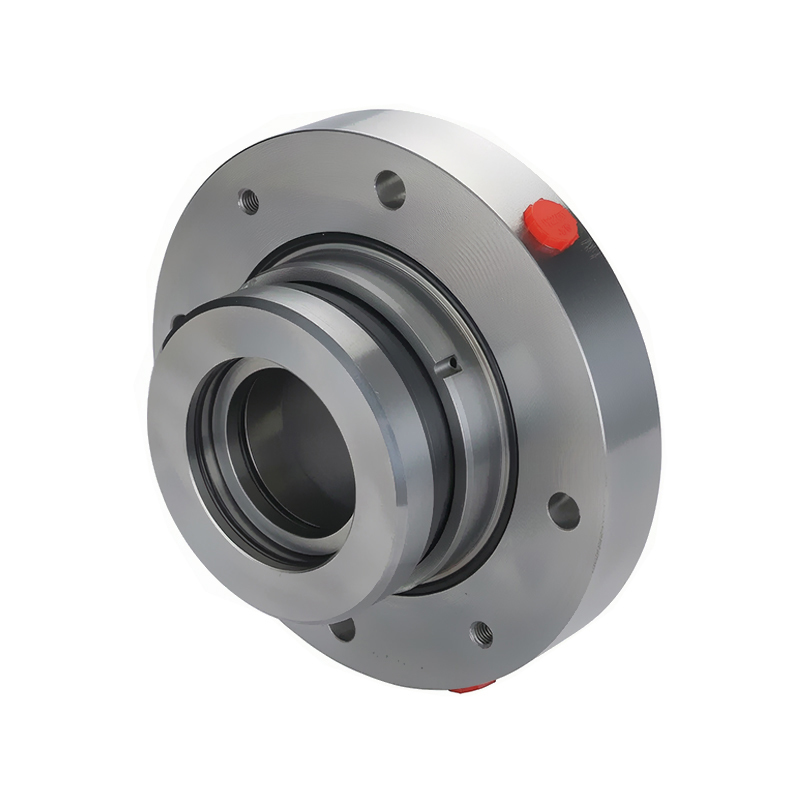

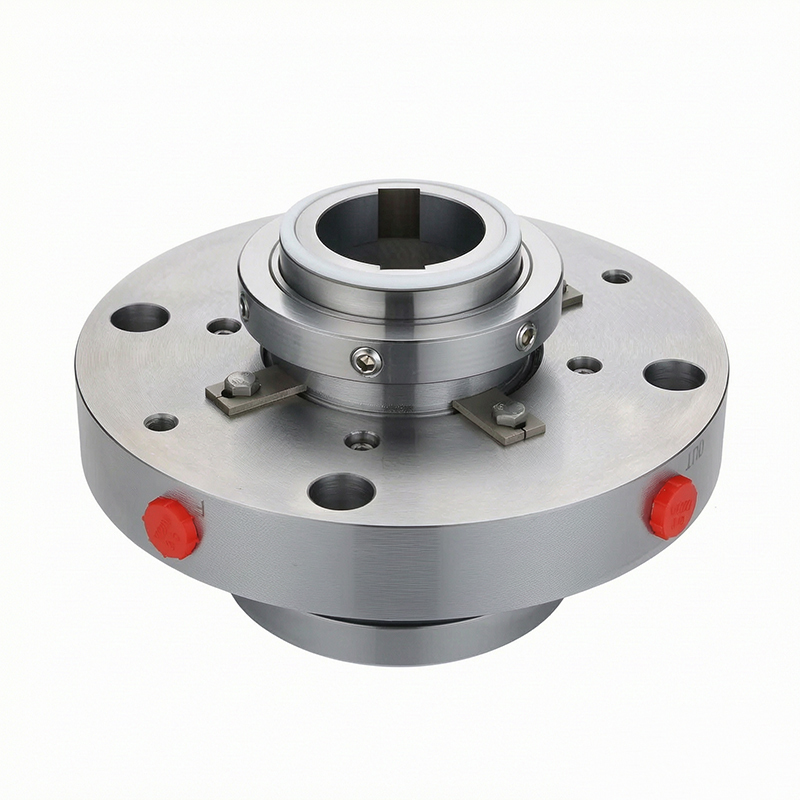

KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
Specifications
Delivery Time :
15 working days
Model Number :
Type KGJ
Temperature :
-20 ~ 130 ºC
Supply Ability :
1000000/Month
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Certification :
ISO9001
Linear Speed :
10 m/s or less
MOQ :
1pc
Packaging Details :
Carton
Materials :
SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts)
Brand Name :
BESTSEAL
Pressure :
0 ~ 1.2 MPa
Place of Origin :
CHINA
Mediums :
Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid capacity: 30% or less.
Description

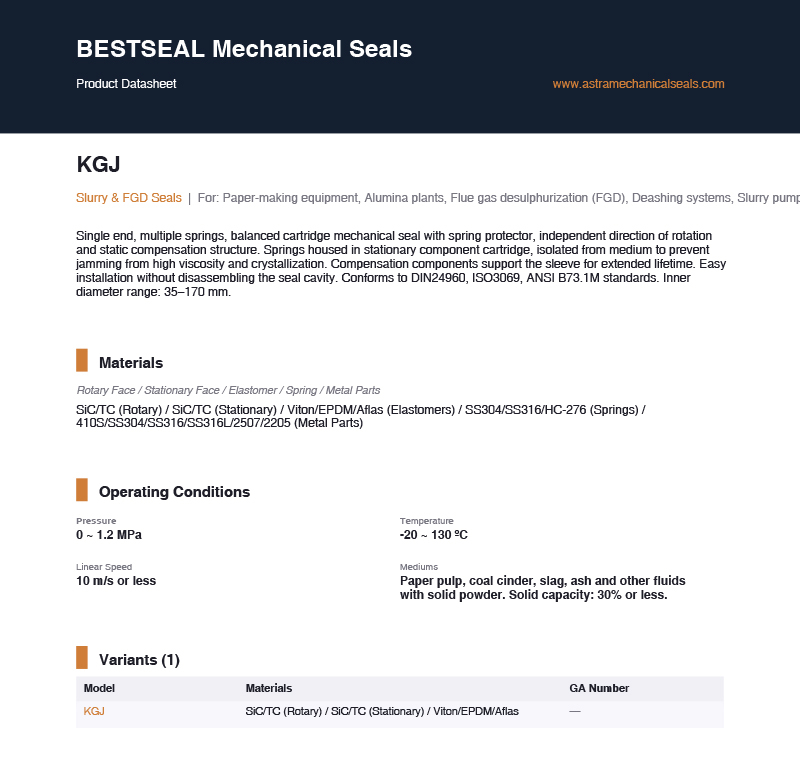

KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps

KGJ

For: Paper-making equipment, Alumina plants, Flue gas desulphurization (FGD), Deashing systems, Slurry pumps (original seal for Kingda slurry pumps)

Single end, multiple springs, balanced cartridge mechanical seal with spring protector, independent direction of rotation and static compensation structure. Springs housed in stationary component cartridge, isolated from medium to prevent jamming from high viscosity and crystallization. Compensation components support the sleeve for extended lifetime. Easy installation without disassembling the seal cavity. Conforms to DIN24960, ISO3069, ANSI B73.1M standards. Inner diameter range: 35–170 mm.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts)

Model Materials GA
KGJ SiC/TC (Rotary) / SiC/TC (Stationary) / Viton/EPDM/Aflas (Elastomers) / SS304/SS316/HC-276 (Springs) / 410S/SS304/SS316/SS316L/2507/2205 (Metal Parts) —

Pressure: 0 ~ 1.2 MPa

Temperature: -20 ~ 130 ºC

Linear Speed: 10 m/s or less

Mediums: Paper pulp, coal cinder, slag, ash and other fluids with solid powder. Solid capacity: 30% or less.

Customization Available: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress
  • BESTSEAL Cartridge Mechanical Seals
  • Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days

    KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps

    KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps

    KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps

    KGJ Single Cartridge Mechanical Seal for Slurry FGD Chemical Pumps
