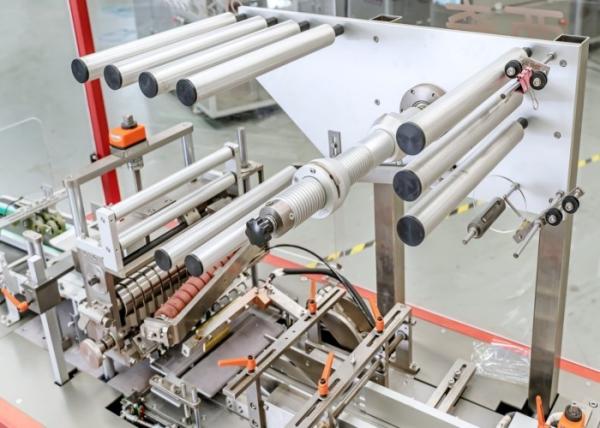

5kw Servo Cellophane Box Wrapping Machine , Lotion Over Wrapper Machine
5kw Servo Cellophane Box Wrapping Machine , Lotion Over Wrapper Machine
5kw Servo Cellophane Box Wrapping Machine , Lotion Over Wrapper Machine
5kw Servo Cellophane Box Wrapping Machine , Lotion Over Wrapper Machine
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-SW320
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 set/month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Name :
Toothpaste Automatic Overwrapping Machine
Wrapping mode :
single wrap
Speed :
40-80pcs/min
Available box dimension :
(50-220) mm × (25-110) mm × (15-60) mm
Sealing type :
flat sealing
Film feeding mode :
servo feeding
Power :
5kw
Voltage :
220v/380v
Optional :
safe door sensor, ironing machine
Application :
cigarette, toothpaste, coffee
Description

Lotion Box Automatic Overwrapping Machine with Servo Feeding Film

Overwrapping Machine Introduction

The overwrapping machine is an End-of-Line Packaging Machine. It groups cartons (or similarly shaped objects) together or stacks them in bundles, and tightly wraps them in the film leaving excess material at either end. The excess film at the ends of the bundle is then folded and sealed.

Technical Parameter

Model XQ-SW320
Packing Size (50-220) mm × (25-110) mm × (15-60) mm
Production Capacity 40-80 packs / min
Total Power 5kw
Working Voltage 220V
Air Consumption 5-8L/min
Air Compressure 0.4-Mpa
Machine Weight 500kg

Machine Principle

5kw Servo Cellophane Box Wrapping Machine , Lotion Over Wrapper Machine

Overwrapping Machine Features

Model:XQ-SW320 40-80pcs/min High Speed Toothpaste Automatic Overwrapping Machine with CAM Feeding Film

1. Anti-counterfeiting easy to pull wire.

2. The equipment automatically sends and cuts the film, the automatic wrapping, the automatic sealing, the automatic pulling belt, the speed, the length is adjustable continuously, may pack the different specification product.

3. The cylinder and CAM are combined to drive; The electric cabinet and equipment are equipped with lighting.

4. The technical indicators of the whole machine meet the requirements of GMP certification and industry standards.

Packing Material Requirements

Packaging material

BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm

Width: according to box size

heat-seal temperature: 100℃-150℃
Drawstring

Self-adhesive

A: width: 1.2-3mm

B: breaking strength: 10N-15N

C: thermal shrink film: ≤2.5℅

D: diameter: 35mm

E: heat-seal temperature: 100℃-150℃
Packing products The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc.
