Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-SW350
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 set/month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Name :
Stationery Automatic Overwrapping Machine
Wrapping mode :
single wrap/bundle wrap
Speed :
20-55pcs/min
Available box dimension :
L50-300mm, W35-200mm, H20-100mm
Sealing type :
flat sealing
Film feeding mode :
cam feeding
Power :
4kw
Voltage :
220v 50Hz
Optional :
cursor location
Application :
face mask, pressed powder
Description

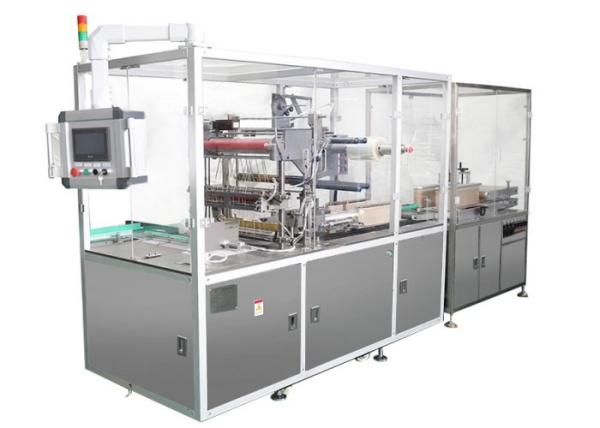

Rubber Stationery Automatic Overwrapping Machine Tear Tape Equipped

Product Introduction of Overwrapping Machine

An overwrapping machine takes a length of heat sealable film from a roll and folds it around a product. This product can be a single item or a bundle. The folded film is closed by means of heated sealing devices.

SICI AUTO developed XQ-SW350 has the features of large range packaging specifications, widely applies to medicine, food, health care products, stationery, commodity and video products industry. Automatic single packaging of varies box products, or assembly packaging of multi box.

Technical Parameter

Model: XQ-SW350

Product capacity 20-55 packs/min
Packing size (50-300) *(35-200)* (20-100)mm
Power supply 220V 50HZ
Power 4KW
Main motor power 0.75kw
Main motor working pressure 0.4Mpa
Dimension 2200 X 950 X 1800mm
Conveyor size 1500 X 300 X 900mm
Weight 750 kg

Machine Principle

Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping

Overwrapping Machine Features

Model:XQ-SW350 Medicine Box Bundle Wrap Automatic Overwrapping Machine with Ironing Machine

1. Stainless steel 304 machine body and organic glass cover.
2. Flexible size ranges and quick change over mould.
3. GMP standard alumina working plate, flatting and smoothing.
4. Tear tape, ink printer, box turning over and stacking are optional.
5. Easy to change the moulds for different sizes! (within 15 miniutes)

Packing Material Requirements

Packaging material

BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm

Width: according to box size

heat-seal temperature: 100℃-150℃
Drawstring

Self-adhesive

A: width: 1.2-3mm

B: breaking strength: 10N-15N

C: thermal shrink film: ≤2.5℅

D: diameter: 35mm

E: heat-seal temperature: 100℃-150℃
Packing products The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc.

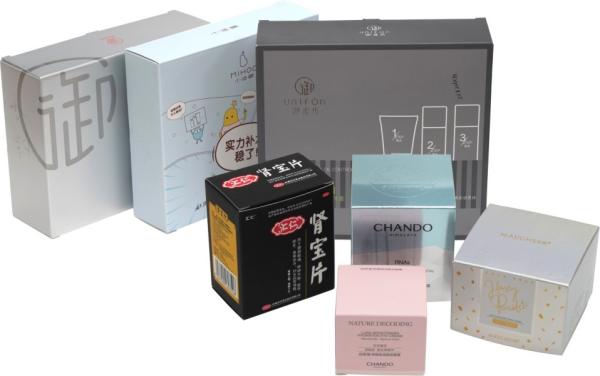

Samples

Rubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over WrappingRubber Stationery Cellophane Packaging Machine Tear Tape Equipped Over Wrapping
