Vertical bottom Sticker Labeling Machine

• Product Description

Vertical Bottom labeling machine is a new type of labeling equipment, and it is also a modern automatic labeling machine. The labeling machine is mainly for perfect sticking of the bottom label of the product. Most of the labeling machines need to turn the product upside down to complete the sticking operation of the product label. The bottom labeling machine is not used. The bottom labeling machine is to allow the products to be pasted on the bottom of the products under normal placement.

The automatic bottom plane labeling machine is suitable for labeling the bottom plane, curved surface and concave surface of the product. The labeling accuracy is as high as ±1mm. It is mainly used for precision labeling of daily chemical and food products, such as chocolate packaging boxes and cosmetics. Anti-counterfeiting label on the bottom of the box, etc. High labeling accuracy.

• Technical Parameter

Label length: 10-300mm
Label height: 10-120mm
Labeling accuracy: ±1mm
Labeling speed: 0-100 pieces/min (related to product size, label size, manual placement speed)
Machine size: about 2000*600*1500mm
Power supply and power: 220V 50-60Hz

• Working Process

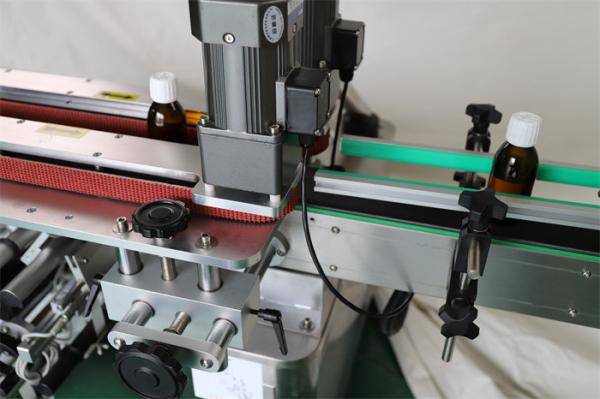

The automatic bottom labeling machine can be used manually or automatically connected to the production line. Connecting the production line allows the products to flow from the production line to the automatic bottom labeling machine automatically, and the equipment is automatically transported to the labeling mechanism. In order to ensure the stability and quality of the labeling, the automatic bottom labeling machine also adds clips on both sides of the labeling mechanism. The tight conveying mechanism can ensure that the product is a stable product during labeling. It seems that there is only one second. During this time, the machine carries out a series of work, and the label peeling mechanism sends out the label at the same time. At this point, the labeling process has been completed.

• Product Samples

Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
Applicable products: regular rectangular and square objects, such as boxes, plates, etc.
Application industry: widely used in packaging, food, toys, daily chemicals, electronics, medicine and other industries.
Application examples: labeling on the top and bottom of the packaging box, labeling on the top and bottom of the stationery box, etc.
