200pcs/Min Horizontal Round Bottle Labeling Machine Pharma Automatic Sticker Pasting
200pcs/Min Horizontal Round Bottle Labeling Machine Pharma Automatic Sticker Pasting
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-TBP
Certification :
CE
Place of Origin :
Wuxi,China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100 Units/ month
Delivery Time :
30 work days
Packaging Details :
Standard Wooden Case for Export
Name :
Horizontal Sticker Labeling Machine
Automatic Grade :
Automatic
Application :
Food, beverage, Stationery, Pharma, Cosmetics
Available product :
Round Objects
Function :
Labeling
Label type :
Printed
Label Qty :
single side
Label position :
Side
Speed :
1-200 pcs/min
Option :
Coding, printing...etc.
Description

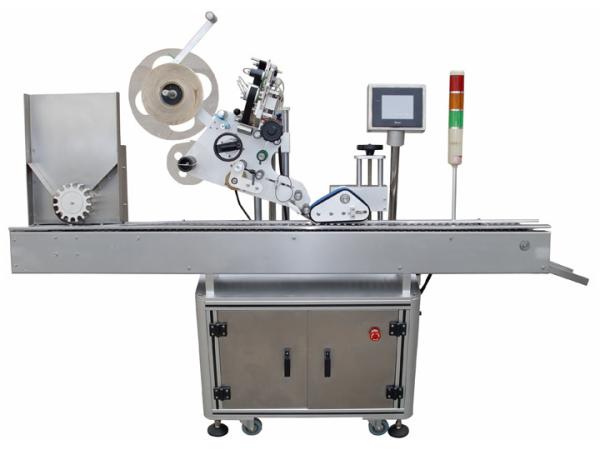

Automatic Horizontal Sticker Labeling Machine for Round Objects

  • Product Description

XQ-TBR-W horizontal self-adhesive labeling function adapts to various specifications, color, material of the round bottle, so the machine is widely used in medicine, food, light industry, beverage, daily chemical products and other industries.

  • Technical Parameter
Model XQ-TBR-W
Power 1kw
Labeling speed 0—200pcs/min (Depending on the size of the bottle and the length of the label)
Suitable label Adhesive sticker, opaque label
Bottle diameter Φ10-25mm ( standard machine, special size can be customized)
Bottle height 25-150mm ( standard machine, special size can be customized)
Label height 10—60mm
Label length 15—75mm
Labeling accuracy ±5mm(depends on the bottle hardness and round degree)
Roll inner diameter 76mm
Roll outside diameter 300mm
Power supply 220V 50/60hz (Can be customized)
Packed machine weight 150kg
Wooden case dimension 1800*700*1400mm

  • Product Features

1. Stick the label to the designated position of the bottle automatically;
2. Print batch number, production date and output count.
3. In case of bottle shortage, the control system can ensure that no label is sent, effectively prevent label waste.
4. Can make stepless speed regulation according to the production characteristics of each factory, so as to ensure that the machine can be used alone or used in line with other machines.
5. The pressing parts can make the bottle with uneven surface get satisfactory labeling effect.
6. Automatic bottle feeding device is optional.

  • Product Samples

200pcs/Min Horizontal Round Bottle Labeling Machine Pharma Automatic Sticker Pasting200pcs/Min Horizontal Round Bottle Labeling Machine Pharma Automatic Sticker Pasting
