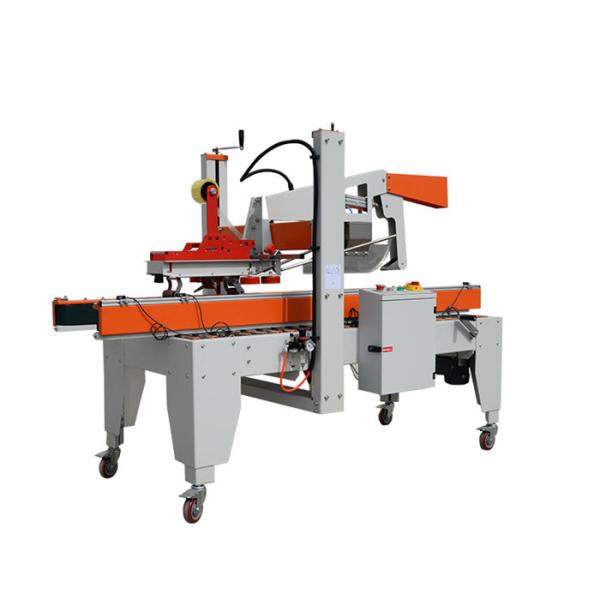

Flap Folding Carton Case Sealer , 70mm Automatic Case Sealer
Flap Folding Carton Case Sealer , 70mm Automatic Case Sealer
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-FX215
Certification :
CE
Place of Origin :
Wuxi,China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
100 Units/ Month
Delivery Time :
30 days
Packaging Details :
Standard wooden case for export
Name :
Automatic Flap Folding Tape Carton Case Sealer
Available Carton Size :
150-500mm( L)*120-500mm(W)*130-500mm(H)
Size Adjustment :
Manual
Belt Driven :
Side belt drive
Flap folding :
Automatic
Application :
Packaging and printing, Food, Express, Warehouse etc.
Tape position :
top&bottom sealing
Sealing way :
Tape
Tape distance :
70mm
Description

Automatic Taper Machine / Carton Case Sealer with Auto flap folding

  • Product Desription

Automatic Taper Machine / Carton Case Sealer with Auto flap folding is suitable for automatically folding the top carton flap cover of a certain size carton and then sealing the top and bottom with self-adhesive tape for sealing type “—” . In addition to manually adjusting for different carton size, it can automatically fold the carton top flap cover and tape seal box.

This equipment can be wired or stand-alone operation, automatically fold the flap, with the middle of the upper and lower tape sealing, one- time completion of the tape device performance is precise and strong, smooth operation, long service life and good stability standard equipment specifications, according to need For equipment wideni ng and heightening, the standard table height is 570mm (other requirements can be customized), advanced technology is used to manufacture, and the structure is firm and durable.

  • Technical Parameter
TECHNICAL SPECIFICATION
Applicable carton size 150-500mm( L)*120-500mm(W)*130-500mm(H)
Conveying speed 20 m / min
Equipment size 1800mm(L)*980mm(W)*1420mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.4kw
Apply pressure 6kgf/cm2
Tape width 48/60/75mm(Alternative use)
Equipment weight 236kg

  • Working Principle

Flap Folding Carton Case Sealer , 70mm Automatic Case Sealer

  • Product Features

1. High-strength gripping PVC tape is used to drive both sides of the carton, the drive runs smoothly, and the tape is sealed to the center;
2. It can be adjusted according to the size of the carton and realize the folding of the front, rear and two sides of the upper cover and the action of the upper and lower boxes in sequence;
3. The use of pneumatic devices to realize the automatic folding of the upper back cover and the two side covers of the carton is the first in China;
4. The tape is sealed flat, firm, standardized and beautiful, and will not tear the box.

5. Side belt drive, suitable for narrow cartons.

  • Product Samples

Flap Folding Carton Case Sealer , 70mm Automatic Case Sealer
